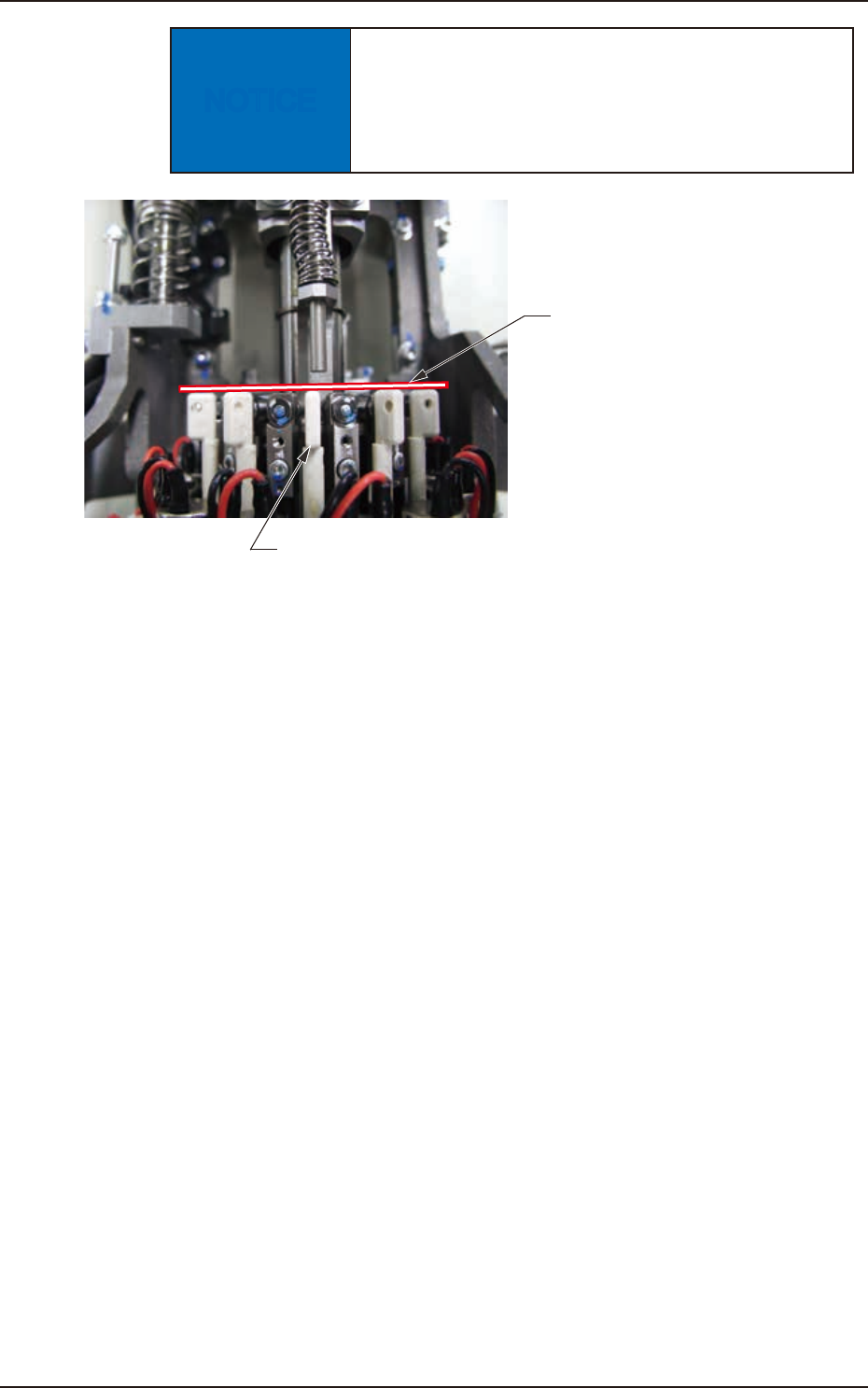

NOTICE
Make sure of the lter folder insertion direction, and
then insert the folder securely to the end.
Make sure that the lter folder upper surface is
aligned with the top block upper surface.
Filter Holder
Make sure that the height
of the filter folder is aligned
with that of the top block.
F4A29
4.7 Head Section
4OM-1751
1-371304-001

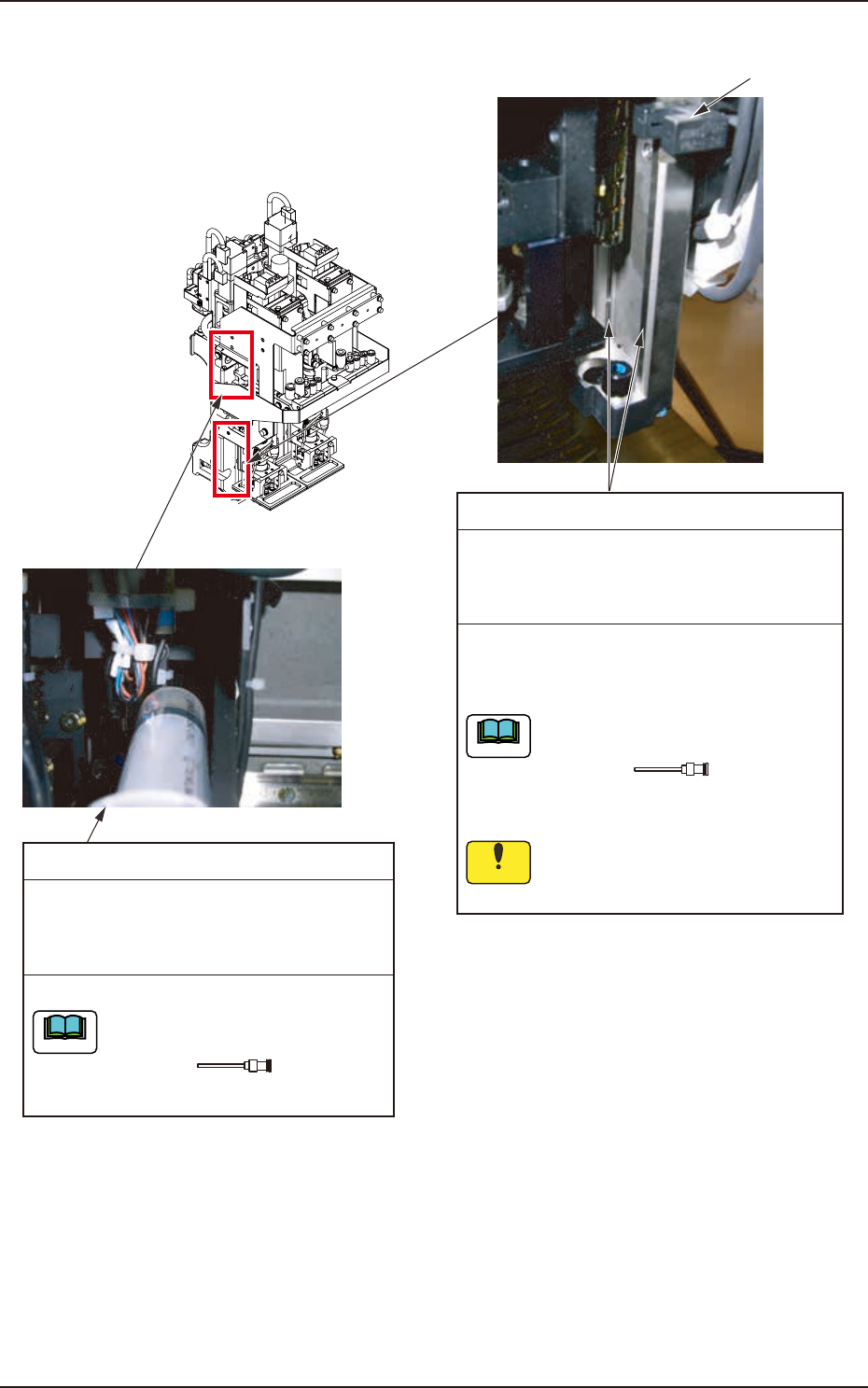

Multi-Functional Head
Ball Screw (2 locations)
No.49
Every 3 Months Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Linea Guide (2 locations)
Sensor
No.49
Every 3 Months Lubrication
(DAPHNE GREASE MP No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Grease should be applied every 3 months after
the initial month.
Notice
Apply grease, taking care that the
grease does not stick to the sensor.
Multi-Functional Head F4A30
4.7 Head Section
4OM-1751
1-38
Note

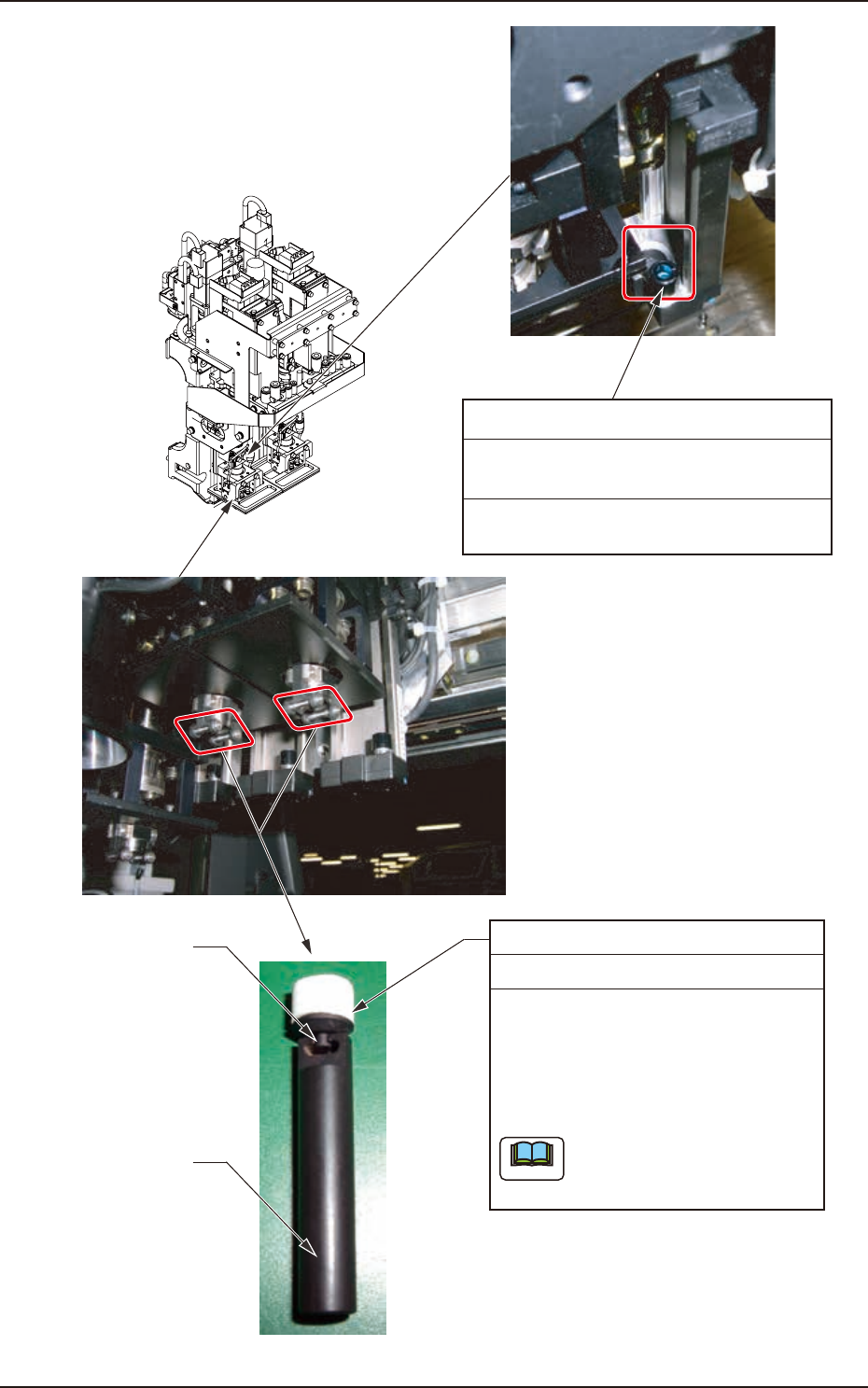

Vacuum Filter
Filter Holder
Filter Attachment /
Detachment Jig
Pan (2 locations)
When the filter is changed,
attach or detach the jig
vertically.
Pull down the filter holder to remove.
Use the filter mounting jig to change the
vacuum filter.
After changing, insert the filter holder
into the shaft located at the center of the
nozzle holder.
Every 3 Months Cleaning
Every 3 Months Change
Required Time: 3 minutes
Wipe out old grease in the pan using an oiled
rag.
F4A31
1304-001
