4OM-1751 1-31 1304-001 4.6 Cutter Section 4.6.1 Cutter Unit (Four Locations) Oiling Cycle : Every 3 Months (Required Time : 10 minutes) Grease : MOLYNOC GREASE AP1 Cutter Box F4A23 Procedure (1) Remove the front cover . …

4OM-1751

1-301304-001

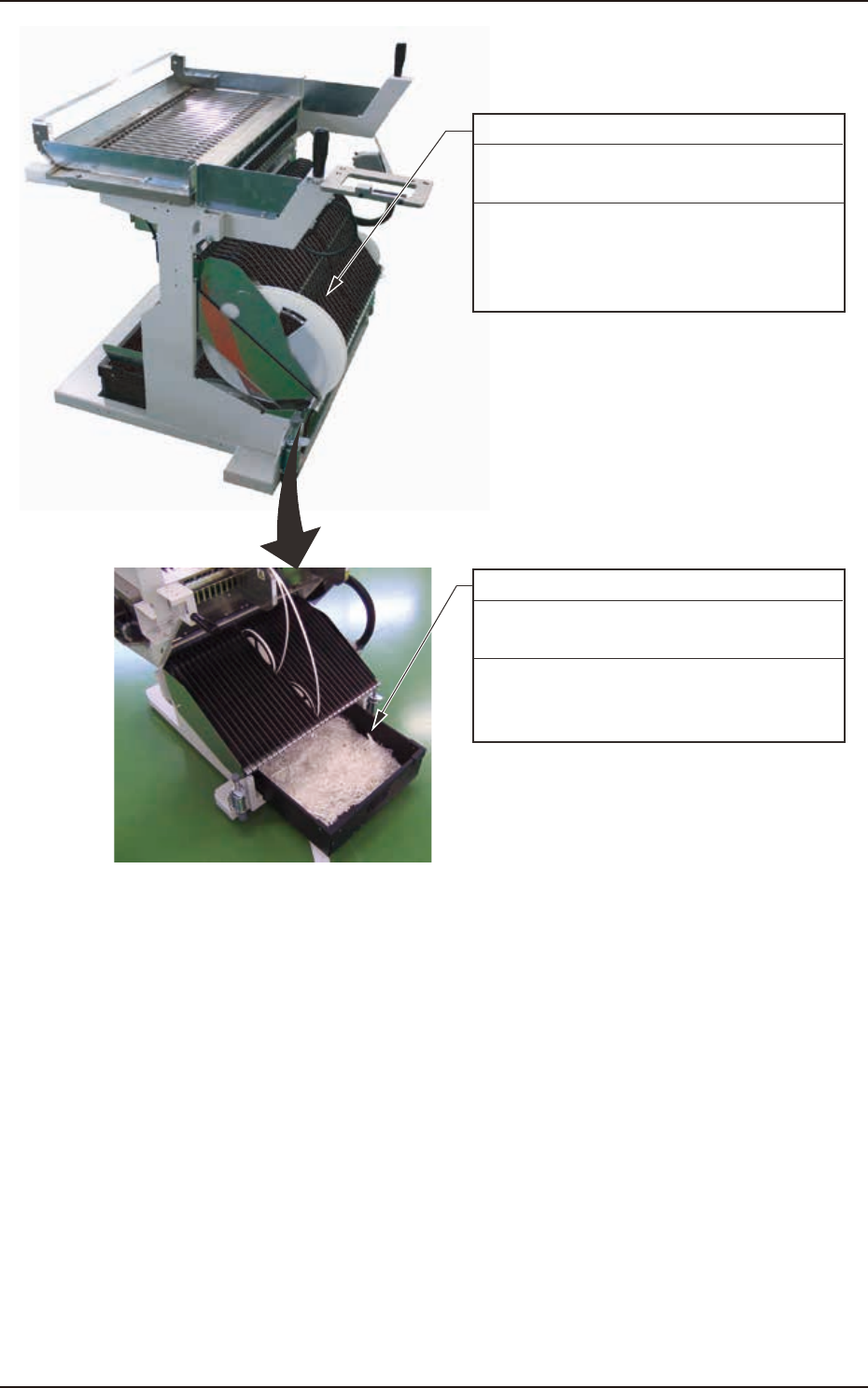

Scrap Box

Every Day Cleaning

Required Time:1minute

When the scrap box is filled with the tape with

no components, draw the scrap box out and

remove such tape.

Reel Box

Every Day Cleaning

Required Time:5minutes

Clean the dust and debris at the bottom of the

reel box using a vacuum cleaner, or open the

cover and drop any dust and debris into the

scrap box.

F4A22

4.5 Feeder Cart Section

4OM-1751

1-311304-001

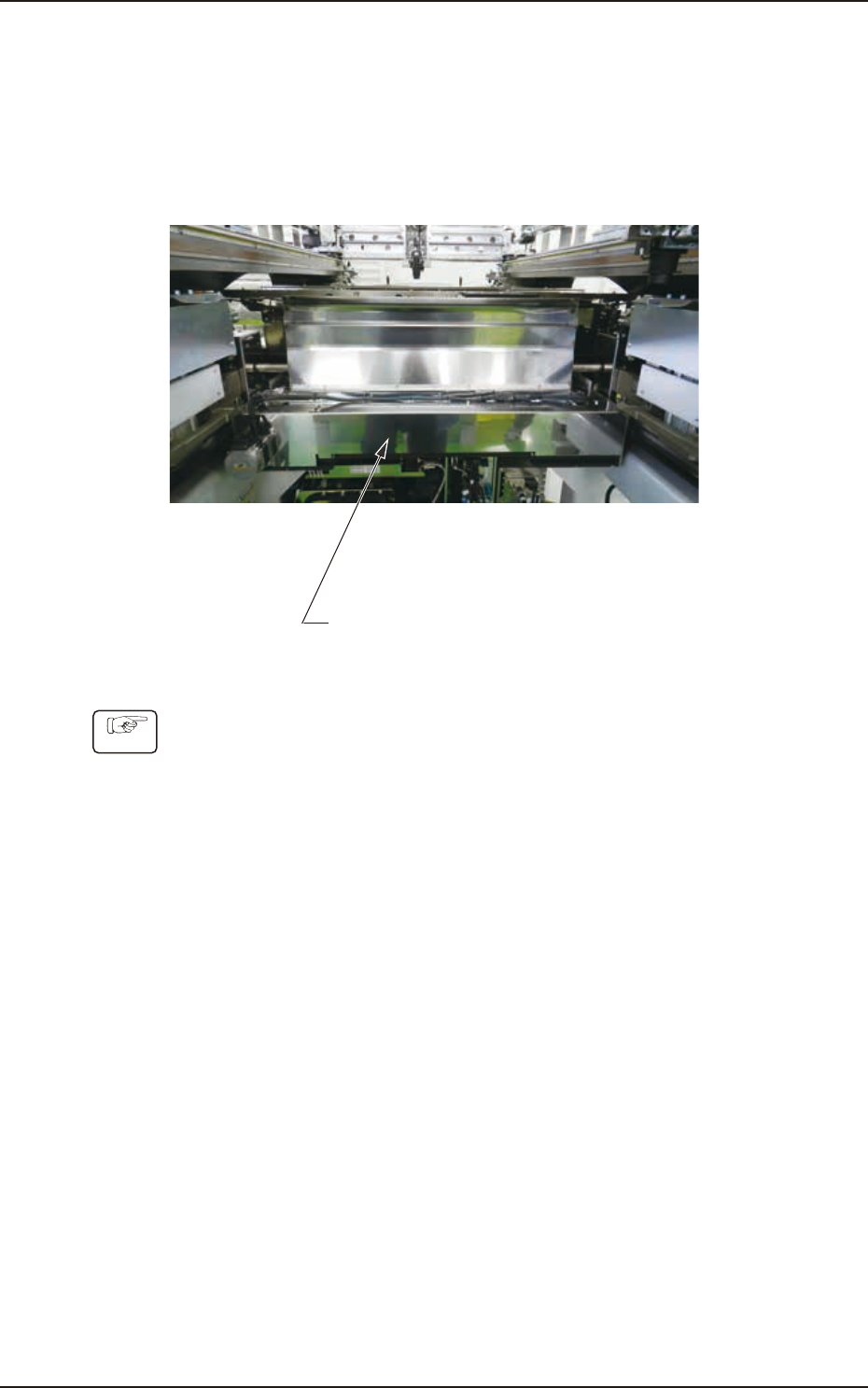

4.6 Cutter Section

4.6.1 Cutter Unit (Four Locations) Oiling

Cycle : Every 3 Months (Required Time : 10 minutes)

Grease : MOLYNOC GREASE AP1

Cutter Box

F4A23

Procedure

(1) Remove the front cover.

(2) Supply about 5cc of new grease from the grease nipple using the grease gun.

4.6 Cutter Section

4OM-1751

1-321304-001

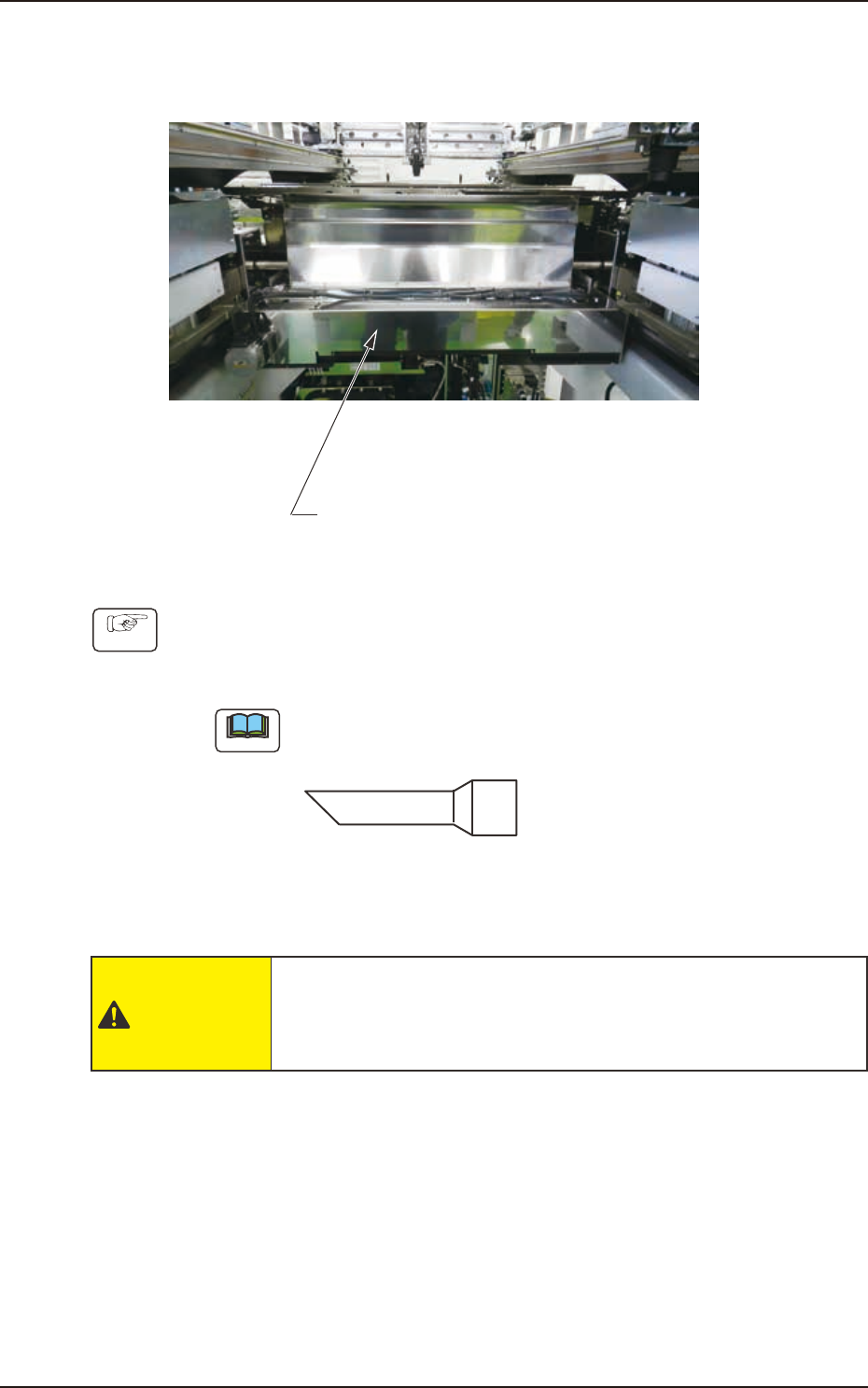

4.6.2 Cutter Unit Inside Oiling

Cycle : Every 3 Months (Required Time : 10 minutes)

Cutter Unit

F4A24

Procedure

(1) Remove the front cover.

(2) Clean the debris and dust in the cutter unit using a vacuum cleaner.

Note

Use a vacuum cleaner with a narrow air opening in the nozzle.

Narrow Air Opening in Nozzle End

(Recommended)

F4A25

CAUTION

After making sure that the air supply has been stopped and the

cutter blades are closed, start maintenance.

During maintenance, do not touch the cutter blade.

4.6 Cutter Section
