OM-1670
7
4. Pattern Program
4.1 Nozzle Stk 1, 2 data

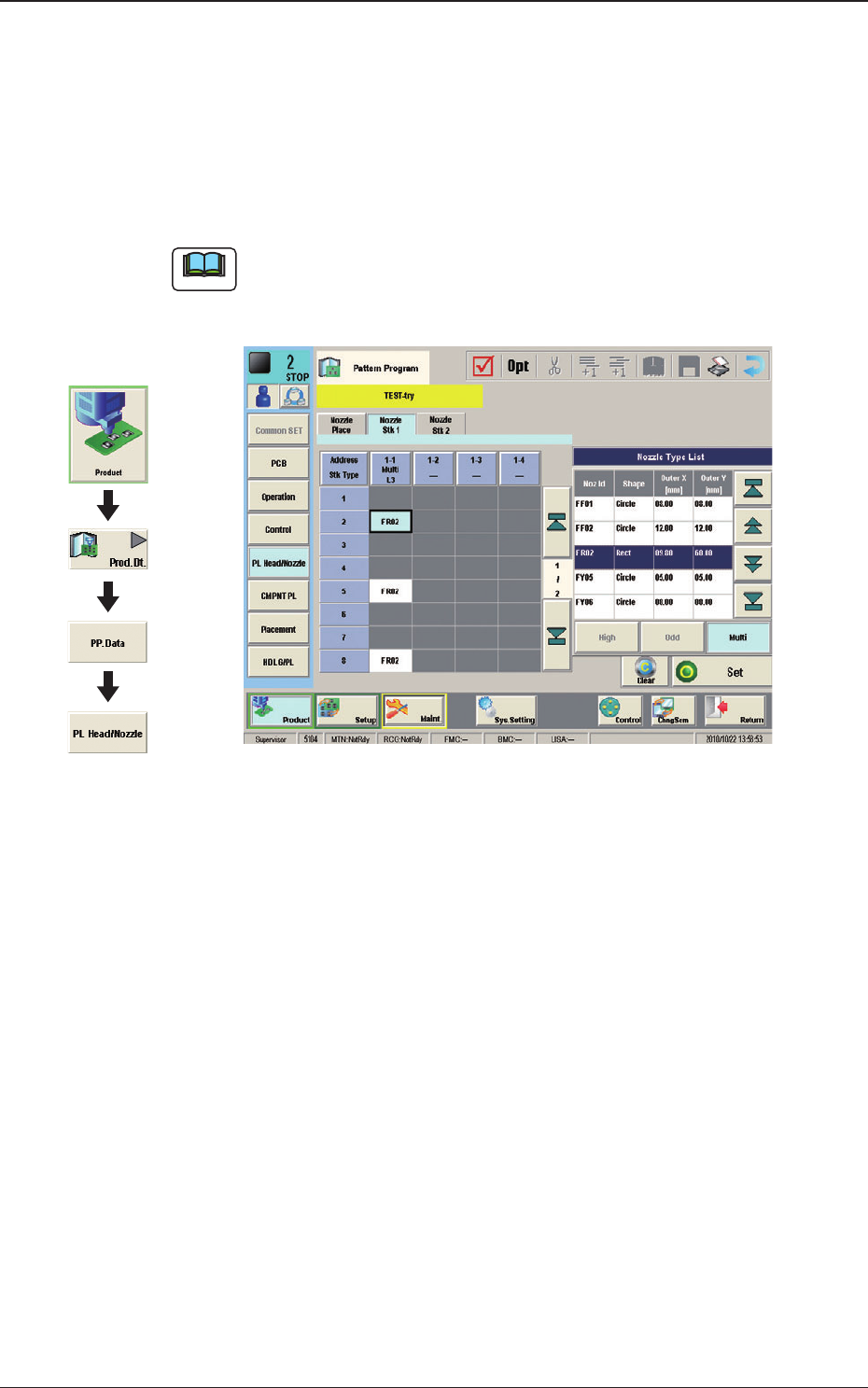

When the [Nozzle Stk 1] or [Nozzle Stk 2] tab is pressed on the "PL Head/
Nozzle" window, the following tab sheet appears.
Note
(a) When the nozzle stocker for multi-functional nozzle has been attached onto
the nozzle stocker No. 1 position, this window appears.
(b) The display in the window varies depending on the selected option.
Fig. 3 Condition where the Nozzle Stocker "L3" for
Multi-Functional Nozzles has been attached.
Graphic
Development
1011-001
4. Pattern Program
OM-1670
8
Address Stk Types 1 to 9
Using these parameters, the nozzles are housed in the specied positions
(address stocker type) in the nozzle stocker.
Multi
: 1 to 9
Multi L1
: 2,
4 to 9
Multi L2
: 2, 5, 7 to 9
Multi L3
: 2, 5, 8
Note
Because large nozzles are housed in L1, L2 and L3 stockers for multi-
functional nozzle, any addresses except for the selectable addresses, are
not used.
123456789
2456789
25789
258
Standard
L1
L2
L3
Fig. 4
1011-001
4. Pattern Program
OM-1670
9
5. "NOZ.CHG." Window
For the nozzle change, the "Overall Setup" or "Manual Setup" operation is
performed.
Note
(a) The window shows the condition where a multi-functional head is mounted
onto the head No. 1 position.
(b) The display in the window varies depending on the selected option.
[1]
[2]
Fig. 5 Condition where the Nozzle Stocker "L3" for
Multi-Functional Nozzles has been attached.
[1] "Nozzle Stocker Status Indicator" Panel
Indicated is the status of the nozzle stockers.
The background color of the "Bypassed"-specied address turns yellow.
[2] "Vacuum Nozzle Status Indicator" Field
Indicated is the status of the nozzles attached to each head.
Reference
Refer to "5. "NOZ.CHG." Window" in Chapter 6 (Volume 2) in the SIGMA-G4/
G5 Main Machine Instruction Manual for the details of the "NOZ.CHG."
window.
Graphic
Development
1011-001
5. "NOZ.CHG." Window
