OM-1670 6 3. Nozzle Stocker for Multi-Functional Nozzle Setup Procedure Pattern Program Setting Nozzle Change Setting Unit Change Setting Automatic Operation Unit Adjustment Setting Set the pattern program. Refer to &quo…

OM-1670

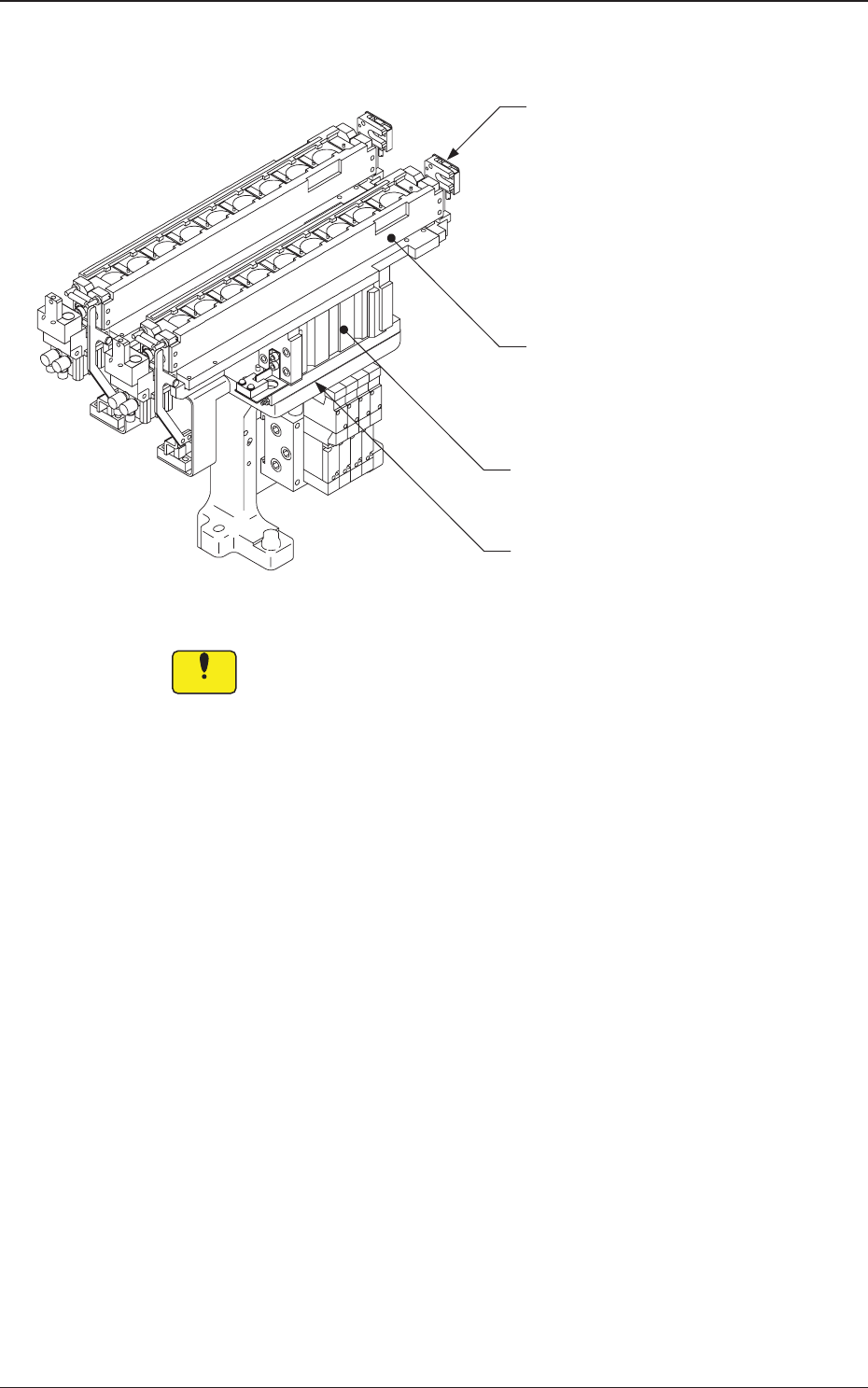

2. Rought View of Machine

Change Section of the Nozzle

Stocker for Multi-Functional Nozzle

(G -S003-09) Note b

Cylinder Section of the Nozzle

Stocker for Multi-Functional Nozzle

(GS-NM120) Note b

Nozzle Stocker for

Multi-Functional Nozzle

Unit Base

Fig. 1 Nozzle Stocker for Multi-Functional Nozzle

Notice

(a) Do not put any foreign object in the nozzle stocker section.

Otherwise, the machine will break down.

(b) Do not bring any magnetized object such as a magnet close to the

vacuum nozzles.

Otherwise, an error may occur during component picks and

placement.

is applicable to any unit of the change sections of the nozzle stocker

for multi-functional nozzle (G -S003-09/GS-NM111/1

12/113).

1011-001

2. Rought View of Machine

OM-1670

3. Nozzle Stocker for Multi-Functional Nozzle Setup

Procedure

Pattern Program Setting

Nozzle Change Setting

Unit Change Setting

Automatic Operation

Unit Adjustment Setting

Set the pattern program.

Refer to "4. Pattern Program" for details.

Refer to "5. "NOZ. CHG." window" for details.

Refer to "6. "Unit Change" window" for details.

Refer to "7. "Unit Adj." Submenu" for details.

Set the nozzle change.

Set the unit change.

Set the unit adjustment.

Reference

Fig. 2

1011-001

3. Nozzle Stocker for Multi-Functional Nozzle Setup Procedure

OM-1670

4. Pattern Program

4.1 Nozzle Stk 1, 2 data

When the [Nozzle Stk 1] or [Nozzle Stk 2] tab is pressed on the "PL Head/

Nozzle" window, the following tab sheet appears.

Note

(a) When the nozzle stocker for multi-functional nozzle has been attached onto

the nozzle stocker No. 1 position, this window appears.

(b) The display in the window varies depending on the selected option.

Fig. 3 Condition where the Nozzle Stocker "L3" for

Multi-Functional Nozzles has been attached.

Graphic

Development

1011-001

4. Pattern Program
