OM-1670 17 8.4.2 Nozzle Stocker for Multi-Functional Nozzle Nozzle Storage Section Every Month Cleaning Suck dirt and dust with a vacuum cleaner. Nozzle Stocker Sliding Section Every 3 Months Cleaning and Lubrication (DA…
OM-1670
16
8.4 Maintenance Method
8.4.1 Understanding of Maintenance Items on Each Section
Claried in this session are the spots of the nozzle stocker for multi-functional
nozzle to be maintained periodically.

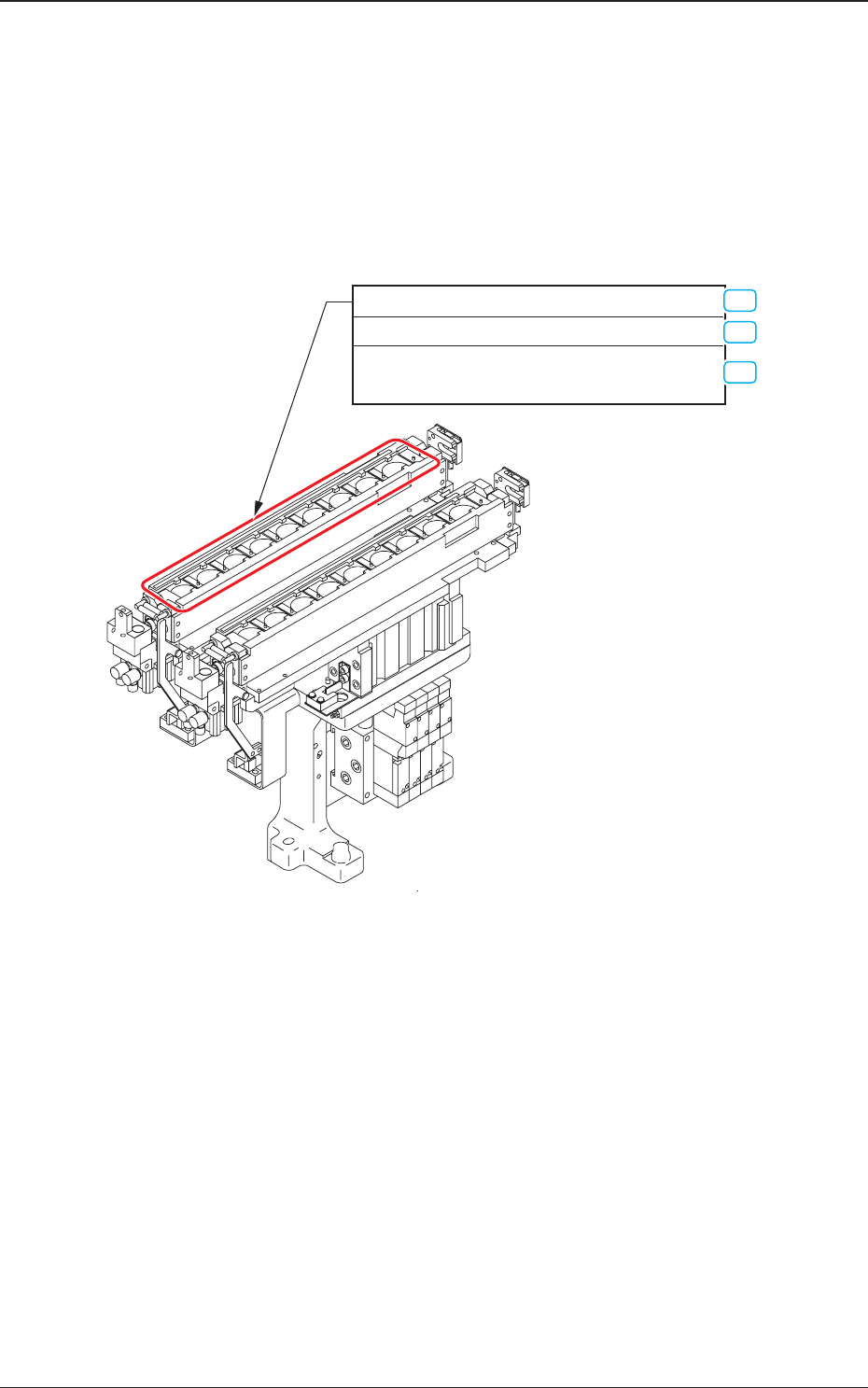

View of Inspection, Cleaning, Lubrication, and Adjustment Spots
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
[1]
[2]
[3]
Fig. 9
[1]
Maintenance Spot
[2]
Cycle and Contents of Maintenance
[3]
Details of Maintenance
1011-001
8.4 Maintenance Method
OM-1670
17

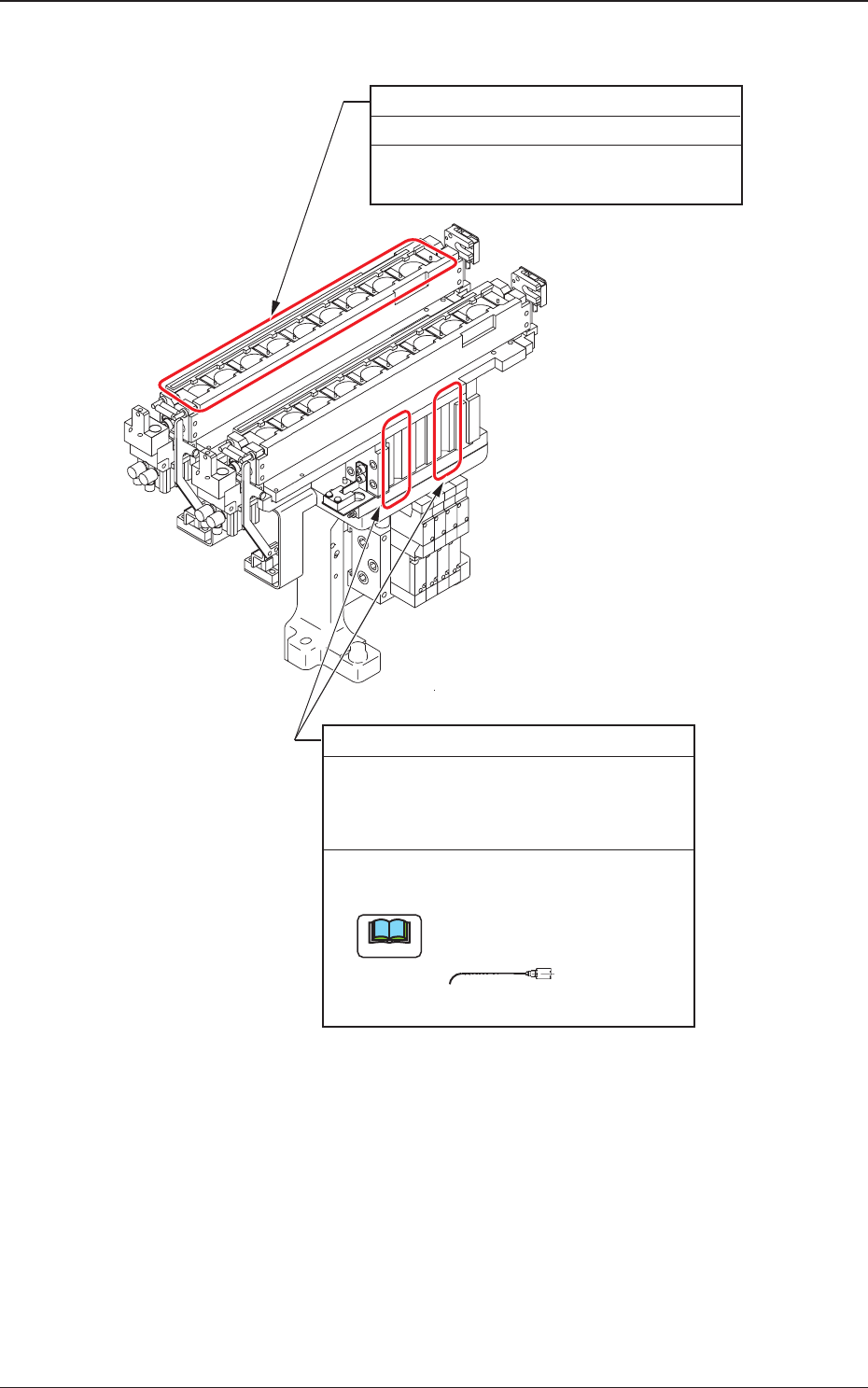

8.4.2 Nozzle Stocker for Multi-Functional Nozzle
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Nozzle Stocker Sliding Section
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
Fig. 10
1011-001
8.4 Maintenance Method
OM-1670
18

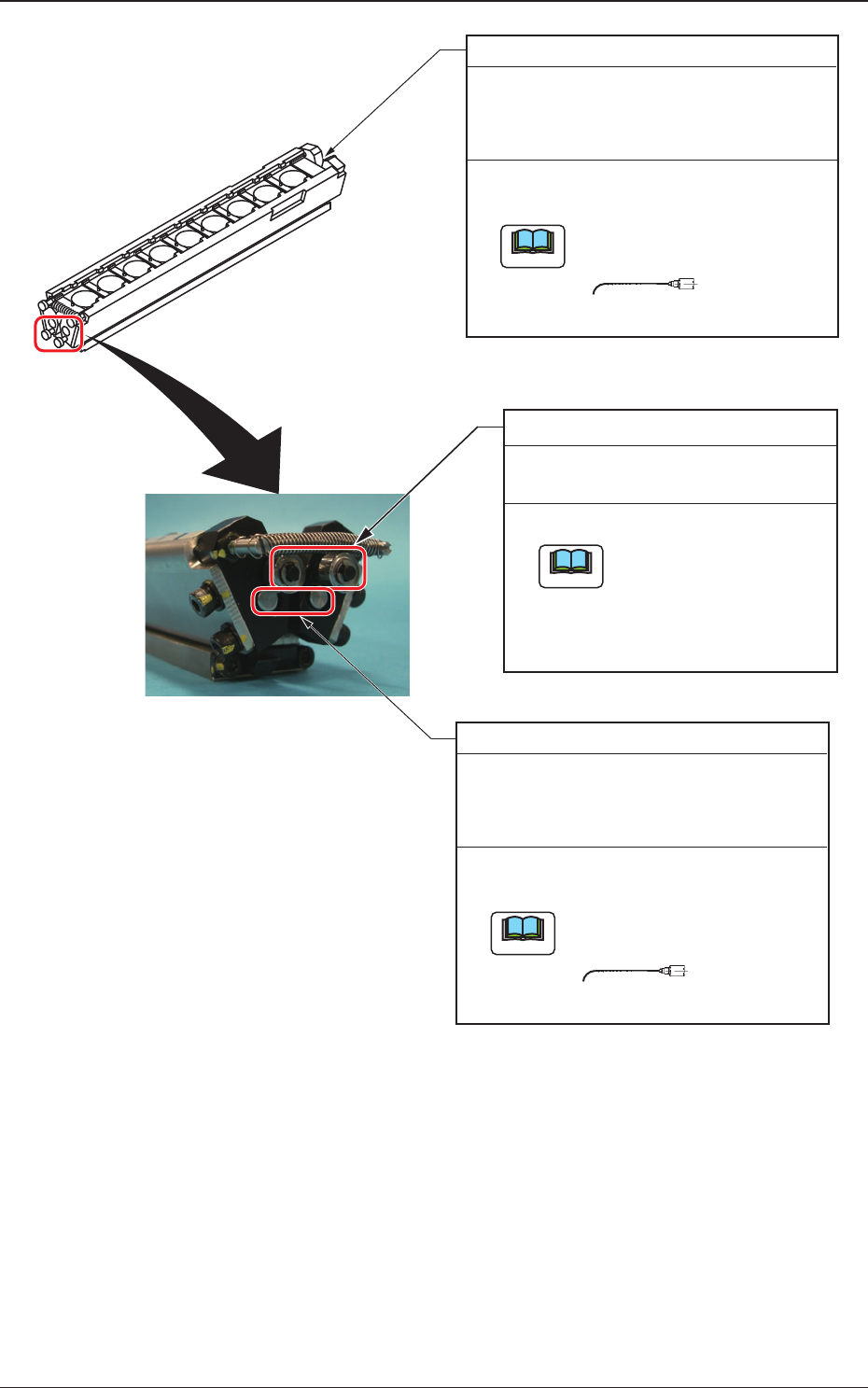

Cam Follower
Every Month Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
syringe.
Use No. 19 (brown) nozzle.
No.19
Note
Take ample care not to leave
the waste threads after the
old grease is wiped off.
Note
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
Fig. 11
1011-001
8.4 Maintenance Method
