OM-1670
12
8. Maintenance
8.1 Precautionary Items before Maintenance
This session describes how to perform inspections, cleaning, lubrication, and
adjustment to keep the nozzle stocker for multi-functional nozzle in good shape.
It is recommended that periodic maintenance of the nozzle stocker for multi-
functional nozzle should be ensured.
CAUTION
Only a well-trained service person should perform
maintenance tasks carefully through the specied
procedures.
8.2 Preparation for Maintenance
8.2.1 Preparation for Cleaning
Required Items for Cleaning and Lubrication
•
Oiled Rag
Use a rag made of such material as cotton, etc., that produces as less waste
thread as possible.
Too much grease should not be applied and any different type of grease should
not be mixed into the specied one.
Notice
The remaining waste thread if any will cause the machine to break down.
•
Vacuum Cleaner
If the suction hole of the vacuum cleaner is changed to a smaller one, some
spots can be cleaned more easily.
1011-001
8. Maintenance
OM-1670
13
8.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
Specied Greases
• DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
• MOL
YNOC GREASE AP1 (NIPPON OIL CORPORATION)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil
will decrease.
Same Types of Lubricants
•
Grease Types equivalent to DAPHNE EPONEX GREASE No. 1 (IDEMITSU
KOSAN)
Table 1
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease 1 NIPPON OIL CORPORATION
Jomo Lisonix Grease No. 1 JAPAN ENERGY CORPORATION
Dynamax No. 1 COSMO OIL LUBRICANTS
Lithtan 1 ESSO OIL
MP Grease No. 1 KYGNUS
Gemico MP-1 Tonen General Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
•
Grease
Types equivalent to MOLYNOC GREASE
AP1 (NIPPON OIL
CORPORATION)
Table 2
Grease Names Makers
DAPHINE Grease M No. 1 Idemitsu Kosan Co., Ltd.
Jomo Lisonix Grease M No. 1 JAPAN ENERGY CORPORATION
COSMO MOLYBDEN GREASE
No. 1
COSMO OIL LUBRICANTS
BEACON Q2 ESSO OIL
Gemico MD2 Tonen General Sekiyu K.K
M
5 GREASE 1 KYGNUS
1011-001
8.2 Preparation for Maintenance
OM-1670
14
Specied lubrication tools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3) Syringe
Maker : TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases
: DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance

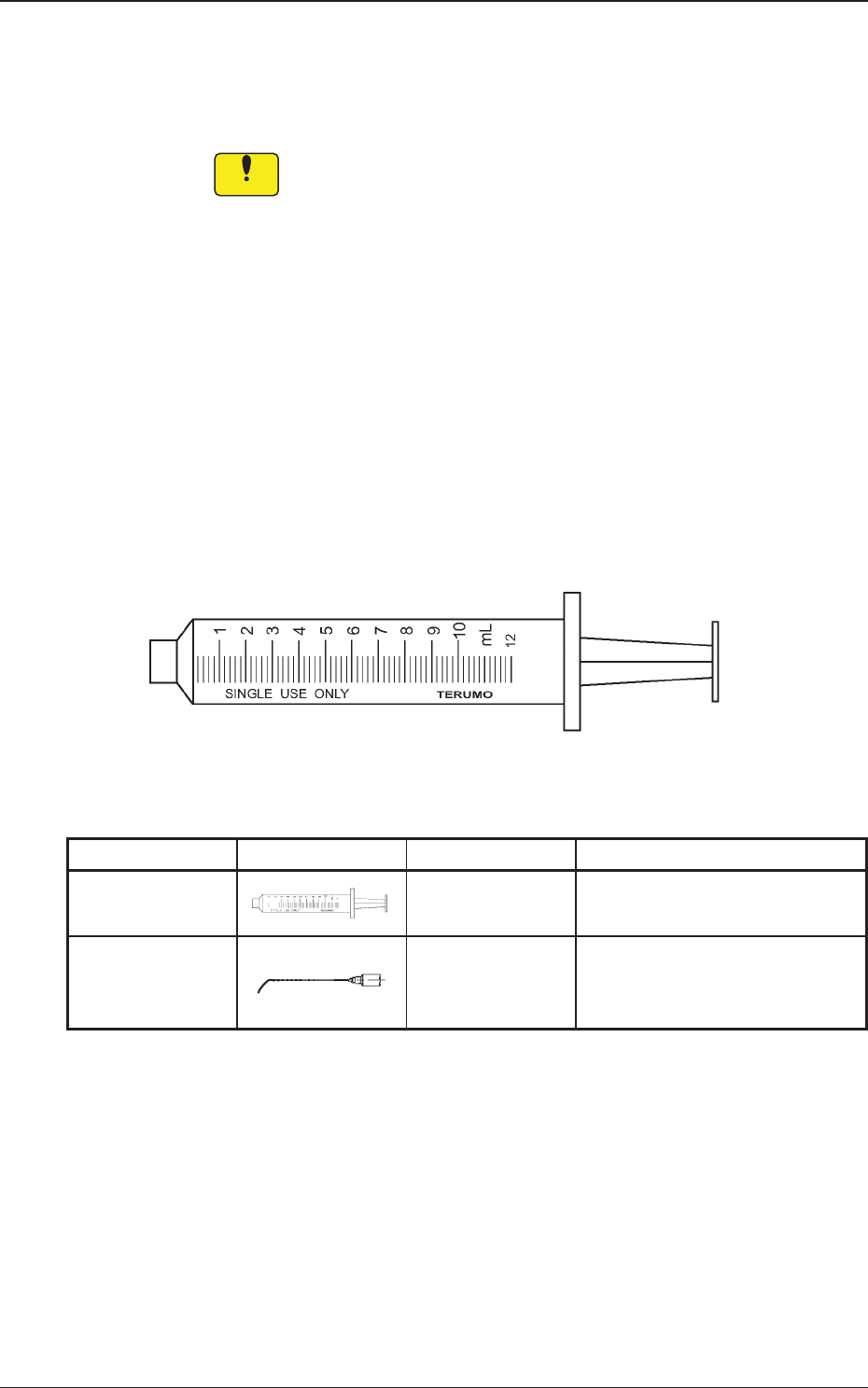

Fig. 8
Table 3
Standard Shape Part No. Remarks
Syringe
228A0171
Marker : TERUMO
10ml SS-10-LZ
Nozzle No.19
(Color : Brown)
0916D108
Maker : NIPRO
Inside Diameter :
f
0.79
Length : 65 mm Flat End
1011-001
8.2 Preparation for Maintenance
