OM-1670 21 10. Specications T able 7 n o i t p i r c s e D m e t I 6. Nozzle Stocker Installation Pattern and Conditions The nozzle stocker arrangement patter n and installation conditions are described as follows. SIGM…
OM-1670
201011-001
10. Specications
Table 6
noitpircseDmetI
1. Model GS-NM100/101/102/103
2. Applicable
Model
SIGMA-G4/G5
3. Configuration Nozzle Stocker for Multi-Functional Nozzle (GS-NM100/101/102/103)
• This consists of the change section and the cylinder section as a set.
Change Section of the Nozzle Stocker for Multi-Functional Nozzle (G -S003-
09/GS-NM111/112/113)
• Shortening the pattern program change time without any nozzle offline
setup
• Prevention of nozzle missing
Cylinder Section of the Nozzle Stocker for Multi-Functional Nozzle (GS-
NM120)
• Change section of the nozzle stocker for multi-functional nozzle in
SIGMA-G4/G5, with which the nozzle stocker (G -S003-09/GS-
NM111/112/113) can be installed on the unit base.
4. Applicable
Nozzle
• FA, FC, FE, FF, FY, WC, WE, WF, WG, WH, WN, WS, WT, YA, YF, YX
Series
• FR Series
Note : The FR series has been designed specially for GS-NM101/102/103.

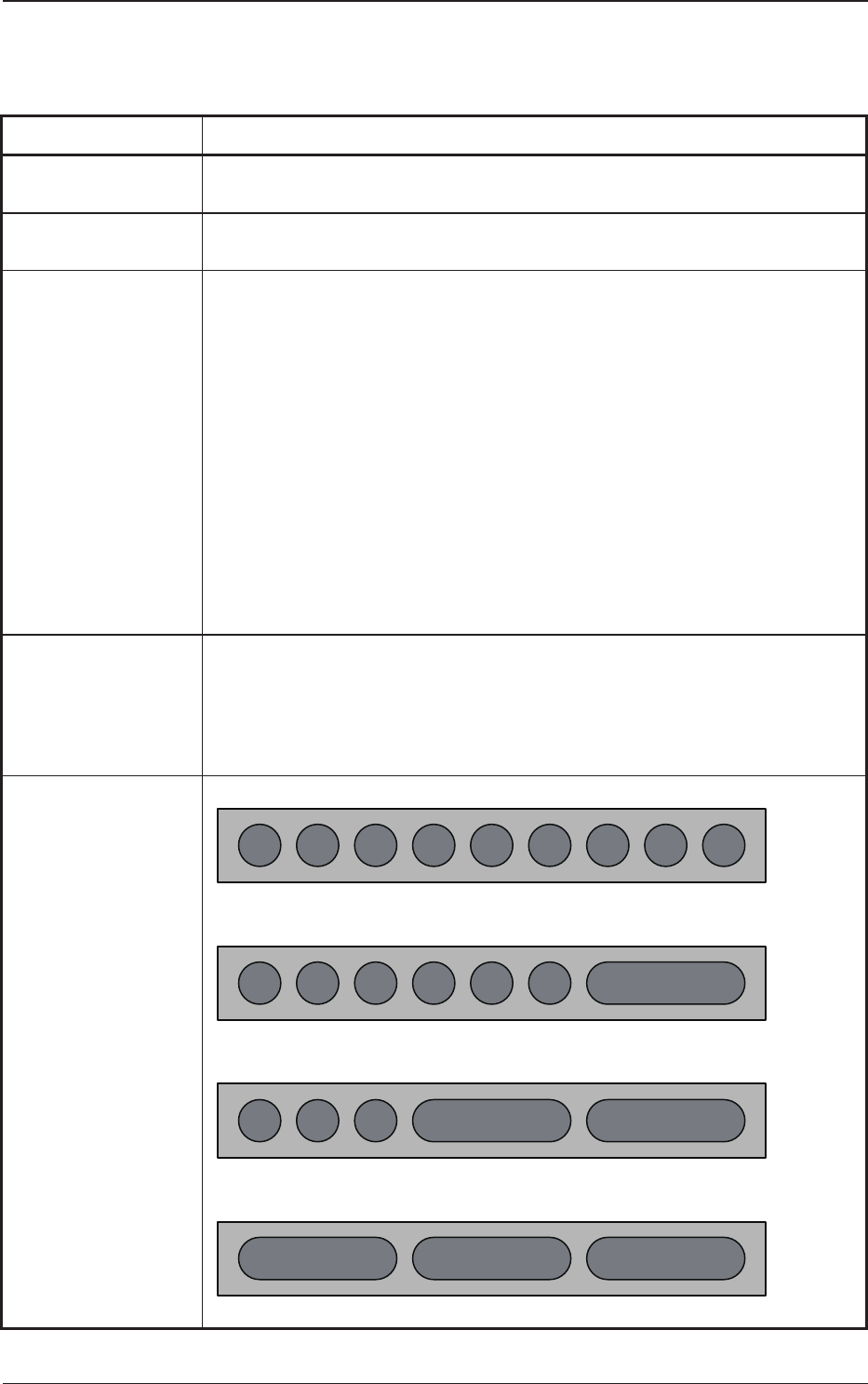

5. Number of
Stockable
Nozzles
GS-NM100 : Max. 9 nozzles
GS-NM101 : Max. 7 nozzles
GS-NM102 : Max. 5 nozzles
GS-NM103 : Max. 3 nozzles
10. Specications
OM-1670
21
10. Specications
Table 7
noitpircseDmetI
6. Nozzle Stocker
Installation
Pattern and
Conditions
The nozzle stocker arrangement pattern and installation conditions are
described as follows.
SIGMA-G5 Nozzle Stocker Arrangement Pattern
Nozzle Stocker 1
Not attachable
Attachable (Note a)
NST1-1
Not attachable
Attachable
NST1-2
NST1-3
NST1-4
Nozzle Stocker 2
Not attachable
Attachable
NST2-4
NST2-3
NST2-2
NST2-1
Not attachable
Attachable (Note a)
SIGMA-G4 Nozzle Stocker Arrangement Pattern
Nozzle Stocker 1
Not attachable
Attachable (Note a)
NST1-1
Not attachable
Attachable
NST1-2
NST1-3
NST1-4
Nozzle Stocker 2
Not attachable
Attachable (Note a)
NST2-1
NST2-2
NST2-3
NST2-4
Not attachable
Attachable
Notes: (a) When the nozzle stocker for multi-functional nozzle is added to
NST1-4 or NST2-4, the nozzle stocker adding HLS board (GS-
NL100) is required.
(b) When the FULL size multi-layer tray feeder (GS-FP200) is used,
only the slots of NST1-1 and NST2-1 on the attachment side can
be used and the addition of any high-speed nozzle stocker is not
available.
7. Number of
Installable
Nozzle Stockers
Max. 4 units (using the nozzle stocker adding HLS board)
8. Mass Change Section of the Nozzle Stocker for Multi-Functional Nozzle :
Approx. 1.25 kg
Cylinder Section of the Nozzle Stocker for Multi-Functional Nozzle :
Approx. 1.00 kg
9. Dimensions Approx. 300 (Width) mm × 105 (Depth) mm × 256 (Height) mm
