OM-1670
10
6. "Unit Change" Window
6.1 Nozzle Stocker
When the nozzle stocker button is pressed, the following window appears.
Note
The display in the window varies depending on the selected option.
[1]
[2]
Fig. 6 Condition where the Nozzle Stocker "L3" for
Multi-Functional Nozzles has been attached.
[1] Unit select
When the nozzle stocker for multi-functional nozzle is to be used, press the
[Multi] button.
Note
The selected button name in the "Stocker Shape" selection box will be
displayed.
[2] Stocker Shape
When the [Multi] button is selected in the "Unit select" box, it is displayed.
Select the stocker shape to be used.
1011-001
6. "Unit Change" Window
Graphic
Development
OM-1670
11

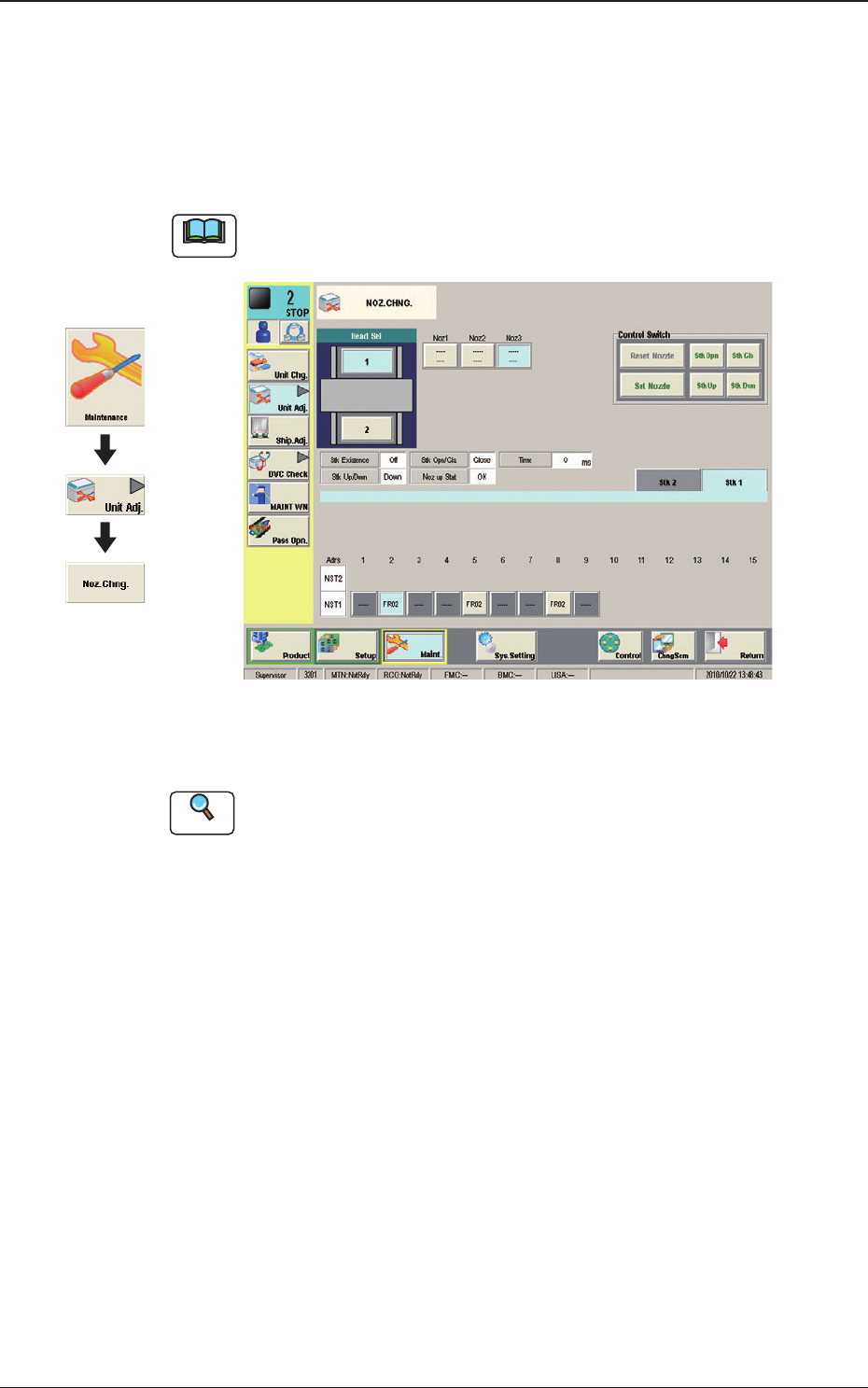

7. "Unit Adj." Submenu
7.1 "NOZ.CHNG." Window
The nozzle attachment and housing can be performed manually.
Note
The display in the window varies depending on the selected option.
Fig. 7 Condition where the Nozzle Stocker "L3" for
Multi-Functional Nozzles has been attached.
Reference
Refer to "4.1. "NOZ.CHG." Window" in Chapter 1 (Volume 3) in the
SIGMA-G4/G5 Main Machine Instruction Manual for the details of the "NOZ.
CHG." window.
Graphic
Development
1011-001
7. "Unit Adj." Submenu
OM-1670
12
8. Maintenance
8.1 Precautionary Items before Maintenance
This session describes how to perform inspections, cleaning, lubrication, and
adjustment to keep the nozzle stocker for multi-functional nozzle in good shape.
It is recommended that periodic maintenance of the nozzle stocker for multi-
functional nozzle should be ensured.
CAUTION
Only a well-trained service person should perform
maintenance tasks carefully through the specied
procedures.
8.2 Preparation for Maintenance
8.2.1 Preparation for Cleaning
Required Items for Cleaning and Lubrication
•
Oiled Rag
Use a rag made of such material as cotton, etc., that produces as less waste
thread as possible.
Too much grease should not be applied and any different type of grease should
not be mixed into the specied one.
Notice
The remaining waste thread if any will cause the machine to break down.
•
Vacuum Cleaner
If the suction hole of the vacuum cleaner is changed to a smaller one, some
spots can be cleaned more easily.
1011-001
8. Maintenance
