Liquidyn P-Jet SolderPlus Jet Valve
40 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Accessories (continued)
Nozzle Heater Kits
NOTE: These nozzle heaters include a flange suitable for mounting the Laser Light Barrier. Refer to “Nozzle Heater
Cables” for suitable cables.
Part # Description Material Item
7825155 Nozzle heater kit, small, M5, 90-degree plug n/a
The kit includes the heater
element, retaining nut, plug,
O-ring, and heater key.
7825149 Nozzle heater kit, standard, M5, straight plug n/a
7825150 Nozzle heater kit, standard, M5, 90-degree plug n/a
7825153 Nozzle heater element, small, M5 Aluminum
7825148 Nozzle heater element, standard, M5 Aluminum
7825152 Nozzle heater element, standard, M8 Aluminum
7825157
Nozzle heater element, large, M5
NOTE: This larger heater element heats the
material farther up into the supply tubing, allowing
more fluid to be heated before it is dispensed.
Aluminum
Nozzle Heater Cables
Part # Description
7825182 2.5 m (8.2 ft) M8 valve cable
7825183 0.5 m (1.6 ft) M8 valve cable
7825176 3 m (10 ft) M5 valve cable, straight plug
7825177 3 m (10 ft) M5 valve cable, 90-degree plug
Nozzle Heater O-Rings
Two types of nozzle heater O-ring are available.
Part # Description Material
7826088 (pack of 5)
7826089 (pack of 50)
NBR nozzle heater O-ring, 13 x 1.5 mm NBR
7825235 EPDM nozzle heater O-ring, 13 x 1.5 mm EPDM
Heater Key
The heater key is required to install the heater retaining nuts.
Part # Description Item
7825209 Heater key
Liquidyn P-Jet SolderPlus Jet Valve
41www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Tools and Supplies
Item Part # Size / Material Description
7825262 1.5 g
Barrier grease for O-rings
7825263 5.0 g
7825205 0.12 mm
Nozzle cleaning probes
7825206 0.16 mm
7825207 0.2 mm
7825208 0.25 mm
7825210 n/a Nozzle pinch tools
7825192 NBR
Standard cleaning kit (order based on O-ring type)
7825191 EPDM
7825194 Perlast
7825196 Viton
7825198 EPDM
Expanded cleaning kit (order based on O-ring type)7825195 Perlast
7825197 Viton
7825924 n/a Tappet alignment tool, concentricity tool
Accessories (continued)
Liquidyn P-Jet SolderPlus Jet Valve
42 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
52 mm (2")
11.5 mm
(0.5")
15 mm
(0.6")
SW10
M8 x 1
15 mm
(0.6")
45.5 mm (1.8")
13.5 mm
(0.5")
10.5 mm
(0.4")
23 mm
(1.0")
13 mm
(0.5")
20 mm
(0.8")
3.2
ca. 128 mm (5")
17.5 mm (0.7")

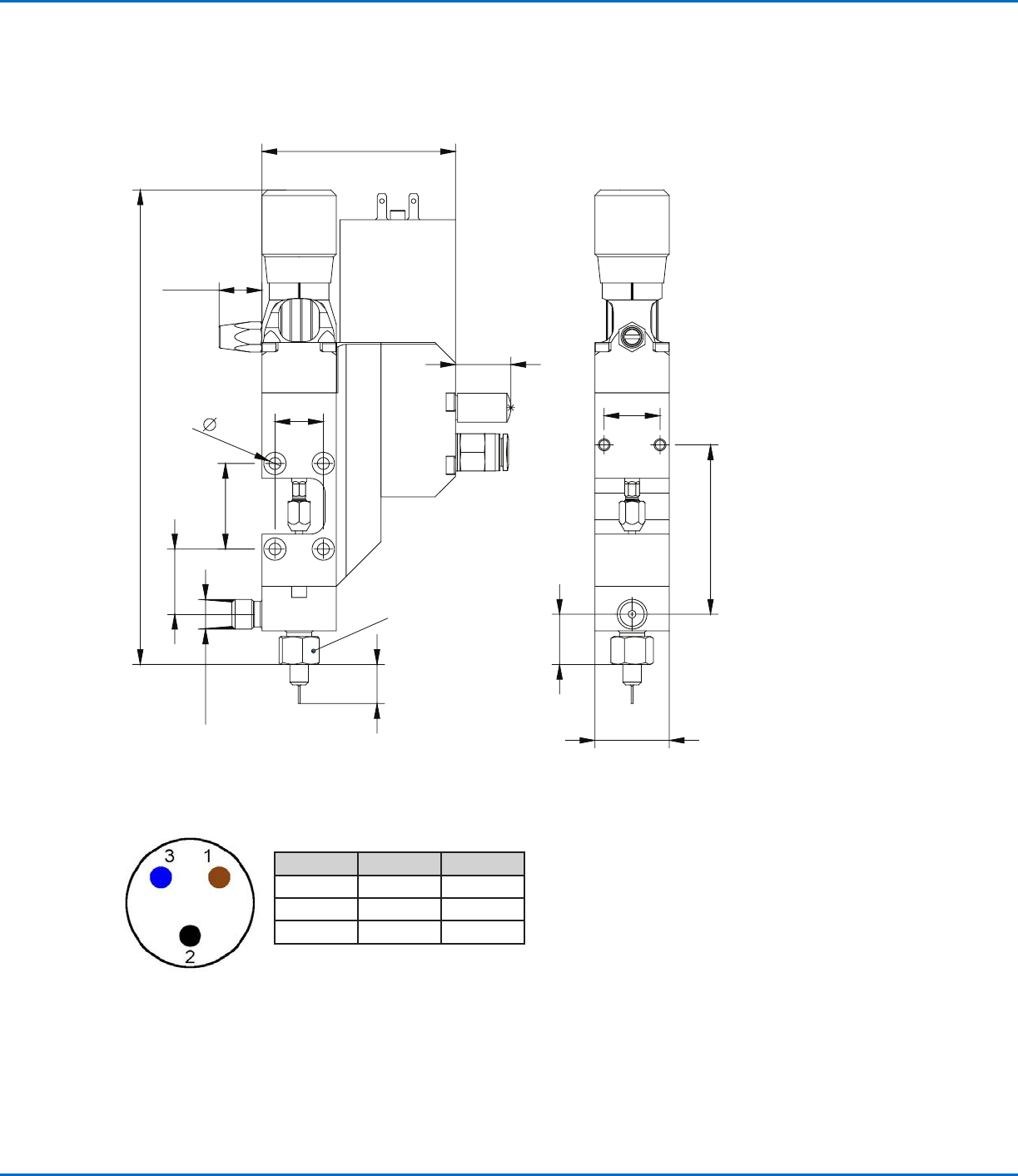

Technical Data
Dimensions
M8 Valve Cable Pin Positions
Pin Color Function
1 Brown None
2 Black Valve (+)
3 Blue Valve (-)
