MVIIF Parts list-Mechanical20101207.pdf - 第130页

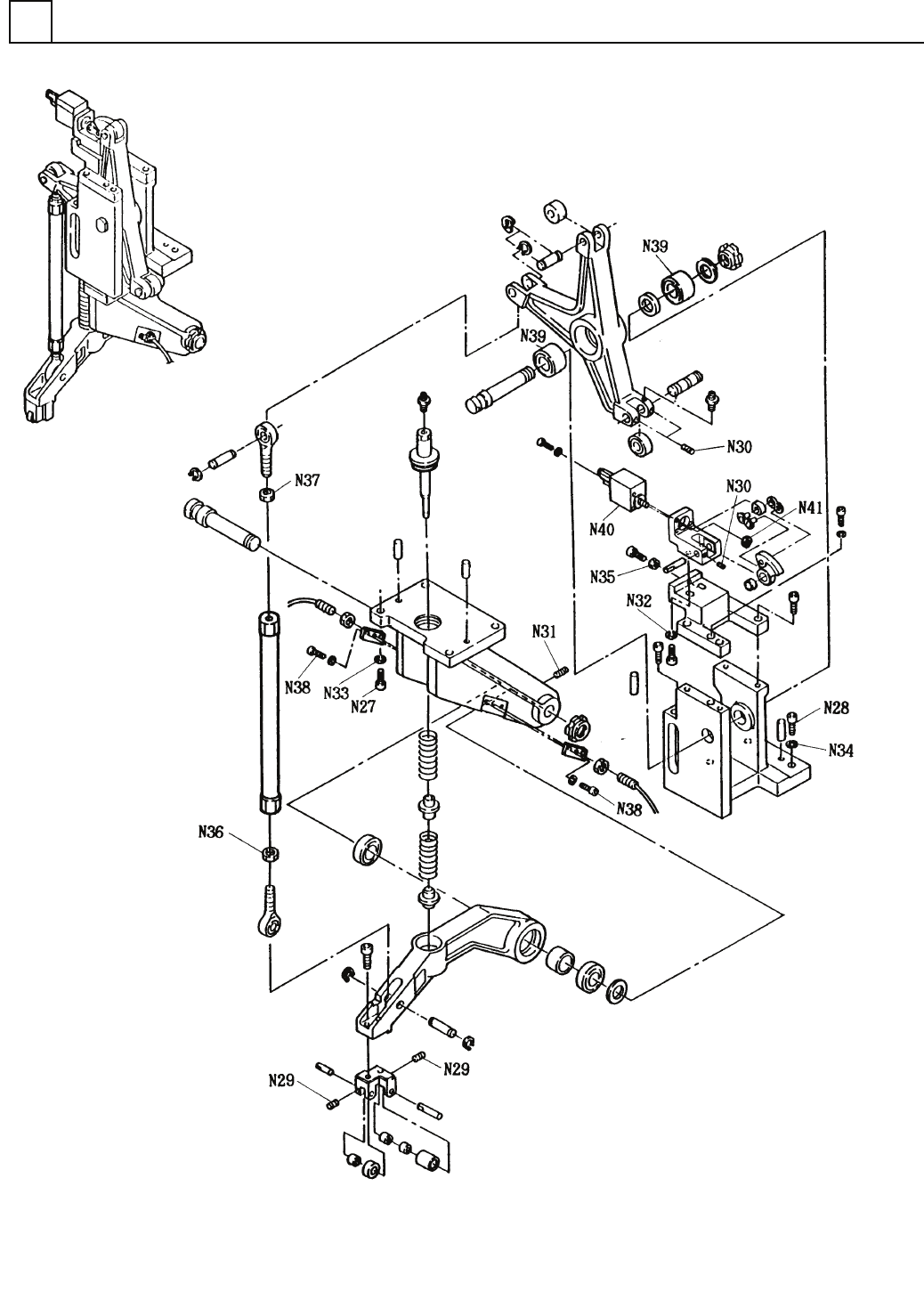

ﾌｨｰﾄ ﾞ部(MK用) FEED SECT.( MK TYPE) 10 F10427-16-100-AH-2 M111
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
10
ﾌｨｰﾄﾞ部(MK用)
FEED SECT.(MK TYPE)
部 品 名 品 番 個数
備 考
1 1042716100
FEED UNIT ﾌｨｰﾄ
ﾞ ﾕﾆｯﾄ
101
1
1042716101
SHAFT ｼｬﾌﾄ
102
1
1022416055
SPACER ｽﾍﾟｰｻ
103 2 104271610301
PIN ﾋ
ﾟﾝ
104 1 1042716004
SHAFT ｼｬﾌﾄ
105
1
1028117018
COLLAR ｶﾗｰ
106
1
1042716106
PIN ﾋﾟﾝ
107 1 104271610704
BASE(STOPPER) ﾍﾞ
ｰｽ(ｽﾄｯﾊﾟ)
108 1 1042716108
CONNECTING ROD ｺﾈｸﾃｨﾝｸ
ﾞﾛｯﾄﾞ
109
1
104271610902
GUIDE(SPRING) ｶﾞｲﾄﾞ(ｽﾌﾟﾘﾝｸﾞ)
110 1 1042716110
BUSHING ﾌﾞｯｼﾝｸﾞ
111 1 104271611103
LEVER(CAM) ﾚﾊ
ﾞｰ(ｶﾑ)
112
1
104271611204
BRACKET ﾌﾞﾗｹｯﾄ
113
1
1042716113
GUIDE(SPRING) ｶﾞｲﾄﾞ(ｽﾌﾟﾘﾝｸﾞ)
114 1 104277702602
HOLDER ﾎﾙﾀﾞ
115 1 104271611501
BRACKET ﾌ
ﾞﾗｹｯﾄ
116
1
104271611603
LEVER( FEED) ﾚﾊﾞｰ(ﾌｨｰﾄﾞ)
117
1
1022416297
PIN ﾋﾟﾝ
118 1 102241629601
ROLLER ﾛｰﾗ
119 1 102241629401
ROLLER ﾛｰﾗ
120
1
1022416295
PIN ﾋﾟﾝ
121
1
104271612102
STOPPER ｽﾄｯﾊﾟｰ
122 1 104271602202
LINK ﾘﾝｸ
124 1 1042779120
PIN ﾋ
ﾟﾝ
125
1
104271622503
BLOCK(STOPPER) ﾌﾞﾛｯｸ(ｽﾄｯﾊﾟ)
126 2 1042716126
PLATE ﾌﾟﾚｰﾄ
127 1 1042777751
COLLAR ｶﾗｰ
128
1
1042777752
COLLAR ｶﾗｰ
N 1
4
XUB10FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ 10,STEEL,P.C
N 2 1 N310P916B120
OPTICAL FIBER CABLE UNIT ﾌｧｲﾊﾞｰﾕﾆｯﾄ P916B-120
N 3 2 XNRNFU03SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU03SC
N 4
2
XLB6003UU
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6003UU
N 5
1
N531NART-012
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ NART8UUVR
N 6 1 N531RFC828
PIN ﾋﾟﾝ RFC8-28
N 7 2 XUC7FP
RETAINING RING E-TYPE E ｶﾞ
ﾀﾄﾒﾜ
7,STEEL,P.C
N 8
1
N533PBRL-006
ROD END ﾛｯﾄﾞｴﾝﾄﾞ PBRL10EFN
N10
2
N560NPT4
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ NPT4
N11 1 N531NART-053
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ NART15R-240138
N12 2 N986SWM2575
SPRING ﾊ
ﾞﾈ
SWM25-75
N13
1
N533PBR10EFN
ROD END ﾛｯﾄﾞｴﾝﾄﾞ PBR10EFN
N14 3 N502KT588N
NEEDLE ROLLER BEARING ﾆｰﾄﾞﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ KT588N
N15 4 N986MS625
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
MS6-25
N16
1
N642RS40JL
JOINT LINK ﾂｷﾞﾃﾘﾝｸ RS40JL
N17
1
XLJNTLA810Z
NEEDLE ROLLER BEARING ﾆｰﾄﾞﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ TLA810Z
N21 3 XVE3B45FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X45,STEEL,P.C
N22 1 XVE4B20FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X20,STEEL,P.C
N23
2
XVE5B12FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M5X12,STEEL,P.C
N24
1
XVE5B25FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M5X25,STEEL,P.C
N25 4 XVE6B16FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M6X16,STEEL,P.C
N26 2 XVE6B20FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X20,STEEL,P.C
M112
F10427-16-100-AH-1
ﾌｨｰﾄﾞ部(MK用)
FEED SECT.(MK TYPE)
10
F10427-16-100-AH-2
M111
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
10
ﾌｨｰﾄﾞ部(MK用)
FEED SECT.(MK TYPE)
部 品 名 品 番 個数
備 考
N27 4 XVE8B25FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X25,STEEL,P.C
N28
3
XVE10B30FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M10X30,STEEL,P.C
N29
3
XXE3C4FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M3X4,STEEL,P.C
N30 3 XXE4C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M4X6,STEEL,P.C
N31 1 XXE6C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M6X8,STEEL,P.C
N32
2
XWG6FP
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ 6,STEEL,P.C
N33
4
XWA8BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 8,2-TYPE,STEEL,P.C
N34 3 XWB10BFP
SPRING WASHER ﾊ
ﾞﾈｻﾞｶﾞﾈ
10,2-TYPE,STEEL,P.C
N35 1 XNG4AFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M4,1-TYPE,STEEL,P.C
N36
1
XNH10DFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M10,1-TYPE,STEEL,P.C
N37 1 XNHN10DFPL
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M10,1-TYPE,STEEL,P.C (L.H.
N38 4 XVE3B8FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X8,STEEL,P.C
N39
2
XLLN5203ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 5203ZZ
N40
1
N403XCHA-164
CYLINDER ｼﾘﾝﾀﾞ XCHA7-12D-16-D24MP-Z3
N41 3 XNG3AFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M3,1-TYPE,STEEL,P.C
M112
F10427-16-100-AH-2
