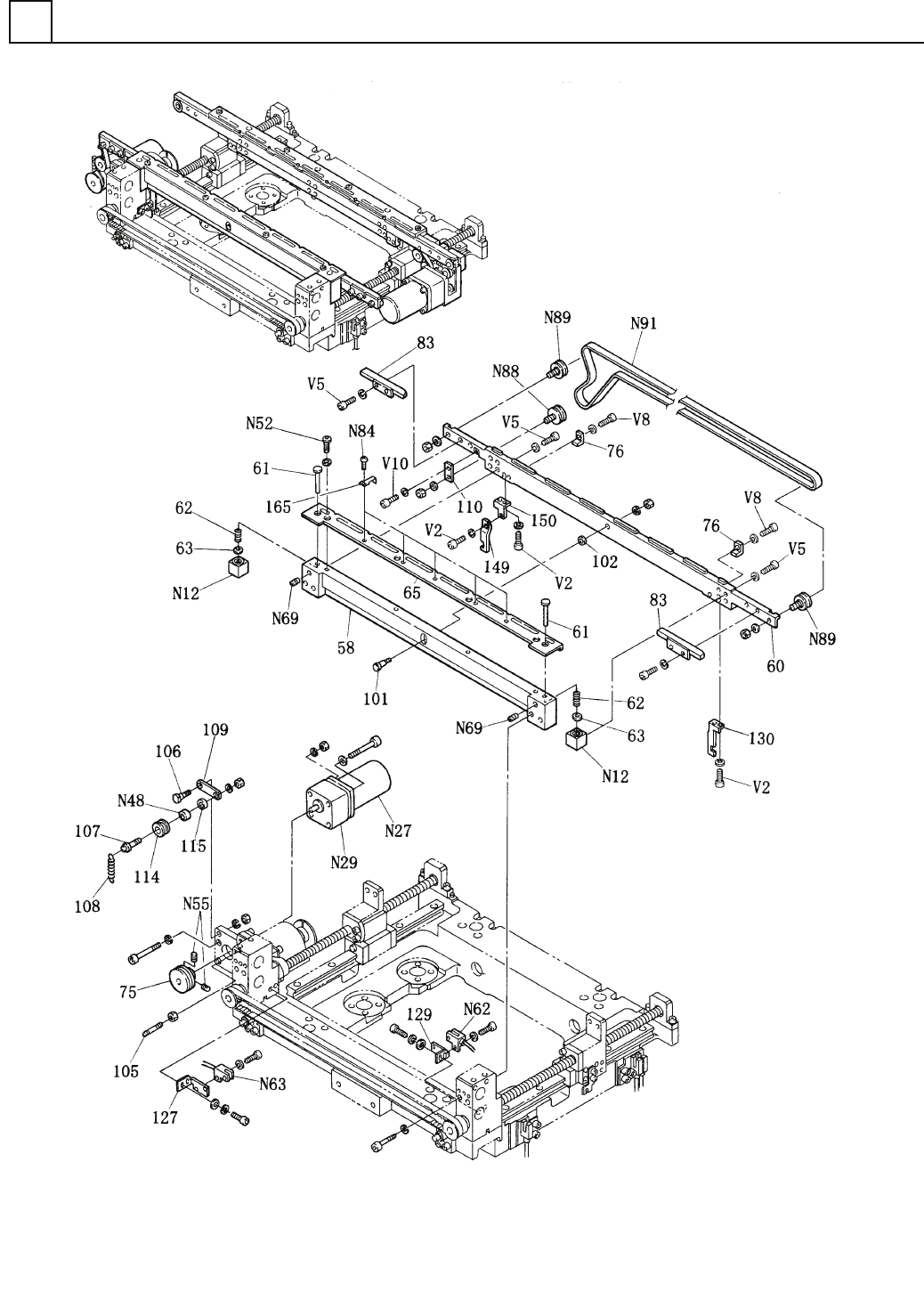

X-Yﾃｰﾌﾞﾙ部 (ﾚｰﾙ部2) X-Y TABLE S ECT.(RAIL SECT .-2) 3 F10427-48-000-AK_A -7 M13
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
X-Yﾃｰﾌﾞﾙ部(ﾚｰﾙ部1)
X-Y TABLE SECT.(RAIL SECT.-1)
部 品 名 品 番 個数
備 考
55 1 102664896401
RAIL ﾚｰﾙ
56
1
102664805601
RAIL ﾚｰﾙ
57
1
102380408604
BRACKET ﾌﾞﾗｹｯﾄ
61 3 102380409301
PIN ﾋ
ﾟﾝ
62 3 1023804090
SPRING ﾊ
ﾞﾈ
63
3
1023804091
COLLAR ｶﾗｰ
66
1
102664896302
RAIL ﾚｰﾙ
75 1 1023804068
PULLEY ﾌ
ﾟｰﾘｰ
82 2 102664808201
RAIL ﾚｰﾙ
88
2
1025954088
BLOCK ﾌﾞﾛｯｸ
110 1 102380409901
PLATE ﾌﾟﾚｰﾄ
111 2 1023804127
PIN ﾋ
ﾟﾝ
112
1
102380412802
PIN ﾋﾟﾝ
113
1
102380412902
PLATE ﾌﾟﾚｰﾄ
114 2 1023804125
ROLLER ﾛｰﾗ
115 2 1023804126
COLLAR ｶﾗｰ
116
2
102380413001
PIN ﾋﾟﾝ
117
2
1023804131
SPRING ﾊﾞﾈ
118 1 102380413502
PLATE ﾌﾟﾚｰﾄ
119 1 1023804134
PIN ﾋ
ﾟﾝ
165
6
102664896501
SPRING ﾊﾞﾈ
N12
3
N513SMA4G
BUSHING ﾌﾞｯｼﾝｸﾞ SMA4G
N27 1 M4RA1G4L
MOTOR ﾓｰﾀ M4RA1G4L
N29 1 M4GA6F
GEAR HEAD ｷﾞ
ﾔｰﾍｯﾄﾞ
M4GA6F
N48
2
XLCNMR104ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ MR104ZZ
N52 4 XVEN4M8FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M4X8,STEEL,P.C
N55 2 XXE3D6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M3X6,STEEL,P.C
N69
3
XXE3D8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M3X8,STEEL,P.C
N84
6
N986YYYY-490
SCREW ﾈｼﾞ(ｺﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ) SP4X8BN1206-1.0
N88 1 N648MB011000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ) MB011000
N89 2 N648MB012000
PULLEY ﾌ
ﾟｰﾘｰ
MB012000
N90
1
N641F1235
BELT ﾍﾞﾙﾄ F-0 4.5WX1235
V 2
6
XVE3B5FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X5,STEEL,P.C
V 5 16 XVE3B10FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X10,STEEL,P.C
V13 2 XVE4B14FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X14,STEEL,P.C
V18
2
XVE5B14FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M5X14,STEEL,P.C
V20
4
XVE5B16FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M5X16,STEEL,P.C
M14
F10427-48-000-AK_A-6
X-Yﾃｰﾌﾞﾙ部(ﾚｰﾙ部2)
X-Y TABLE SECT.(RAIL SECT.-2)
3
F10427-48-000-AK_A-7
M13
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
X-Yﾃｰﾌﾞﾙ部(ﾚｰﾙ部2)
X-Y TABLE SECT.(RAIL SECT.-2)
部 品 名 品 番 個数
備 考
58 1 102664896201
RAIL ﾚｰﾙ
60
1
102664806001
RAIL ﾚｰﾙ
61
2
102380409301
PIN ﾋﾟﾝ
62 2 1023804090
SPRING ﾊ
ﾞﾈ
63 2 1023804091
COLLAR ｶﾗｰ
65
1
102664896101
RAIL ﾚｰﾙ
75
1
1023804068
PULLEY ﾌﾟｰﾘｰ
76 2 1026648076
BLOCK ﾌ
ﾞﾛｯｸ
83 2 102664808301
RAIL ﾚｰﾙ
101
1
1026648101
PIN ﾋﾟﾝ
102 1 1026648102
COLLAR ｶﾗｰ
105 1 1025854117
PIN ﾋ
ﾟﾝ
106
1
1025854116
PIN ﾋﾟﾝ
107
1
1025854114
PIN ﾋﾟﾝ
108 1 1023804132
SPRING ﾊﾞﾈ
109 1 102585411501
PLATE ﾌ
ﾟﾚｰﾄ
110
1
102380409901
PLATE ﾌﾟﾚｰﾄ
114
1
1023804125
ROLLER ﾛｰﾗ
115 1 1023804126
COLLAR ｶﾗｰ
127 1 102664812701
BRACKET ﾌ
ﾞﾗｹｯﾄ
129
1
102664812901
BRACKET ﾌﾞﾗｹｯﾄ
130
1
1026648130
BRACKET ﾌﾞﾗｹｯﾄ
149 1 102664892602
BRACKET ﾌ
ﾞﾗｹｯﾄ
150 1 102664892702
BRACKET ﾌ
ﾞﾗｹｯﾄ
165
5
102664896501
SPRING ﾊﾞﾈ
N12 2 N513SMA4G
BUSHING ﾌﾞｯｼﾝｸﾞ SMA4G
N27 1 M4RA1G4L
MOTOR ﾓｰﾀ M4RA1G4L
N29
1
M4GA6F
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ M4GA6F
N48
1
XLCNMR104ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ MR104ZZ
N52 4 XVEN4M8FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M4X8,STEEL,P.C
N55 2 XXE3D6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M3X6,STEEL,P.C
N62
1
N310P914C
SENSOR ﾌｫﾄﾏｲｸﾛｾﾝｻ P914C
N63
1
N310P914A
SENSOR ﾌｫﾄﾏｲｸﾛｾﾝｻ P914A
N69 2 XXE3D8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M3X8,STEEL,P.C
N84 5 N986YYYY-490
SCREW ﾈｼﾞ(ｺﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ
)
SP4X8BN1206-1.0
N88
1
N648MB011000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ) MB011000
N89
2
N648MB012000
PULLEY ﾌﾟｰﾘｰ MB012000
N91 1 N641F1304
BELT ﾍ
ﾞﾙﾄ
F-0 4.5WX1304
V 2 4 XVE3B5FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X5,STEEL,P.C
V 5
12
XVE3B10FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X10,STEEL,P.C
V 8 2 XVE4B5FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M4X5,STEEL,P.C
V10 2 XVE4B8FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X8,STEEL,P.C
M14
F10427-48-000-AK_A-7
