MVIIF Parts list-Mechanical20101207.pdf - 第148页
部品認識TVﾓ ﾆﾀｰ部(専用部 ) COMPONENT R ECOGNITION TV MONITOR SECT . 13 F10427-20-500_B M131
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
13
部品認識部(共通部3)
COMPONENT RECOGNITION SECT.(COMMON SECT.-3)
部 品 名 品 番 個数
備 考
7 1 1028120007
BOLT ﾎ
ﾞﾙﾄ
30
1
1022416067
COLLAR ｶﾗｰ
33
1
102812003307
LEVER(CAM) ﾚﾊﾞｰ(ｶﾑ)
34 2 102812003401
SPRING ﾊ
ﾞﾈ
35 4 102812003502
HANGER ﾊﾝｶ
ﾞｰ
36
1
1028120036
STOPPER ｽﾄｯﾊﾟｰ
37
1
1042875912
PIN ﾋﾟﾝ
38 1 104272003801
BRACKET ﾌ
ﾞﾗｹｯﾄ
39 1 1042875913
PIN ﾋ
ﾟﾝ
40
1
1042875916
SPACER ｽﾍﾟｰｻ
N 2 1 XNGNU6YSZ
LOCK-NUT ﾛｯｸﾅｯﾄ M6,2-TYPE,STAINLESS,STEEL,
N20 1 N533PBRL6FN
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
PBRL6FN
N21
1
N531CF10-051
CAM FOLLOWER ｶﾑﾌｫﾛｱ CF10RAS-240244
N22
1
N986YYYY-994
NUT U ﾅｯﾄ M10SUS301,2-CLASS AISI1018
N24 1 XNGNU8VSZ
LOCK-NUT ﾛｯｸﾅｯﾄ M8,2-TYPE,STAINLESS,STEEL,
N25 2 XLB6003UU
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
6003UU
N27
1
N986MSTM820
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ MSTM8-20
N28
1
N401CQSB-760
CYLINDER ｼﾘﾝﾀﾞ CQSB25-25DCM
N29 1 N560NPT4
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ NPT4
N40 4 XVE5B50FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X50,STEEL,P.C
N42
3
XVE6B20FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M6X20,STEEL,P.C
N47
2
XXE4C5FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X5,STEEL,P.C
N50 1 XNG6DFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M6,1-TYPE,STEEL,P.C
N54 1 XWG6FP
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6,STEEL,P.C
N58
2
N431KQL06M5
FITTING ﾂｷﾞﾃ KQL06-M5
N62 3 XUB8FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ 8,STEEL,P.C
N63 1 N531NART8UUR
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ NART8UUR
M126
F10427-20-000-AL_A-3

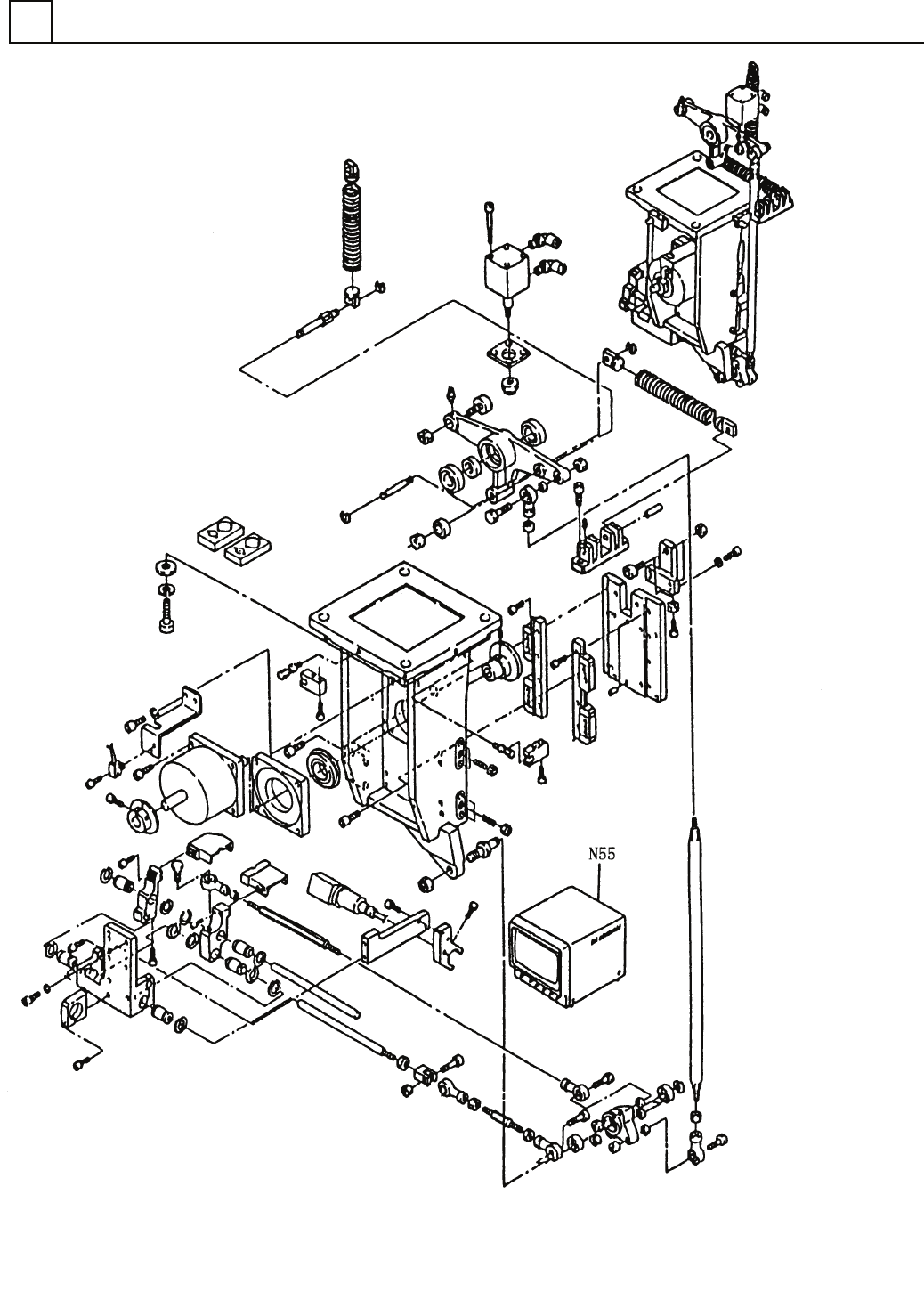

部品認識TVﾓﾆﾀｰ部(専用部)
COMPONENT RECOGNITION TV MONITOR SECT.
13
F10427-20-500_B
M131
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
13
部品認識TVﾓﾆﾀｰ部(専用部)
COMPONENT RECOGNITION TV MONITOR SECT.
部 品 名 品 番 個数
備 考
1 1042720500
COMPONENT RECOGNITION UNIT ﾌﾞﾋﾝﾆﾝｼｷ
TV ﾓﾆﾀｰﾕﾆｯﾄ
N55
1
302585004003
TV MONITOR UNIT ﾋﾞﾃﾞｵｼﾞｭｿﾞｳｷ WV-BM900A
M132
F10427-20-500_B
