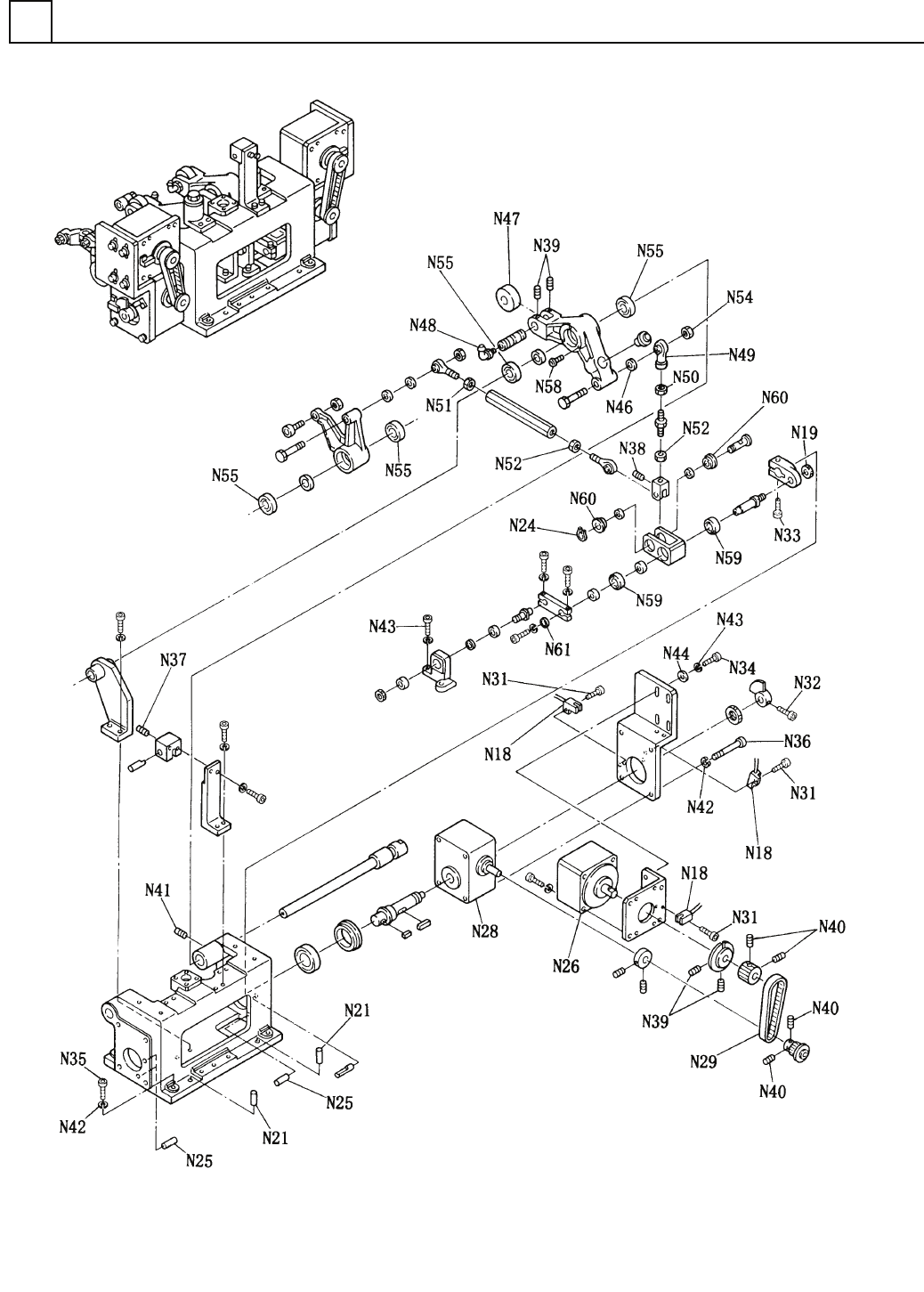

吸着及びﾏ ｳﾝﾄ駆動部(1) SUCTION OR PLACEMENT DRIV ING SECT.(1) 19 F10427-27-000-AL_A -2 M157
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
19
吸着及びﾏｳﾝﾄ駆動部(1)
SUCTION OR PLACEMENT DRIVING SECT.(1)
部 品 名 品 番 個数
備 考
1 1042727000
SUCTION OR PLACEMENT UNIT ｷｭｳﾁｬｸｵﾖﾋ
ﾞﾏｳﾝﾄｸﾄﾞｳﾕﾆｯﾄ
3
1
1042727003
BOLT ﾎﾞﾙﾄ
5
2
1042777753
COLLAR ｶﾗｰ
9 1 1042875909
PLATE ﾌ
ﾟﾚｰﾄ
10 1 1042875910
PIN ﾋ
ﾟﾝ
11
1
1042875911
COLLAR ｶﾗｰ
12
1
104272701201
SHAFT ｼｬﾌﾄ
14 1 104272701408
HOUSING ﾊｳｼ
ﾞﾝｸﾞ
15 1 1028127015
RING ﾘﾝｸ
ﾞ
16
1
1028127016
SHAFT ｼｬﾌﾄ
18 1 104272701802
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
21 1 104272702101
FLANGE(GUIDE) ﾌﾗﾝｼ
ﾞ(ｶﾞｲﾄﾞ)
24
1
1042779561
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
25
1
1028179069
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
26 1 1028179070
BOSS ﾎﾞｽ
32 1 102812703204
ARM(RIGHT) ｱｰﾑ
(ﾗｲﾄ)
33
1
104272703301
BRACKET ﾌﾞﾗｹｯﾄ
34
1
104287591401
HOLDER ﾎﾙﾀﾞ
35 1 1042875915
PIN ﾋﾟﾝ
36 1 104272703601
CONNECTING ROD ｺﾈｸﾃｨﾝｸ
ﾞﾛｯﾄﾞ
39
1
104277934804
LEVER(PICK-UP CAM) ﾚﾊﾞｰ(ﾋﾟｯｸｱｯﾌﾟｶﾑ)
44
1
104277933902
CONNECTING ROD ｺﾈｸﾃｨﾝｸﾞﾛｯﾄﾞ
45 1 1042779349
BOLT ﾎ
ﾞﾙﾄ
46 1 1042875919
LINK ﾘﾝｸ
48
1
104277934303
PIN ﾋﾟﾝ
49 1 1042779365
GUIDE(SPRING) ｶﾞｲﾄﾞ(ｽﾌﾟﾘﾝｸﾞ)
51 1 104287590102
BRACKET ﾌ
ﾞﾗｹｯﾄ
53
1
104287590303
HOUSING ﾊｳｼﾞﾝｸﾞ
55
1
104287590501
BRACKET ﾌﾞﾗｹｯﾄ
58 1 1042727058
LEVER(PICK-UP) ﾚﾊﾞｰ(ﾋﾟｯｸｱｯﾌﾟ)
60 1 1042727060
SLIT DISK ｽﾘｯﾄﾃ
ﾞｨｽｸ
61
1
1042777483
PIN ﾋﾟﾝ
62
1
104287520501
RING ﾘﾝｸﾞ
63 1 1042875201
PIN ﾋﾟﾝ
64 1 104287520301
PIN ﾋ
ﾟﾝ
65
1
1042875204
COLLAR ｶﾗｰ
66
1
1042875202
COLLAR ｶﾗｰ
67 2 1042875206
COLLAR ｶﾗｰ
N 1 1 N531CF8UUA
CAM FOLLOWER ｶﾑﾌｫﾛｱ CF8UU-A
N 2
2
XNGNU8VSZ
LOCK-NUT ﾛｯｸﾅｯﾄ M8,2-TYPE,STAINLESS,STEEL,
N 4 1 N560SSWA-047
WASHER ｻﾞｶﾞﾈ SSWA13-3.0
N 5 1 N533PBR8-003
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
PBR8EFN-204
N 6
1
N560SSWA-062
WASHER ｻﾞｶﾞﾈ SSWA13-2.0
N 7
2
XLC6900ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6900ZZ
N 8 1 XNRNFU00SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU00SC
N10 1 XNRNFU04SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU04SC
N11
1
N986KES510
KEY ｷｰ KES5-10
N12
1
N986KES520
KEY ｷｰ KES5-20
N13 1 XLBN6005VVCM
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6005VVCM
N16 1 N533PBRL-004
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
PBRL8EFN-204
M158
F10427-27-000-AL_A-1
吸着及びﾏｳﾝﾄ駆動部(1)
SUCTION OR PLACEMENT DRIVING SECT.(1)
19
F10427-27-000-AL_A-2
M157
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
19
吸着及びﾏｳﾝﾄ駆動部(1)
SUCTION OR PLACEMENT DRIVING SECT.(1)
部 品 名 品 番 個数
備 考
N18 3 N310P914A
SENSOR ﾌｫﾄﾏｲｸﾛｾﾝｻ P914A
N19
1
XNRNFU01SC
LOCK-NUT ﾛｯｸﾅｯﾄ FU01SC
N21
2
N986MS625
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ MS6-25
N24 1 XUB8FP
RETAINING RING C-TYPE C
ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
8,STEEL,P.C
N25 3 N986MST630
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
MST6-30
N26
1
N606A485-088
MOTOR ﾓｰﾀ A4859-9515N
N28
1
N620SM13-011
REDUCTION GEAR ｹﾞﾝｿｸｷ(ｳｫｰﾑ) SM13E-T101-LF20
N29 1 N641273P3M15
BELT(TIMING) ﾍﾞ
ﾙﾄ(ﾀｲﾐﾝｸﾞ)
273P3M15
N31 3 XVE3B8FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X8,STEEL,P.C
N32
1
XVE3B12FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M3X12,STEEL,P.C
N33 5 XVE6B16FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M6X16,STEEL,P.C
N34 4 XVE6B20FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X20,STEEL,P.C
N35
4
XVE8B25FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M8X25,STEEL,P.C
N36
4
XVE8B90FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M8X90,STEEL,P.C
N37 1 XXE5C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M5X6,STEEL,P.C
N38 1 XXE3C5FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M3X5,STEEL,P.C
N39
4
XXE4C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X6,STEEL,P.C
N40
4
XXE5C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M5X8,STEEL,P.C
N41 1 XXE6C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M6X8,STEEL,P.C
N42 8 XWA8BFP
SPRING WASHER ﾊﾞ
ﾈｻﾞｶﾞﾈ
8,2-TYPE,STEEL,P.C
N43
12
XWA6BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 6,2-TYPE,STEEL,P.C
N44
4
XWG6FP
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ 6,STEEL,P.C
N46 1 XWH10FP
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
10,STEEL,P.C
N47 1 N531NART-053
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ NART15R-240138
N48
1
N560B6FBN
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ B-M6F
N49 1 N533PBR10FN
ROD END ﾛｯﾄﾞｴﾝﾄﾞ PBR10FN
N50 1 XNH10FFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M10,3-TYPE,STEEL,P.C
N51
1
XNHN10FFPF
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M10X1.25,3-TYPE,STEEL,P.C
N52
2
XNHN10FFPLF
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M10X1.25,3-TYPE,STEEL,P.C
N54 1 N986YYYY-994
NUT U ﾅｯﾄ M10SUS301,2-CLASS AISI1018
N55 4 XLLN5203ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
5203ZZ
N58
3
XVEN3M6FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M3X6,STEEL,P.C
N59
2
XLHNNAG4-002
CYLINDRICAL ROLLER BEARING ｼﾘﾝﾄﾞﾘｶﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ NAG4902UU
N60 2 XLCN638ZZMC3
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 638ZZMC3
N61 1 N560SRW10
WASHER ｻﾞ
ｶﾞﾈ
SRW10
M158
F10427-27-000-AL_A-2
