1 VERIFICATION AND TRACEABILITY

1.2 ENABLE VERIFICATION

STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 9

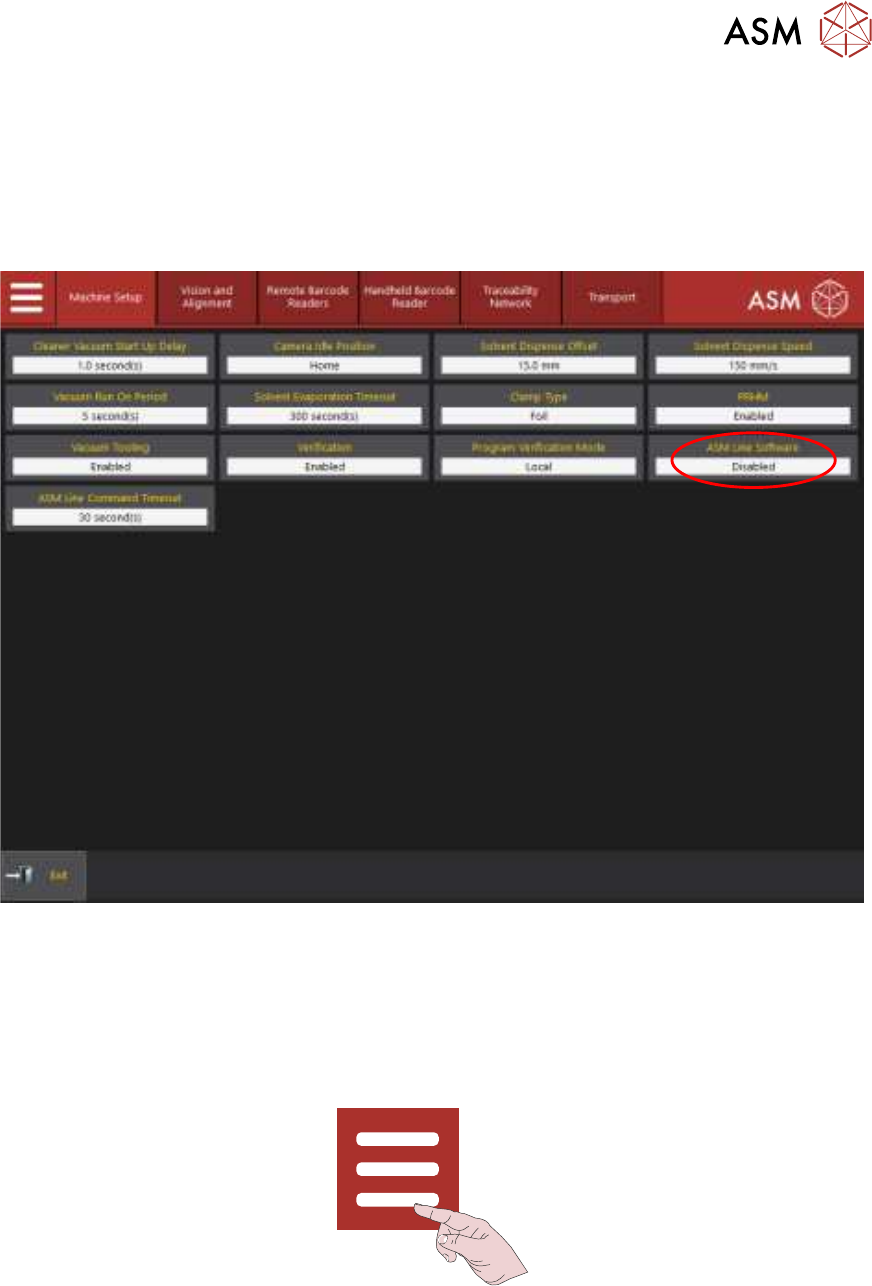

1.2.1 Enable ASM Line Software

To use remote verification or traceability, check the ASM Line Software parameter is enabled. To

enable ASM Line Software, use the following procedure:

NOTE

This parameter may already be enabled and in use by another software application.

1. Select the ASM Line Software parameter.

2. Select Enabled.

3. Select Accept.

4. Select Exit.

1.2.2 Enable Board Verification

1. Select the Menu icon.

2. Select Programming.

3. Select Edit.

4. Select the side that needs to be verified (Top Side or Bottom Side).

5. Select Edit.

1 VERIFICATION AND TRACEABILITY

1.2 ENABLE VERIFICATION

10 STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020

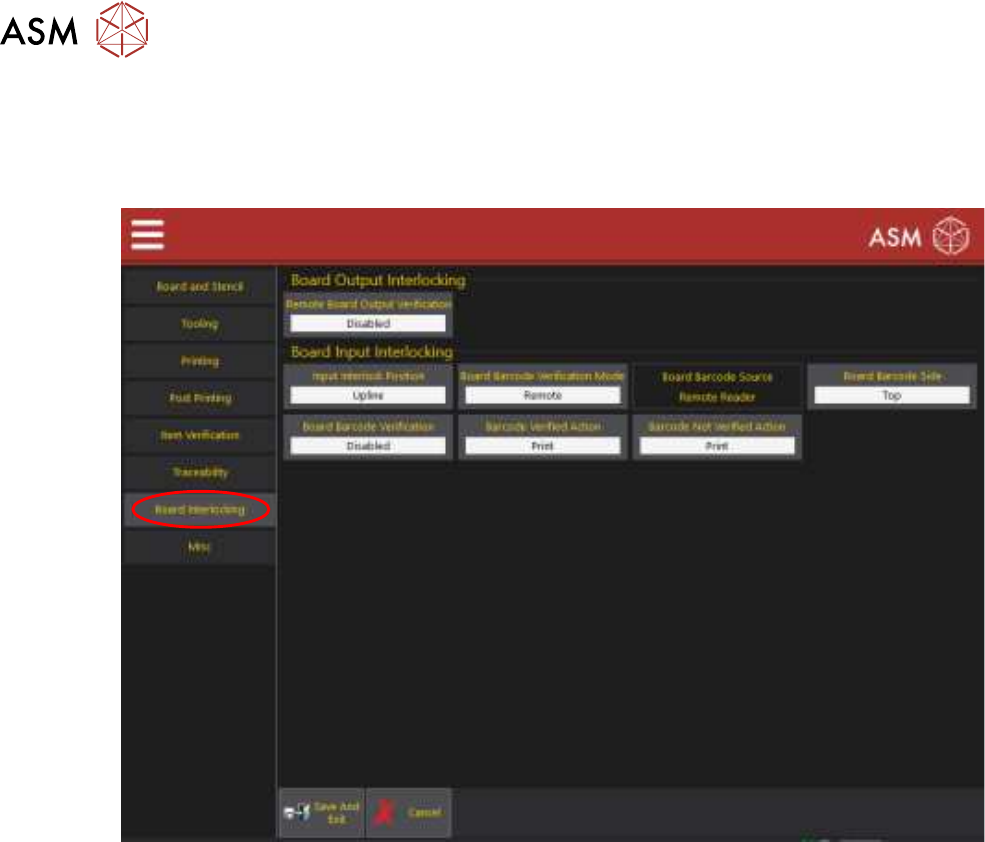

6. Select Board Interlocking to display the following page:

Board interlocking determines what happens to the board when it fails verification. The Board

Interlock Position parameter determines where the board is held if Barcode Verification Action

is set to Hold.

7. Select the Input Interlock Position parameter.

8. Select Upline or Inroad depending on where the board is to be held after failing verification, if

the Barcode Verification Action parameter is set to Hold.

9. Select Accept.

10. Select Board Barcode Side.

11. Select Top or Bottom depending on which side of the board the barcode is located.

12. Select Accept.

13. Select Board Barcode Verification.

14. Select Enabled.

15. Select Accept.

16. Select Save And Exit.

17. Select Save And Exit.

18. Select Exit.

1 VERIFICATION AND TRACEABILITY

1.2 ENABLE VERIFICATION

STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 11

1.2.3 Enable Item Verification

1. Select the Menu icon.

2. Select Programming.

3. The current loaded program is highlighted.

4. Select Edit.

5. Select Top Side or Bottom Side.

6. Select Edit.

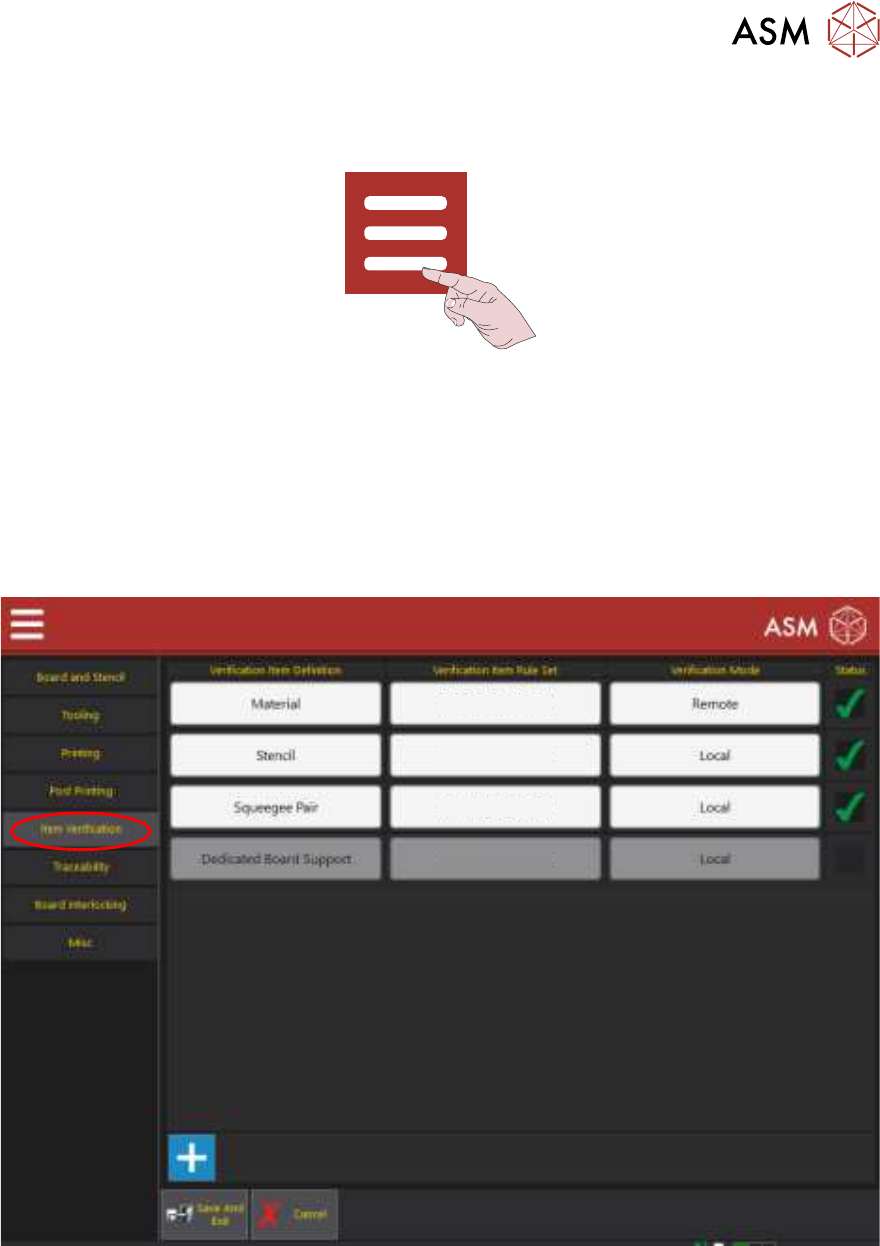

7. Select Item Verification to display the following page:

The status column shows a green tick of items that are enabled and blank when disabled.

Edit Rule Sets

8. Select at the right hand side of the item, in the Status column, to change the status.

9. Select Save And Exit.

10. Select Save And Exit.

11. Select Exit.
