1 VERIFICATION AND TRACEABILITY
1.2 ENABLE VERIFICATION
STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 7
1.2 ENABLE VERIFICATION

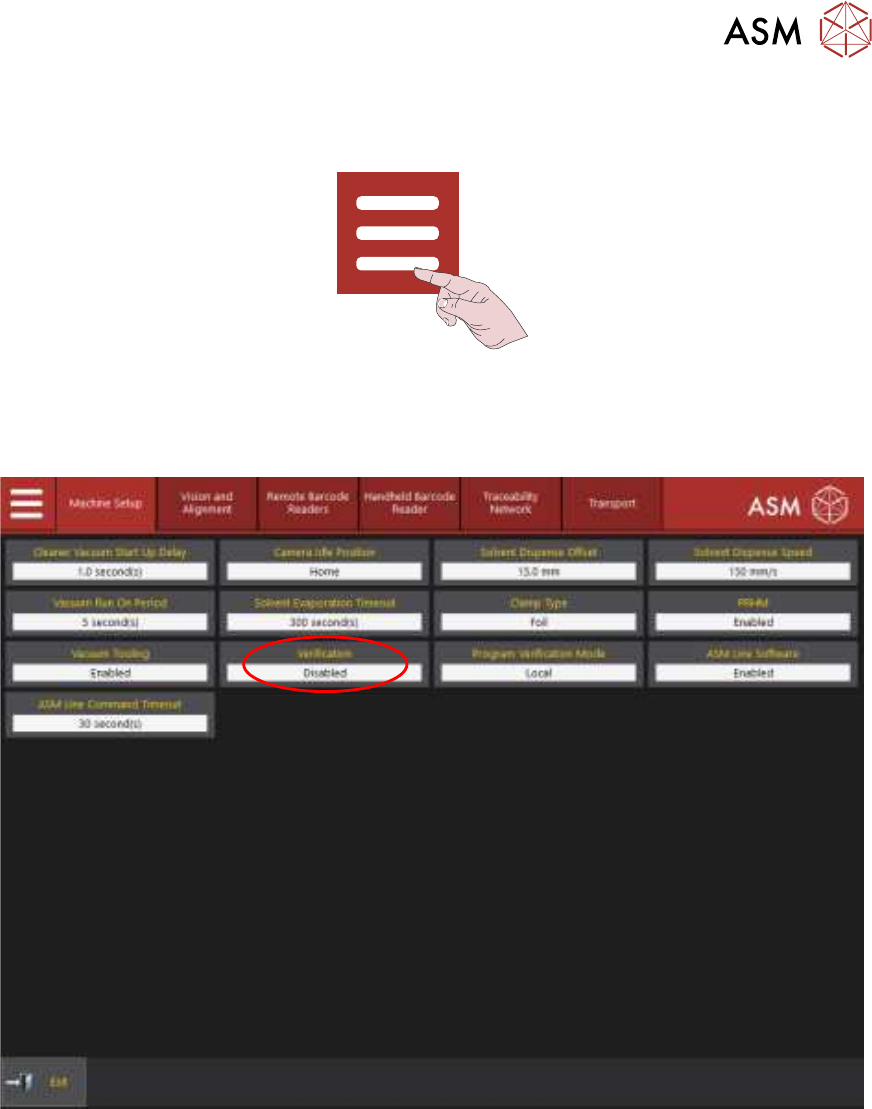

1. Select the Menu icon.
2. Select Service.
3. Select Machine Setup.
4. Select the Verification parameter.
5. Select Enabled.
6. Select Accept.
1 VERIFICATION AND TRACEABILITY
1.2 ENABLE VERIFICATION
8 STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020

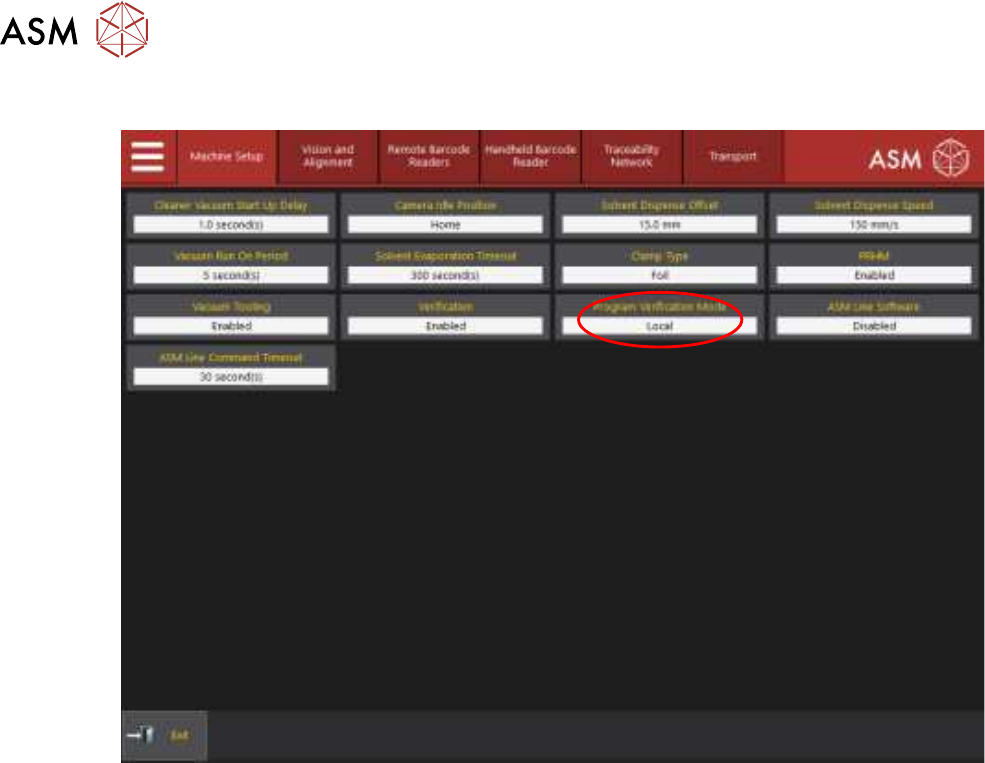

7. Select the Program Verification Mode parameter.
8. Select Remote Verification or Local.
NOTE
Selecting Local disables program verification.
9. Select Accept.
If remote verification or traceability is going to be used, ASM Line Software must be enabled. To
enable ASM Line Software, go to the next section Enable ASM Line Software otherwise select
Exit.
1 VERIFICATION AND TRACEABILITY
1.2 ENABLE VERIFICATION
STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 9
1.2.1 Enable ASM Line Software
To use remote verification or traceability, check the ASM Line Software parameter is enabled. To
enable ASM Line Software, use the following procedure:
NOTE
This parameter may already be enabled and in use by another software application.
1. Select the ASM Line Software parameter.
2. Select Enabled.
3. Select Accept.
4. Select Exit.
1.2.2 Enable Board Verification
1. Select the Menu icon.
2. Select Programming.
3. Select Edit.
4. Select the side that needs to be verified (Top Side or Bottom Side).
5. Select Edit.
