1 VERIFICATION AND TRACEABILITY 1.3 VERIFICATION ITEMS 12 STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 1.3 VERIFICATION ITEMS The following is a default list of items that may be used for verificatio…
1 VERIFICATION AND TRACEABILITY
1.2 ENABLE VERIFICATION
STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 11
1.2.3 Enable Item Verification
1. Select the Menu icon.
2. Select Programming.
3. The current loaded program is highlighted.
4. Select Edit.
5. Select Top Side or Bottom Side.
6. Select Edit.
7. Select Item Verification to display the following page:
The status column shows a green tick of items that are enabled and blank when disabled.
Edit Rule Sets
Edit Rule Sets
Edit Rule Sets
Edit Rule Sets
8. Select at the right hand side of the item, in the Status column, to change the status.
9. Select Save And Exit.
10. Select Save And Exit.
11. Select Exit.
1 VERIFICATION AND TRACEABILITY
1.3 VERIFICATION ITEMS
12 STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020
1.3 VERIFICATION ITEMS
The following is a default list of items that may be used for verification:
●
Board Clamp Front
●
Board Clamp Rear
●
Cleaner Fabric
●
Cleaner Solvent
●
Dedicated Tooling
●
Material
●
Operator Name
●
Print Medium
●
Print Medium Cartridge/Jar
●
Stencil
●
Spatula
●
Squeegee Blade Front
●
Squeegee Blade Rear
●
Squeegee Holder Front
●
Squeegee Holder Rear
●
Work Order
The permitted rules for the verification items may be a barcode, a serial number or a name. Care
must be taken when entering rules as these must be entered exactly when verification is reques-
ted.
Each verifiable item may have multiple rules associated with it allowing, for example, stencils from
two different manufacturers to be used on the same product run.
1.3.1 Create Item
A default list of items was included when the software was installed on the printer, items can be
created, edited or deleted. This section details creating a new item:
1. Select the Menu icon.
2. Select Programming.
3. Select Verification Item Definitions.
1 VERIFICATION AND TRACEABILITY
1.3 VERIFICATION ITEMS
STANDALONE MANUAL VERIFICATION AND TRACEABILITY TQ SERIES 07/2020 13
4. Select Create.

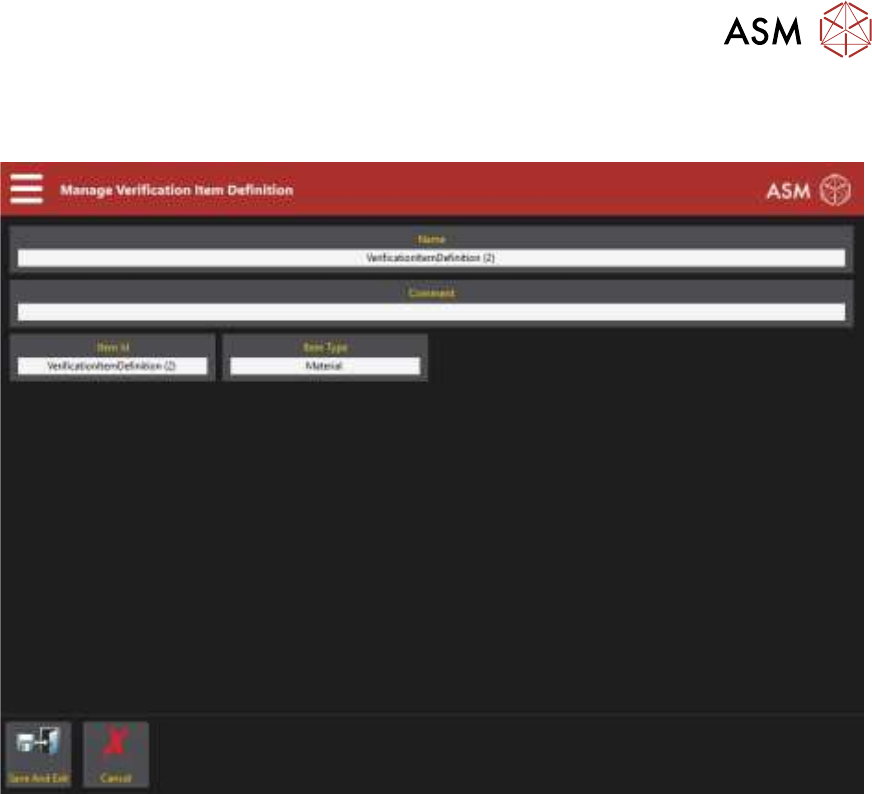

The following page is displayed:
5. Select the Name parameter.
6. Enter a name for the item.
7. Select Accept.
8. Select the Comment parameter.
9. Enter a comment if required.
This is displayed next to the item name in the table on the previous page.
10. Select Accept.
11. Select the Item ID parameter.
12. Enter the Item ID.
13. Select Accept.
14. Select the Item Type parameter and select the correct type using the table at the end of this
procedure for guidance.
15. Select Accept.
16. Select Save And Exit.
17. Select Exit.
