17,4 10,1 70 / 94 1 1,8 35,8 G-17 Analogue lev er-type dial test indicators, short trav el MPEe: Indication error on the measuring range (retractable plunger) MPEtot: Indication error on the measuring range (retractable …

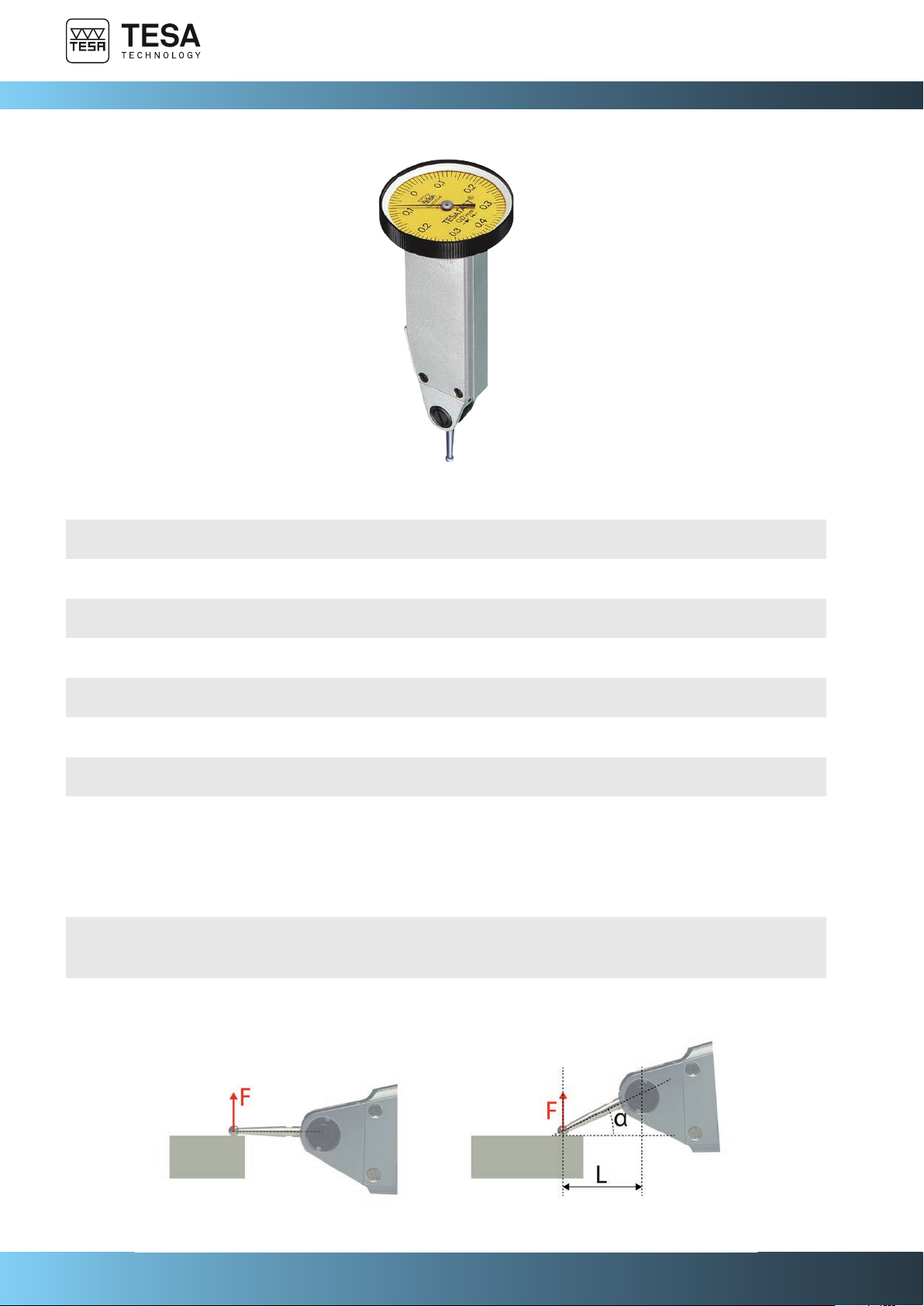

G-16

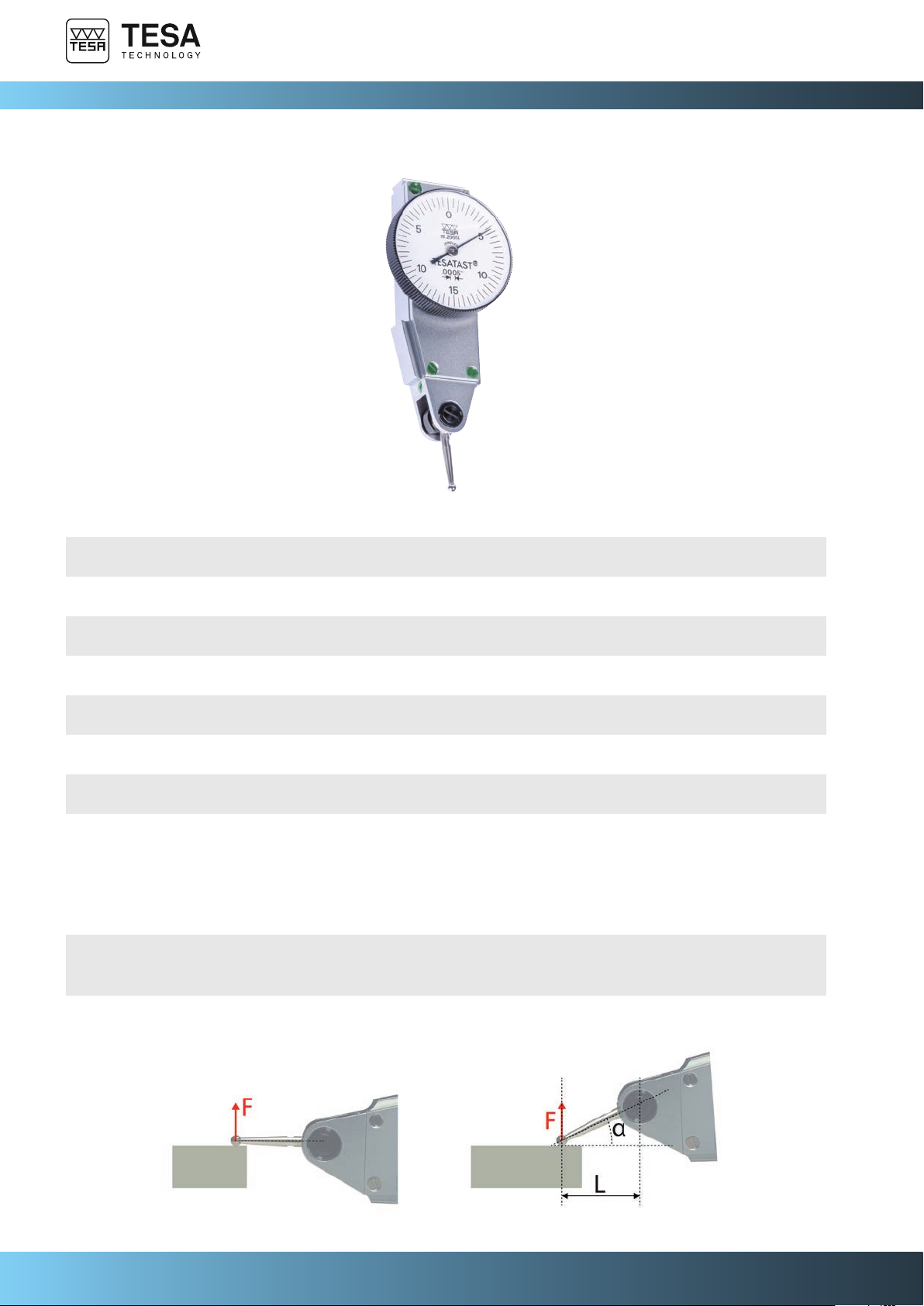

Standard
Dimensions : ISO 9493
Performances : DIN 2270
Units in
Material
Housing: Metal
Ball inserts: Tungsten carbide
Dimensions Insert thread: M1,4
Reading direction Clockwise and anti-clockwise
Dial Rotating dial
Shockproof mechanism With
Remark(s)
If the position of the insert is parallel to the surface of the workpiece (left figure), the
1.1 ratio is accurate. Therefore, the reading does not require any correction. In the
opposite case (right figure), the effective length of the lever changes. The readings
must then be corrected. In this regard, please refer to the user manual.
The original inserts mounted on the instrument can be replaced with inserts that have
either the same or a different ball diameter, provided that the nominal length of the
insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Rigid stem Ø 8 mm
User manual
Declaration of conformity
01820014

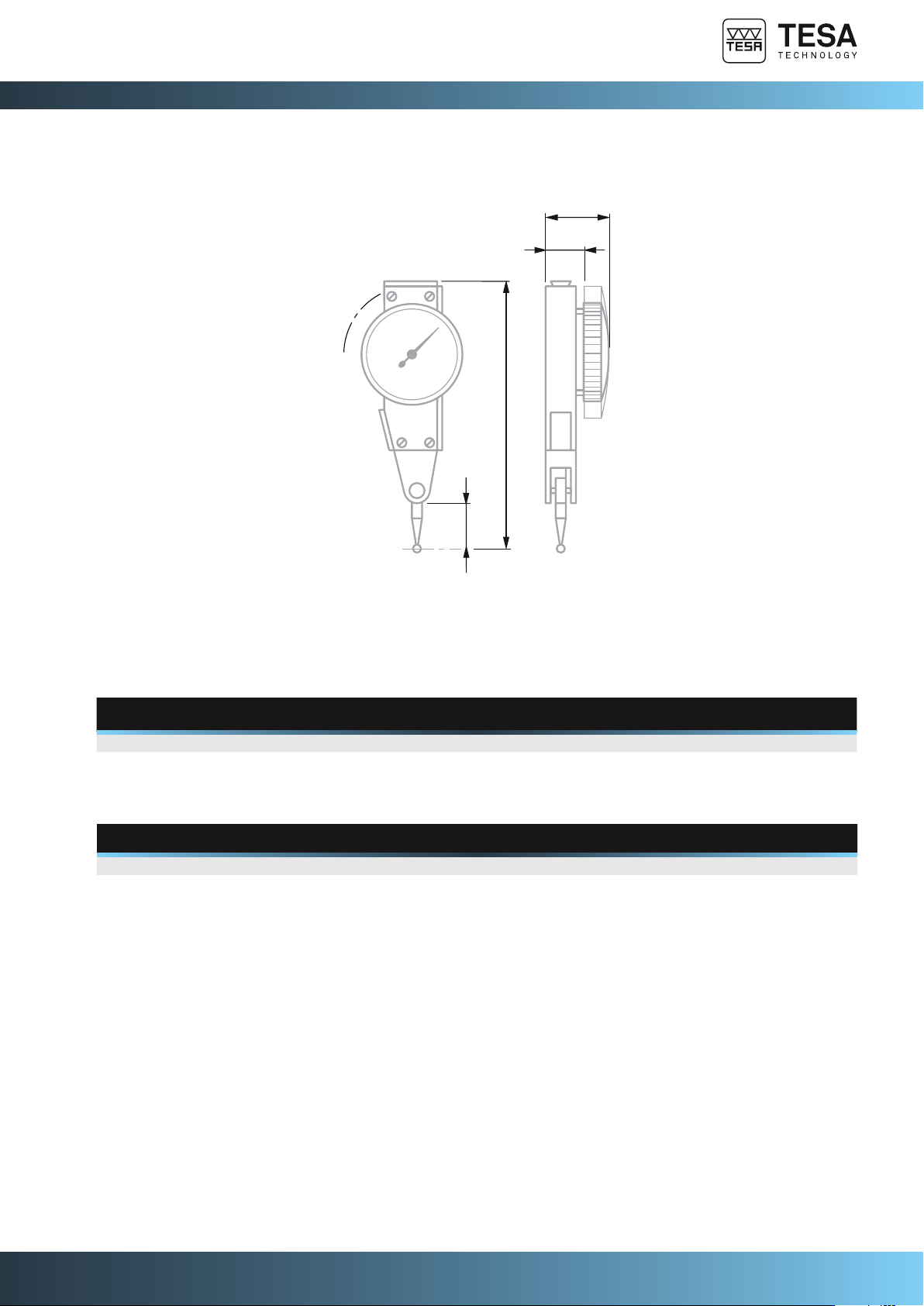

Analogue lever-type dial test indicators, short travel
TESATAST series, lateral, imperial
17,4
10,1
70 / 94
11,8
35,8
G-17
Analogue lever-type dial test indicators, short travel
MPEe: Indication error on the measuring range (retractable plunger)
MPEtot: Indication error on the measuring range (retractable and extendable plunger)
MPEp 10 div: Deviation span within the local measuring span
MPEr: Repeatability of the indication error
MPEh: Hysteresis of indication error
Article
number
MPEtot, retractable and
extendable plunger, µ-in
MPEe, retractable
plunger, µ-in
MPEp, 10 div
µ-in
MPEh
µ-in
MPEr
µ-in
01820014 650 500 250 150 150
Article
number
Serie s
Resolution
in
Measuring range
in
Ø Dial
in
Circular scale Probe length
in
Measuring force
N
01820014 TESATAST .0005 .03 1.1 0 ÷ 15 ÷ 0 1/2 0,15
G-18
Standard
Dimensions : ISO 9493
Performances : DIN 2270
Units mm
Material
Housing: Metal
Ball inserts: Tungsten carbide
Dimensions Insert thread: M1,4
Reading direction Clockwise and anti-clockwise
Dial Rotating dial
Shockproof mechanism With
Remark(s)
If the position of the insert is parallel to the surface of the workpiece (left figure), the
1.1 ratio is accurate. Therefore, the reading does not require any correction. In the
opposite case (right figure), the effective length of the lever changes. The readings
must then be corrected. In this regard, please refer to the user manual.
The original inserts mounted on the instrument can be replaced with inserts that have
either the same or a different ball diameter, provided that the nominal length of the
insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Rigid stem Ø 8 mm
User manual
Declaration of conformity
01810204
Analogue lever-type dial test indicators, short travel
TESATAST series, perpendicular, metric
