G-34 Standard Dimensions : ISO 9493 Performances : Factory standard Units mm Material Housing: Metal Ball inserts: Tungsten carbide Dimensions Insert thread: M1,6 Reading direction Clockwise Dial Rotating dial Remark(s) …

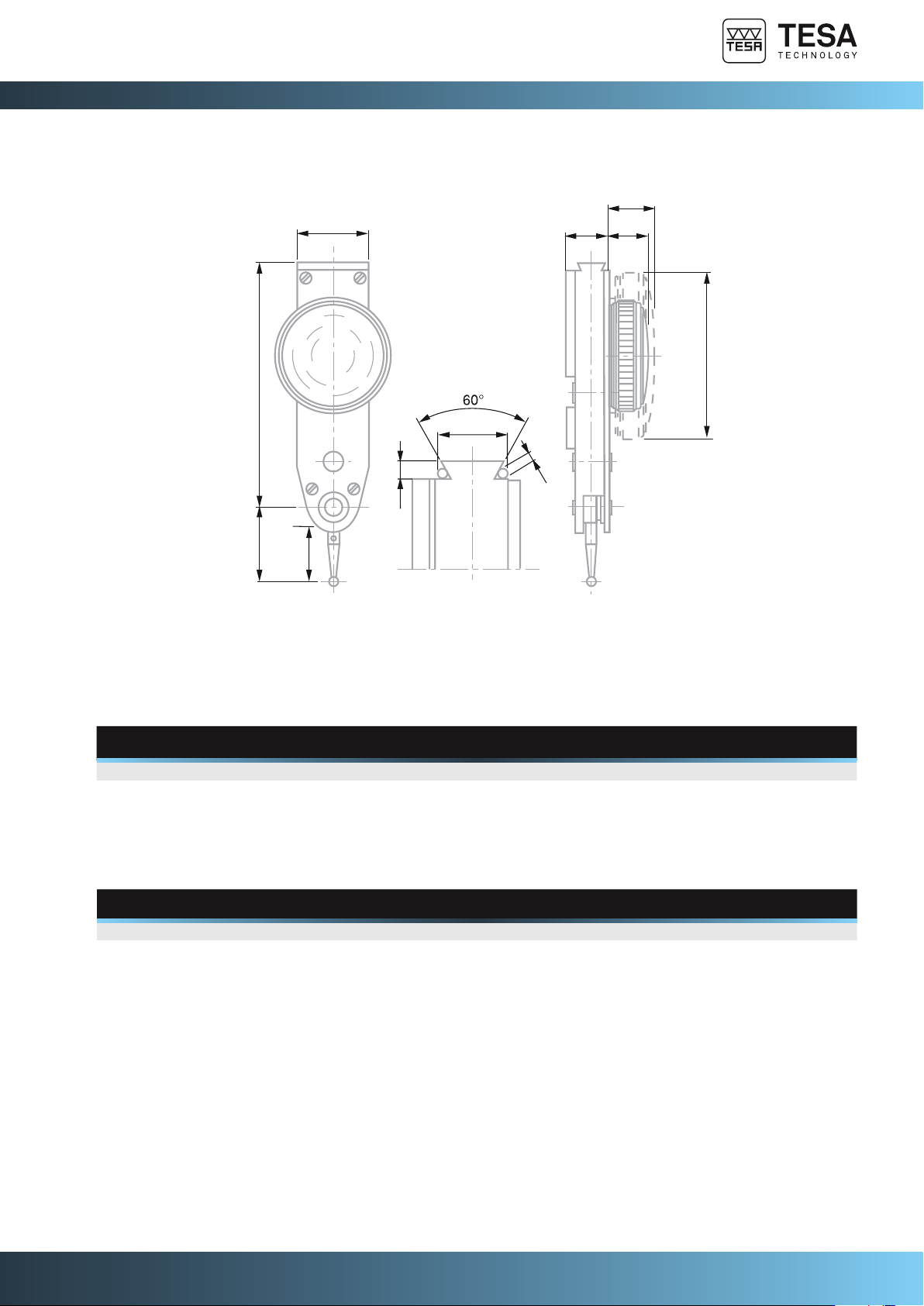

6.38
ø 0.79
1.6
8
36 35.17 9.4
Ø 27
Ø 40
33.2
10.65
32.26
G-33
Analogue lever-type dial test indicators, long travel
MPEe: Indication error on the measuring range (retractable plunger)
MPEtot: Indication error on the measuring range (retractable and extendable plunger)
MPEp 1/10: Indication error on 1/10 rotation
MPEp 1/2: Indication error on 1/2 rotation
MPEp 1: Indication error on 1 rotation
MPEr: Repeatability of the indication error
MPEh: Hysteresis of indication error
Article
number
MPEtot, retractable and
extendable plunger, µm
MPEe, retractable
plunger, µm
MPEp 1
µm
MPEp 1/2
µm
MPEp 1/10
µm
MPEh
µm
MPEr
µm
01810408 26 20 12 10 3 7 3
Article
number
Series
Resolution
mm
Measuring range,
mm
Ø Dial
mm
Travel /
revolution, mm
Circular
scale
Probe length
mm
Measuring
force, N
01810408 P-LINE 222GL 0,01 3 40 1 0 ÷ 50 ÷ 100 36 0,2
G-34
Standard
Dimensions : ISO 9493
Performances : Factory standard
Units mm
Material
Housing: Metal
Ball inserts: Tungsten carbide
Dimensions Insert thread: M1,6
Reading direction Clockwise
Dial Rotating dial
Remark(s)
If the position of the insert is parallel to the surface of the workpiece (left figure), the
1.1 ratio is accurate. Therefore, the reading does not require any correction. In the
opposite case (right figure), the effective length of the lever changes. The readings
must then be corrected. In this regard, please refer to the user manual.
The original inserts mounted on the instrument can be replaced with inserts that have
either the same or a different ball diameter, provided that the nominal length of the
insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Wrench for insert mounting
Rigid stem Ø 8 mm
Rigid stem Ø 4 mm
User manual
Measurement report
Declaration of conformity
01810409
Analogue lever-type dial test indicators, long travel
P-LINE series, lateral, metric
6.38
1.6
Ø 0.79
17
58.636
Ø 40
10.65
9.4
10.1
32.26
G-35
Analogue lever-type dial test indicators, long travel
MPEe: Indication error on the measuring range (retractable plunger)
MPEtot: Indication error on the measuring range (retractable and extendable plunger)
MPEp 1/10: Indication error on 1/10 rotation
MPEp 1/2: Indication error on 1/2 rotation
MPEp 1: Indication error on 1 rotation
MPEr: Repeatability of the indication error
MPEh: Hysteresis of indication error
Article
number
MPEtot, retractable and
extendable plunger, µm
MPEe, retractable
plunger, µm
MPEp 1
µm
MPEp 1/2
µm
MPEp 1/10
µm
MPEh
µm
MPEr
µm
01810409 26 20 12 10 3 7 3
Article
number
Serie s
Resolution
mm
Measuring
range, mm
Ø Dial
mm
Travel /
revolution, mm
Circular scale
Probe length
mm
Measuring
force, N
01810409 P-LINE 232GL 0,01 3 40 1 0 ÷ 50 ÷ 100 36 0,2
