96,5 ~16 16,5 ø 4 ø 30 ø 37, 5 29 G-23 Analogue lev er-type dial test indicators, robust construction MPEtot: Indication error on the measuring range (retractable and extendable plunger) MPEp 1: Indication error on 1 rot…
G-22
A B B
Standard
Dimensions : ISO 9493
Performances : Factory standard
Units mm
Material
Housing: Metal
Ball inserts: Tungsten carbide
Reading direction Clockwise and anti-clockwise
Dial Rotating dial
Remark(s)

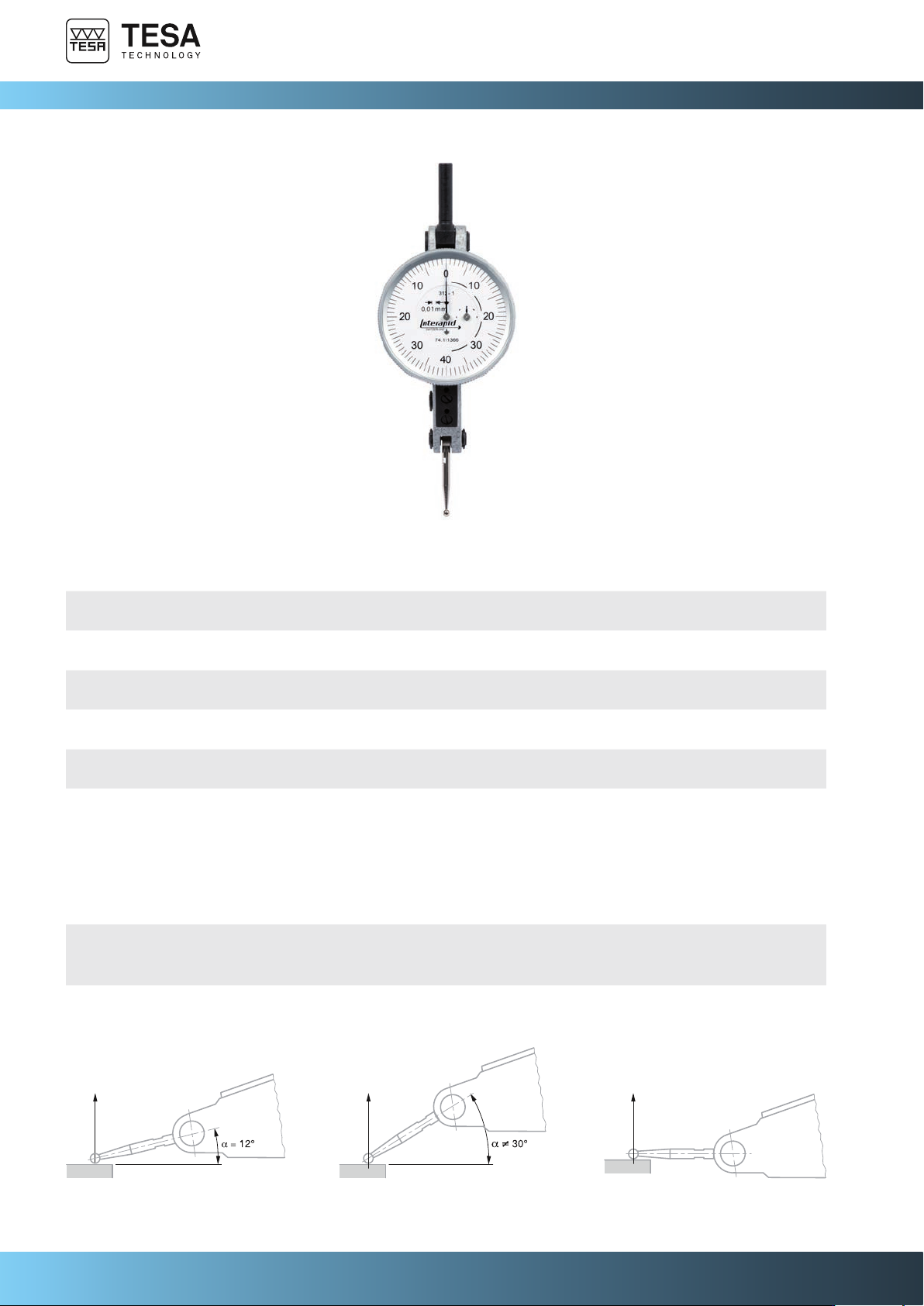

The INTERAPID 312 indicatorsare designed to read the measured value without
correction when the probe is positioned at an angle α of 12° relative to the surface
of the workpiece (Fig. A). For any other angle, including the parallel position of the
insert, the readings require correction (Fig. B). Please refer to the user manual on this
subject.
The original inserts mounted on the instrument can be replaced with inserts that have
either the same or a different ball diameter, provided that the nominal length of the
insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Wrench for insert mounting
Measurement report
Declaration of conformity
074111366

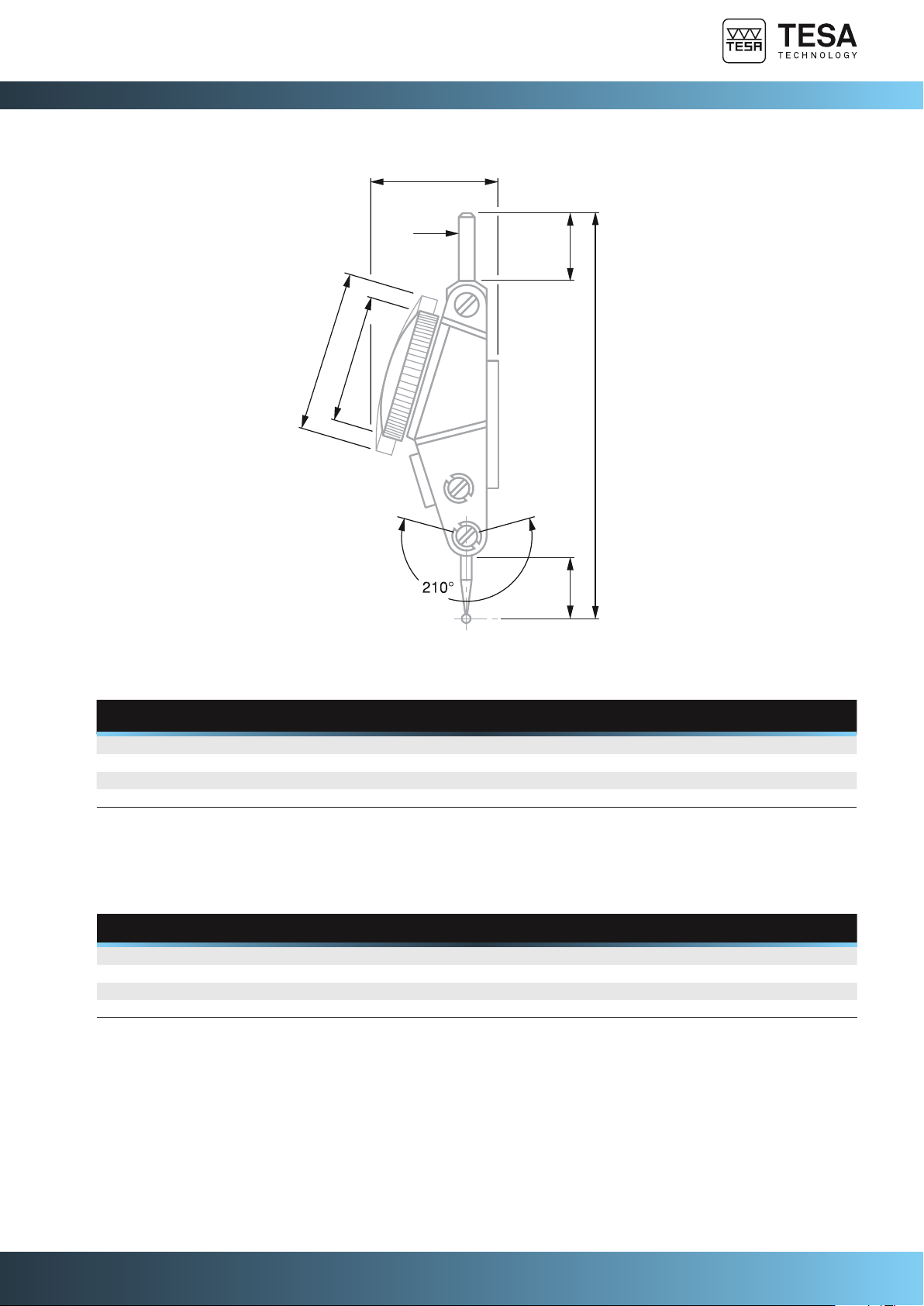

Analogue lever-type dial test indicators, robust construction
INTERAPID 312 series, standard, metric
96,5
~16
16,5
ø
4
ø 30
ø 37,
5
29
G-23
Analogue lever-type dial test indicators, robust construction
MPEtot: Indication error on the measuring range (retractable and extendable plunger)
MPEp 1: Indication error on 1 rotation
MPEp 2: Indication error on 2 rotations
MPEr: Repeatability of the indication error
MPEh: Hysteresis of indication error
Article
number
MPEtot, retractable and
extendable plunger, µm
MPEp 2
µm
MPEp 1
µm
MPEh
µm
MPEr
µm
074111366 23 20 10 3 3
074111367 23 20 10 3 3
074111368 10 8 4 2 1
074111369 10 8 4 2 1
Article
number
Series
Resolution
mm
Measuring range
mm
Ø Dial
mm
Travel /
revolution , mm
Circular
scale
Probe length
mm
Measuring
force, N
074111366 INTERAPID 312-1 0,01 1,6 37,5 0,8 0 ÷ 40 ÷ 0 16,5 0,12
074111367 INTERAPID 312-2 0,01 1,6 30 0,8 0 ÷ 40 ÷ 0 16,5 0,12
074111368 INTERAPID 312-3 0,002 0,4 37,5 0,2 0 ÷ 10 ÷ 0 15,2 0,25
074111369 INTERAPID 312-4 0,002 0,4 30 0,2 0 ÷ 10 ÷ 0 15,2 0,25
A B B
G-24
Standard
Dimensions : ISO 9493
Performances : Factory standard
Units in
Material
Housing: Metal
Ball inserts: Tungsten carbide
Reading direction Clockwise and anti-clockwise
Dial Rotating dial
Remark(s)

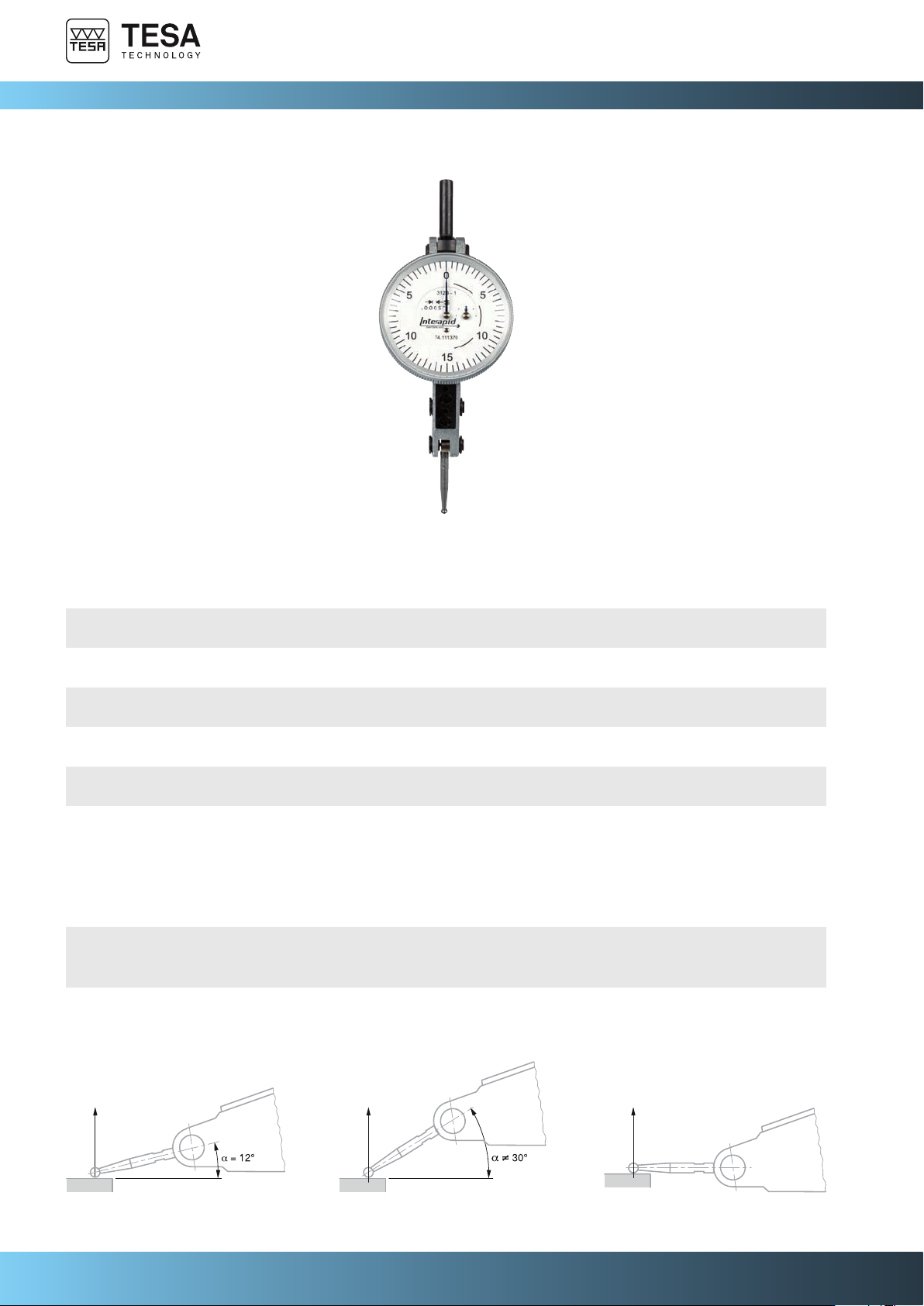

The INTERAPID 312 indicators are designed to read the measured value without
correction when the probe is positioned at an angle α of 12° relative to the surface of
the workpiece (Fig. A). For any other angle, including the parallel position of the insert,
the readings require correction (Fig. B). Please refer to the user manual regarding this.
The original inserts mounted on the instrument can be replaced with inserts that have
either the same or a different ball diameter, provided that the nominal length of the
insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Wrench for insert mounting
Measurement report
Declaration of conformity
074111370
Analogue lever-type dial test indicators, robust construction
INTERAPID 312 series, standard, imperial
