G-40 01639055 Article number Designation Composed of 01639055 Set with magnetic support + TESA T AST 01810005 TESA T AST analogue lever-type dial test indi- cator, standard, 0,8 mm, 0,01 mm, Ø 28 mm 01639010 Support with…

100%1 / 48
G-39
ø
L
2
M1,6
The original insert mounted on P-LINE indicators can be replaced without issue by inserts with either the same or different ball diameter, provided
that the nominal length is respected.
Article
number
Material
Fixing
mm
Diameter
mm
L1
mm
L2
mm
01866014 Tungsten carbide M1,6 0,8 18 14,26
01866003 Tungsten carbide M1,6 2 18 14,26
01866021 Tungsten carbide M1,6 3 18 14,26
01866016 Tungsten carbide M1,6 0,8 36 32,26
01866004 Tungsten carbide M1,6 2 36 32,26
01866023 Tungsten carbide M1,6 3 36 32,26
01866015 Tungsten carbide M1,6 0,8 45 41,26
01866006 Tungsten carbide M1,6 2 45 41,26
01866026 Tungsten carbide M1,6 2 18 14,26
01866027 Ruby M1,6 2 36 32,26
L1 = axial length from ball to pivot
01866014

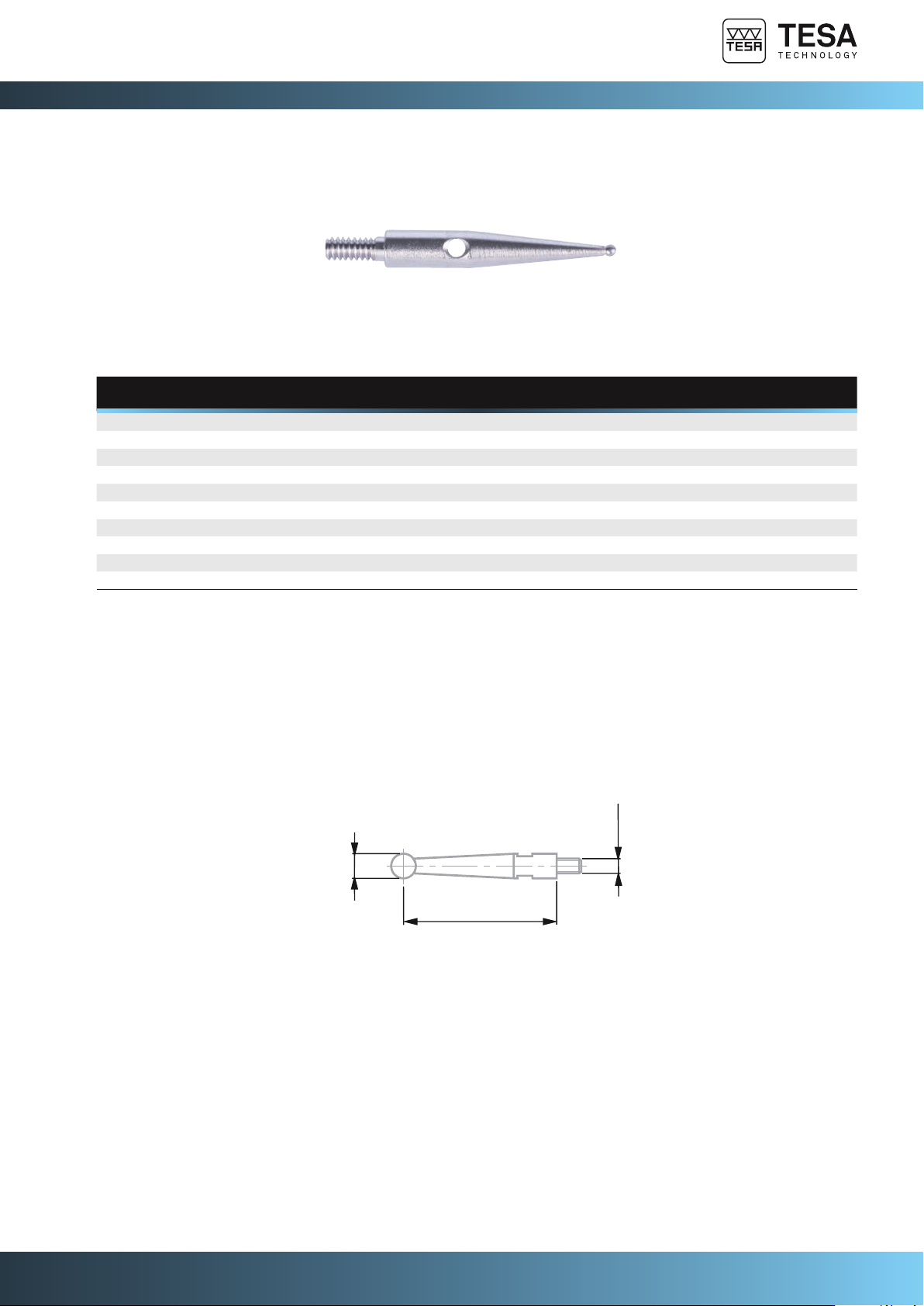

Inserts
Ball tip inserts for metric P-LINE indicators
G-40
01639055
Article
number
Designation Composed of
01639055 Set with magnetic support + TESATAST
01810005 TESATAST analogue lever-type dial test indi-
cator, standard, 0,8 mm, 0,01 mm, Ø 28 mm
01639010 Support with magnetic base, articulated arm

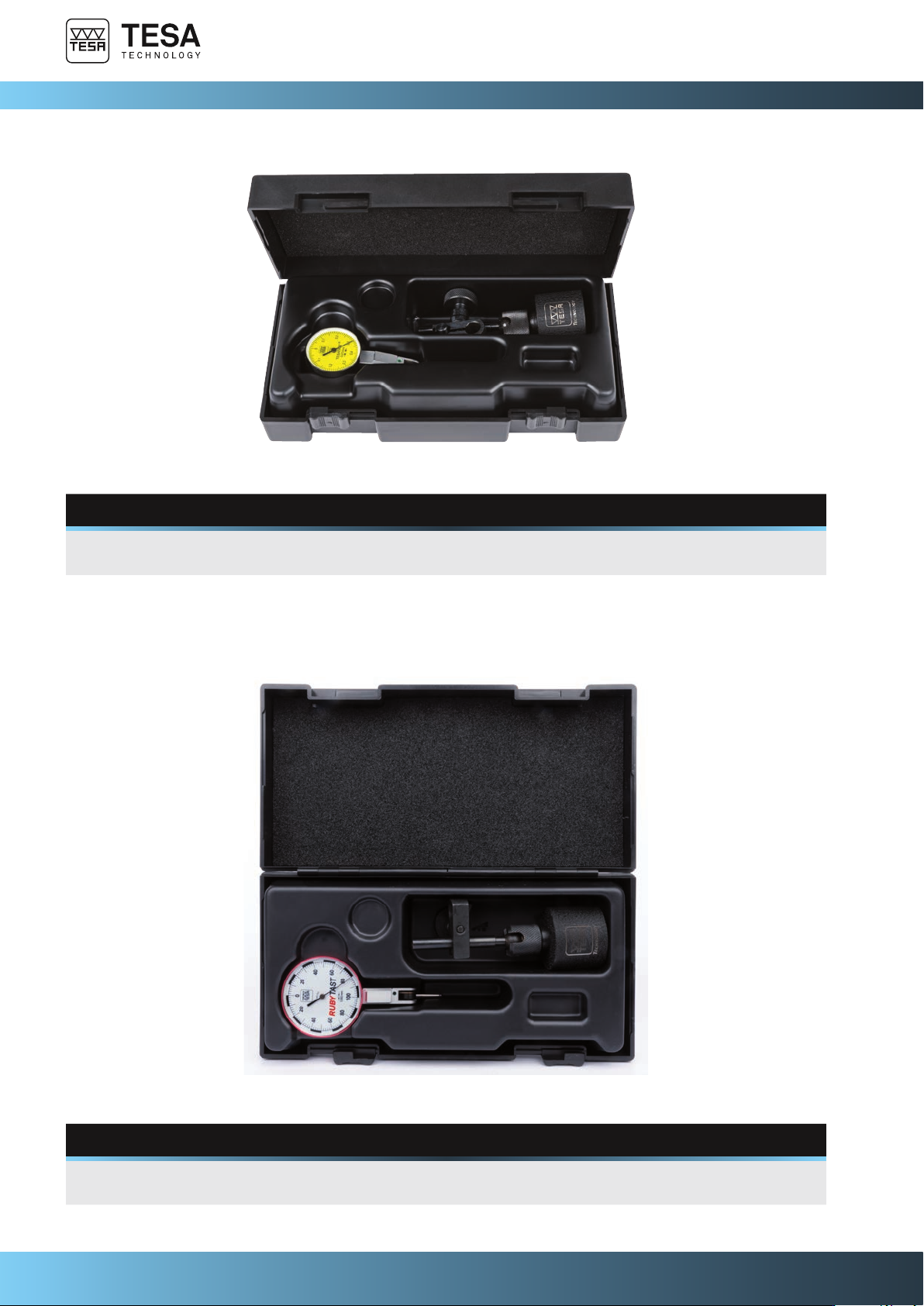

Sets of lever-type test indicator + accessories
TESATAST indicator, standard, metric + magnetic support
01639056
Article
number
Designation Composed of
01639056 Set with magnetic support + RUBYTAST
01811001 RUBYTAST analogue lever-type dial test indicator, standard,
0,2 mm, 0,002 mm, Ø 38 mm
01639010 Support with magnetic base, articulated arm
RUBYTAST indicator, standard, metric + magnetic support
G-41

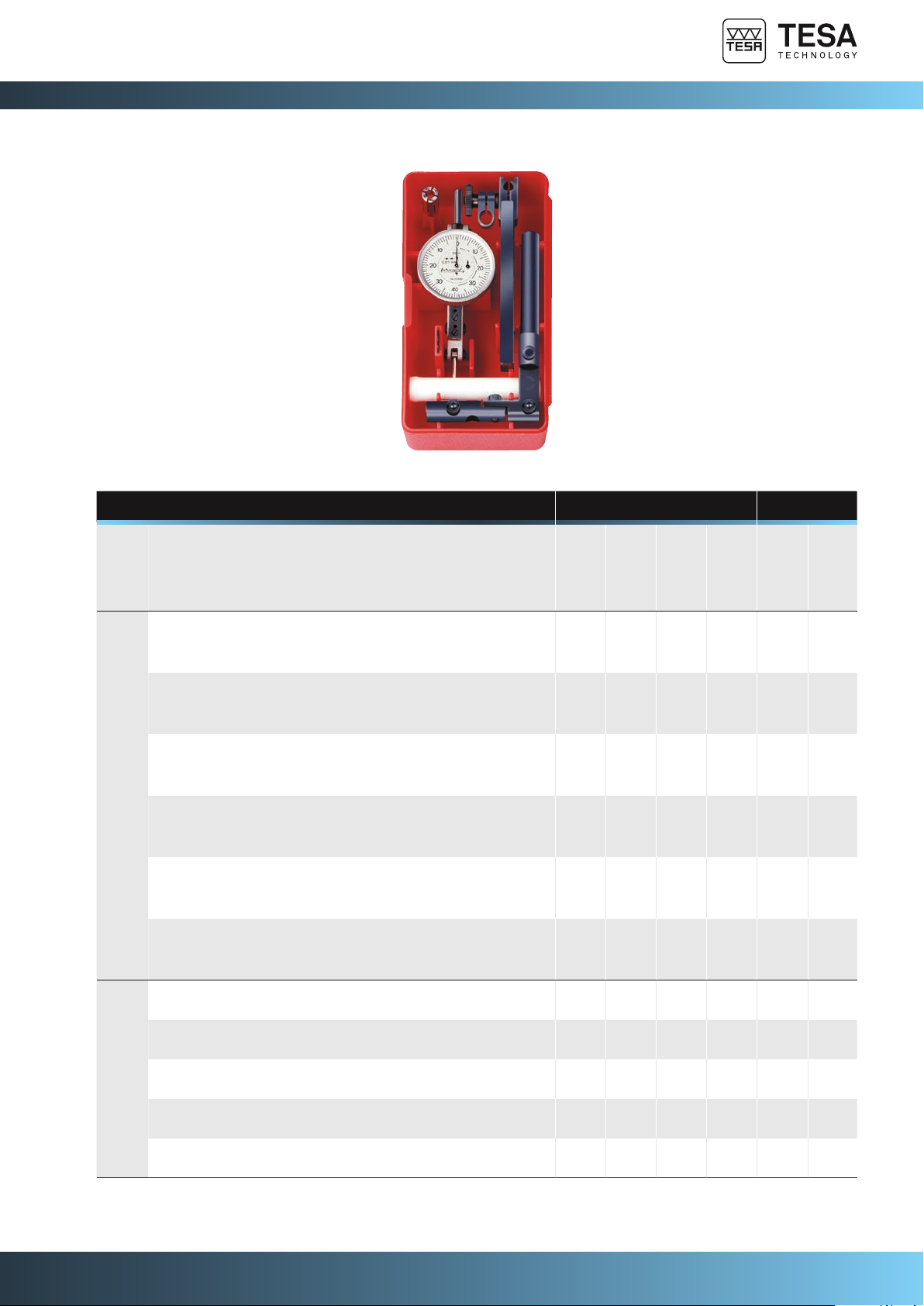

Sets with INTERAPID 312 and accessories, imperial
With standard indicator
With perpendi-
cular indicator
Family
Part
number
Description
074111508
074111509
074111510
074111511
074111513
074111514
Lever-type dial test indicator
074111370
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/2 in
Application range: .06 in
Resolution: .0005 in
●
074111371
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/5 in
Application range: .06 in
Resolution: .0005 in
●
074111372
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/2 in
Application range: .016 in
Resolution: .0001 in
●
074111373
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/5 in
Application range: .016 in
Resolution: .0001 in
●
074111377
INTERAPID 312, perpendicular, with ball insert Ø 2 mm
Dial, Ø: 1-1/2 in
Application range: .06 in
Resolution: .0005 in
●
074111378
INTERAPID 312, perpendicular, with ball insert Ø 2 mm
Dial, Ø: 1-1/5 in
Application range: .06 in
Resolution: .0005 in
●
Accessories
074106331
Swivel holder with dovetail grip, Ø 4 and Ø 5,5 mm,
bar = 6 x 12,6 x 76 mm
● ● ● ● ● ●
074106931
Swivel holder with dovetail grip, Ø 4 and Ø 7 mm,
shaft = Ø 3/8 x 5-1/4 in
● ● ● ● ● ●
074108943 Reducing sleeve, Ø 3/8 in - Ø 5/32 in
● ● ● ● ● ●
074111474 Case for measuring inserts
● ● ● ● ● ●
01860307 Key for inserts
● ● ● ● ● ●
Sets of lever-type test indicator + accessories
