G-7 Metric analogue lev er-type dial test indicators, robust c onstruction Lev er-type dial test indicators Model Article number Type Resolution mm Measuring range, mm Dial, Ø mm Circular scale Probe length mm INTERAPID …

100%1 / 48
G-6
Metric analogue lever-type dial test indicators, short travel
Lever-type dial test indicators
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Circular scale
Probe length
mm
TESATAST 01810007 Standard 0,01 0,5 28 0 ÷ 0,25 ÷ 0 36,53
TESATAST 01810008 Standard 0,01 0,5 38 0 ÷ 0,25 ÷ 0 36,53
TESATAST 01810005 Standard 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810006 Standard 0,01 0,8 38 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810009 Standard 0,002 0,2 28 0 ÷ 100 ÷ 0 12,53
TESATAST 01810010 Standard 0,002 0,2 38 0 ÷ 100 ÷ 0 12,53
TESATAST S18001695 Standard 0,001 0,2 38 0 ÷ 100 ÷ 0 12,53
RUBYTAST 01811000 Standard 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
RUBYTAST 01811001 Standard 0,002 0,2 38 0 ÷ 100 ÷ 0 12,53
TESATAST 01810205 Perpendicular 0,01 0,5 28 0 ÷ 0,25 ÷ 0 36,53
TESATAST 01810204 Perpendicular 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810304 Perpendicular 0,002 0,2 38 0 ÷ 100 ÷ 0 12,53
TESATAST 01810011 Lateral 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810012 Lateral 0,02 2 38 0 ÷ 1 ÷ 0 36,53
TESATAST 01810013 Lateral 0,002 0,2 28 0 ÷ 100 ÷ 0 12,53
Imperial analogue lever-type dial test indicators, short travel
Model Article number Type
Resolution
in
Measuring
range, in
Dial, Ø
in
Circular scale
Probe length
in
TESATAST 01820010 Standard .001 .03 1.1 0 ÷ 15 ÷ 0 1/2
TESATAST 01820009 Standard .0005 .02 1.5 0 ÷ 10 ÷ 0 1-7/16
TESATAST 01820006 Standard .0005 .03 1.1 0 ÷ 15 ÷ 0 1/2
TESATAST 01820007 Standard .0005 .03 1.5 0 ÷ 15 ÷ 0 1/2
TESATAST 01820011 Standard .0001 .008 1.1 0 ÷ 4 ÷ 0 1/2
TESATAST 01820012 Standard .0001 .008 1.5 0 ÷ 4 ÷ 0 1/2
TESATAST 01820013 Standard .00005 .008 1.5 0 ÷ 4 ÷ 0 1/2
TESATAST 01820014 Lateral .0005 .03 1.1 0 ÷ 15 ÷ 0 1/2
Metric analogue lever-type dial test indicators, long travel
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Circular scale
Probe length
mm
P-LINE 01810400 Standard 0,01 1,5 27 0 ÷ 25 ÷ 50 18
P-LINE 01810401 Standard 0,01 1,5 40 0 ÷ 25 ÷ 50 18
P-LINE 01810402 Standard 0,01 3 27 0 ÷ 50 ÷ 100 36
P-LINE 01810403 Standard 0,01 3 40 0 ÷ 50 ÷ 100 36
P-LINE 01810404 Standard 0,002 0,6 27 0 ÷ 5 ÷ 10 18
P-LINE 01810405 Standard 0,002 0,6 40 0 ÷ 5 ÷ 10 18
P-LINE 01810406 Standard 0,002 1,2 40 0 ÷ 10 ÷ 20 36
P-LINE 01810407 Standard 0,001 0,6 40 0 ÷ 5 ÷ 10 18
P-LINE 01810408 Perpendicular 0,01 3 40 0 ÷ 50 ÷ 100 36
P-LINE 01810409 Lateral 0,01 3 40 0 ÷ 50 ÷ 100 36
G-7
Metric analogue lever-type dial test indicators, robust construction
Lever-type dial test indicators
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Circular scale
Probe length
mm
INTERAPID 312 074111366 Standard 0.01 1,6 37,5 0 ÷ 40 ÷ 0 16,5
INTERAPID 312 074111367 Standard 0.01 1,6 30 0 ÷ 40 ÷ 0 16,5
INTERAPID 312 074111368 Standard 0.002 0,4 37,5 0 ÷ 10 ÷ 0 15,2
INTERAPID 312 074111369 Standard 0.002 0,4 30 0 ÷ 10 ÷ 0 15,2
INTERAPID 312 074111375 Perpendicular 0.01 1,6 37,5 0 ÷ 40 ÷ 0 16,5
INTERAPID 312 074111376 Perpendicular 0.01 1,6 30 0 ÷ 40 ÷ 0 16,5
Imperial analogue lever-type dial test indicators, robust construction
Model Article number Type
Resolution
in
Measuring
range
Dial, Ø
in
Circular scale
Probe length
in
INTERAPID 312 074111374 Standard .001 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111370 Standard .0005 .06 1-1/2 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111371 Standard .0005 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111965 Standard .0005 .06 1-1/2 0 ÷ 15 ÷ 0 2.675
INTERAPID 312 074111372 Standard .0001 .016 1-1/2 0 ÷ 4 ÷ 0 .65
INTERAPID 312 074111373 Standard .0001 .016 1-1/5 0 ÷ 4 ÷ 0 .65
INTERAPID 312 074111379 Perpendicular .001 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111377 Perpendicular .0005 .06 1-1/2 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111378 Perpendicular .0005 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111958 Perpendicular .0005 .06 1-1/2 0 ÷ 15 ÷ 0 2.77
INTERAPID 312 074111957 Perpendicular .0001 .016 1-1/2 0 ÷ 4 ÷ 0 .65
Digital lever-type dial test indicator
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Degree of
protection
Number of
buttons
DIALTRONIC BT 01830004 Standard 0,001 0,8 45 IP54 3

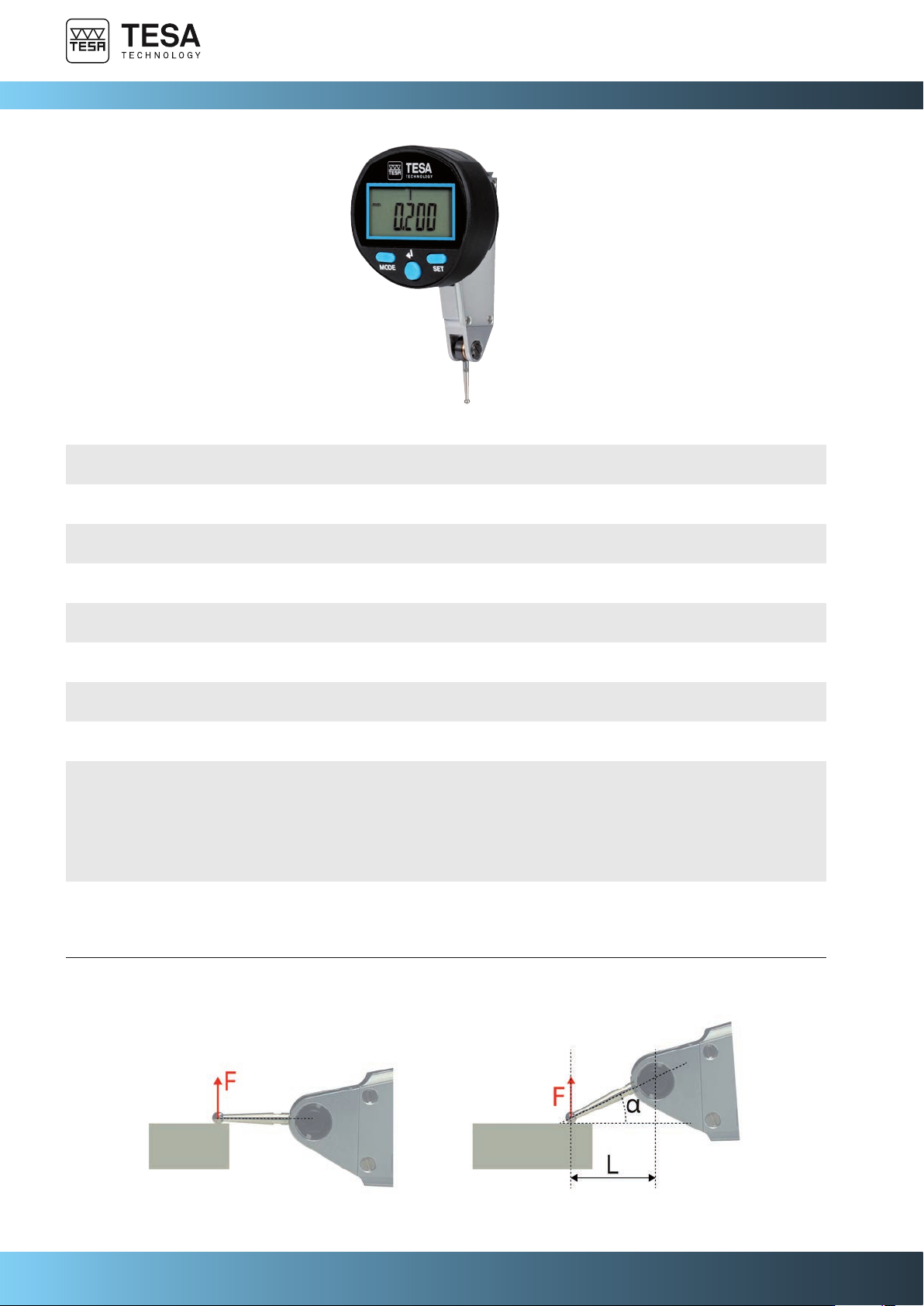

G-8
Standard
Dimensions: Factory standard
Performances: Factory standard
Measuring range 0,8 mm
Units mm / in
Resolution 0,001 mm / .00005 in
Material
Housing: Metal
Inserts: Tungsten carbide
Dimensions Insert thread: M1,4
Degree of protection IP54
Data output(s) Bluetooth
®
Remark(s)
If the position of the insert is parallel to the surface of the workpiece (left figure),
the 1.1 ratio is accurate. Therefore, the reading does not require any correction.
In the opposite case (right figure), the effective length of the lever changes. The
readings must then be corrected. In this regard, please refer to the user manual
The original inserts mounted on the instrument can be replaced with inserts that
have either the same or a different ball diameter, provided that the nominal length
of the insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Wrench for insert mounting
Rigid stem Ø 8 mm
Measurement report
Quick start manual
01830004
Digital lever-type dial test indicators
DIALTRONIC series
