G-38 Article number Designation 01860307 Key for lever-type indicator Accessories The original inserts mounted on INTERAPID 312 can be replaced without issue by inserts with either the same or different ball diameter, pr…

100%1 / 48
G-37
Article
number
Designation
01860307 Key for lever-type indicator
Accessories
The original inserts mounted on INTERAPID 312 indicators can be replaced without issue by inserts with either the same or different ball diameter,
provided that the nominal length is respected.
The length of inserts 074106358, 074106360, 074110494 and 074110508 modifies the amplification factor of the lever system. Therefore, the read
values must be doubled.
Article
number
Material
Fixing
mm
Diameter
mm
Probe length
mm
Compatibility
074107897 Steel M1,7 0,8 16,5 INTERAPID 312, resolution 0,01 mm
074107895 Steel M1,7 1,5 16,5 INTERAPID 312, resolution 0,01 mm
074107893 Steel M1,7 2 16,5 INTERAPID 312, resolution 0,01 mm
074110493 Steel M1,7 0,8 15,2 INTERAPID 312, resolution 0,002 mm
074105995 Tungsten carbide M1,7 0,8 16,5 INTERAPID 312, resolution 0,01 mm
074105994 Tungsten carbide M1,7 1,5 16,5 INTERAPID 312, resolution 0,01 mm
074105993 Tungsten carbide M1,7 2 16,5 INTERAPID 312, resolution 0,01 mm
074106360 Tungsten carbide M1,7 0,8 36,6 INTERAPID 312, resolution 0,01 mm
074106358 Tungsten carbide M1,7 2 36,6 INTERAPID 312, resolution 0,01 mm
074110507 Tungsten carbide M1,7 0,8 15,2 INTERAPID 312, resolution 0,002 mm
074110491 Tungsten carbide M1,7 1,5 15,2 INTERAPID 312, resolution 0,002 mm
074110482 Tungsten carbide M1,7 2 15,2 INTERAPID 312, resolution 0,002 mm
074110508 Tungsten carbide M1,7 0,8 34 INTERAPID 312, resolution 0,002 mm
074110494 Tungsten carbide M1,7 2 34 INTERAPID 312, resolution 0,002 mm
074107893
Inserts

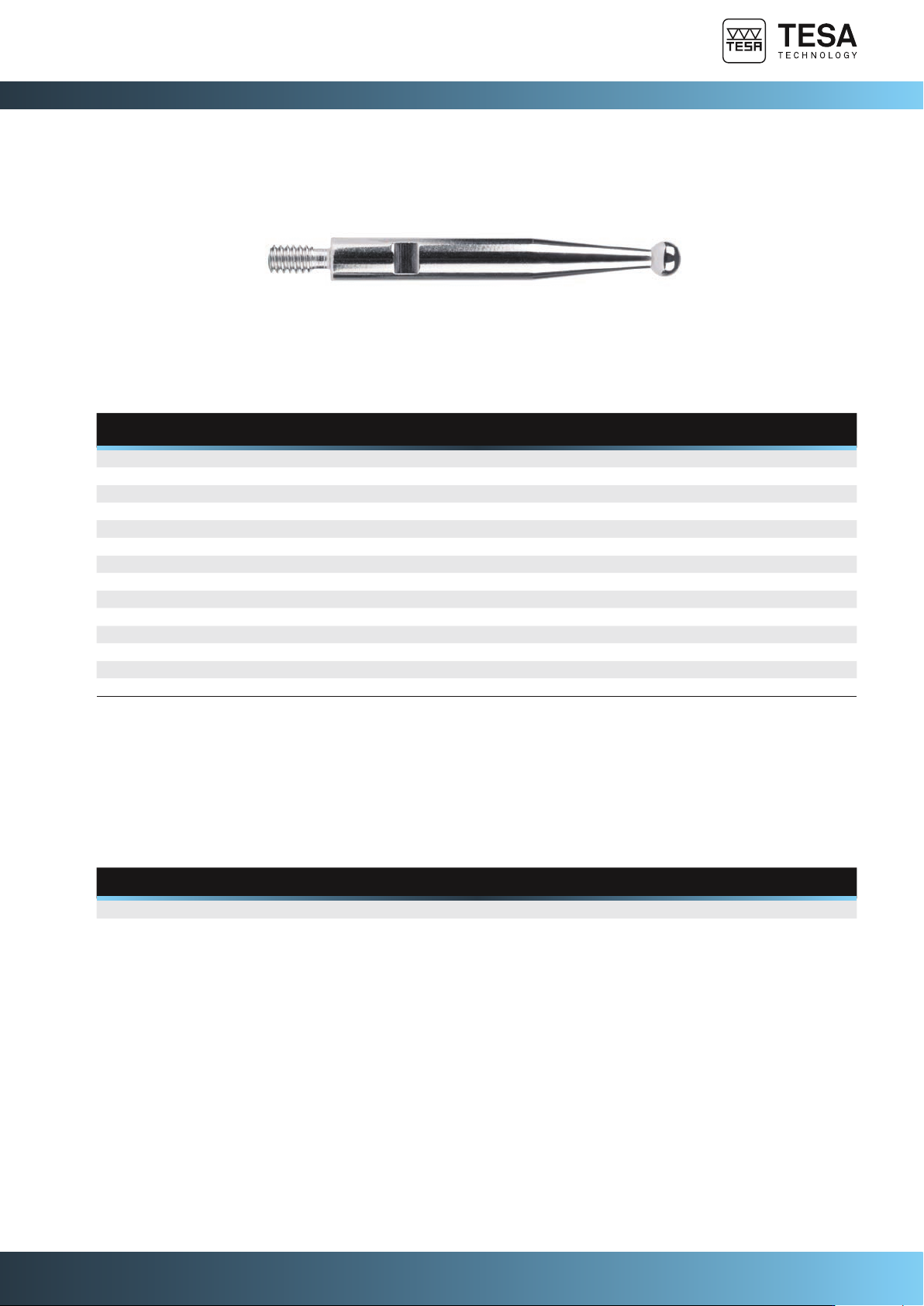

Ball tip inserts for metric INTERAPID 312 indicators
G-38
Article
number
Designation
01860307 Key for lever-type indicator
Accessories
The original inserts mounted on INTERAPID 312 can be replaced without issue by inserts with either the same or different ball diameter, provided
that the nominal length is respected.
The length of inserts 074106361 and 074106363 modifies the amplification factor of the lever system. Therefore, the read values must be doubled.
Article
number
Material
Fixing
mm
Compatibility
074116284 Tungsten carbide M1,7 All INTERAPID 312 indicators
074107903 Steel M1,7 All INTERAPID 312 indicators
074107901 Steel M1,7 All INTERAPID 312 indicators
074107899 Steel M1,7 All INTERAPID 312 indicators
074105998 Tungsten carbide M1,7 All INTERAPID 312 indicators
074105997 Tungsten carbide M1,7 All INTERAPID 312 indicators
074105996 Tungsten carbide M1,7 All INTERAPID 312 indicators
074106363 Tungsten carbide M1,7 All INTERAPID 312 indicators
074106361 Tungsten carbide M1,7 All INTERAPID 312 indicators
074111913 Tungsten carbide M1,7 Indicator 074111965
074111912 Tungsten carbide M1,7 Indicator 074111958
074107899
Inserts
Ball tip inserts for imperial INTERAPID 312 indicators
G-39
ø
L
2
M1,6
The original insert mounted on P-LINE indicators can be replaced without issue by inserts with either the same or different ball diameter, provided
that the nominal length is respected.
Article
number
Material
Fixing
mm
Diameter
mm
L1
mm
L2
mm
01866014 Tungsten carbide M1,6 0,8 18 14,26
01866003 Tungsten carbide M1,6 2 18 14,26
01866021 Tungsten carbide M1,6 3 18 14,26
01866016 Tungsten carbide M1,6 0,8 36 32,26
01866004 Tungsten carbide M1,6 2 36 32,26
01866023 Tungsten carbide M1,6 3 36 32,26
01866015 Tungsten carbide M1,6 0,8 45 41,26
01866006 Tungsten carbide M1,6 2 45 41,26
01866026 Tungsten carbide M1,6 2 18 14,26
01866027 Ruby M1,6 2 36 32,26
L1 = axial length from ball to pivot
01866014
Inserts
Ball tip inserts for metric P-LINE indicators
