17.7 1.65 1.65 56.1 11 8.6 1.65 X 39.5 1.5 8.5 60 X - 4:1 12.5 65.3 Ø45.3 42.7 8 G-9 Digital lev er-type dial test indicators MPEe: Indication error on the measuring range (retractable plunger) MPEtot: Indication error o…
G-8
Standard
Dimensions: Factory standard
Performances: Factory standard
Measuring range 0,8 mm
Units mm / in
Resolution 0,001 mm / .00005 in
Material
Housing: Metal
Inserts: Tungsten carbide
Dimensions Insert thread: M1,4
Degree of protection IP54
Data output(s) Bluetooth
®
Remark(s)
If the position of the insert is parallel to the surface of the workpiece (left figure),
the 1.1 ratio is accurate. Therefore, the reading does not require any correction.
In the opposite case (right figure), the effective length of the lever changes. The
readings must then be corrected. In this regard, please refer to the user manual
The original inserts mounted on the instrument can be replaced with inserts that
have either the same or a different ball diameter, provided that the nominal length
of the insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Wrench for insert mounting
Rigid stem Ø 8 mm
Measurement report
Quick start manual
01830004
Digital lever-type dial test indicators
DIALTRONIC series

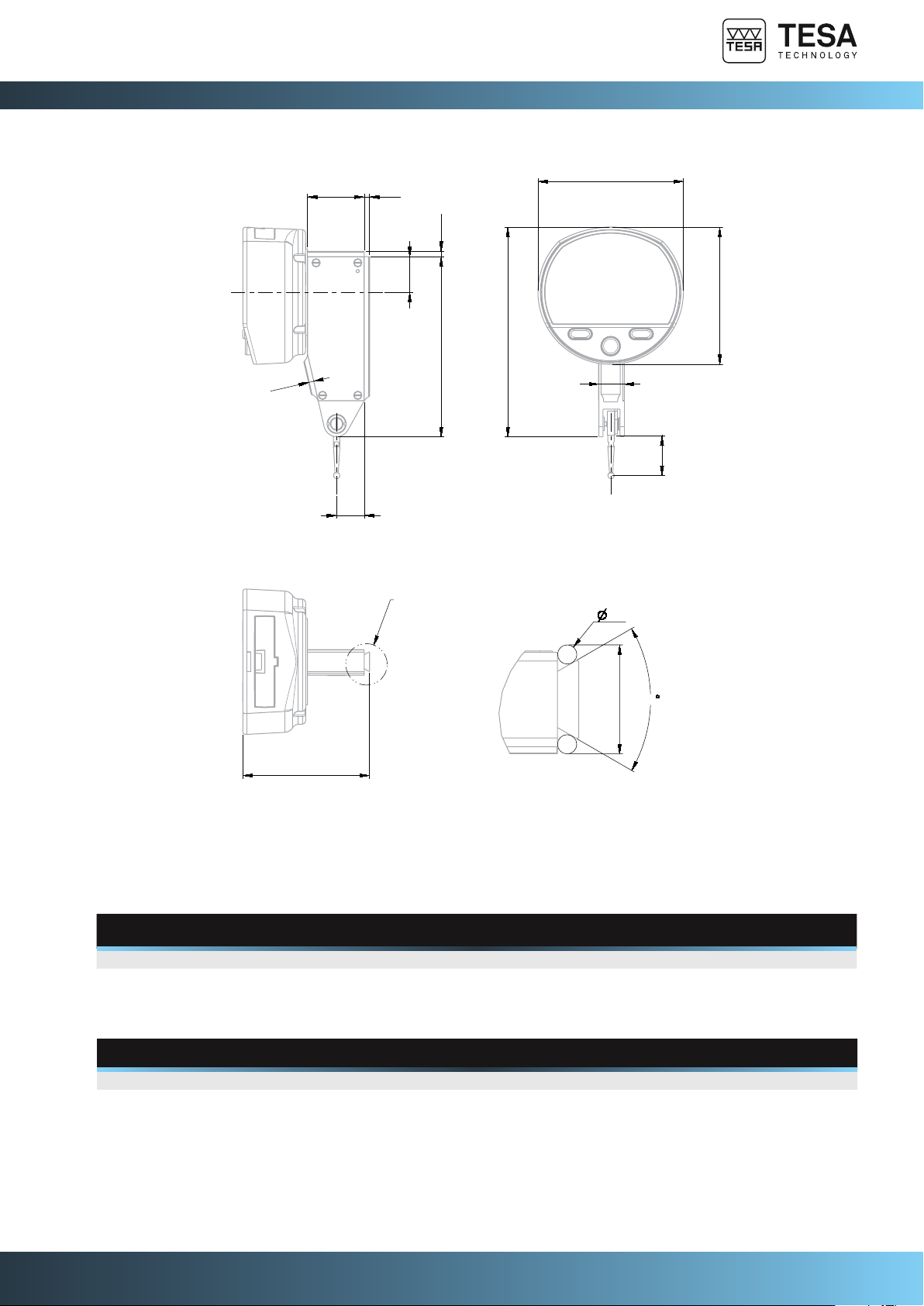

17.7 1.65
1.6556.1
11
8.6
1.65
X
39.5
1.5
8.5
60
X - 4:1
12.5
65.3
Ø45.3
42.7
8
G-9
Digital lever-type dial test indicators
MPEe: Indication error on the measuring range (retractable plunger)
MPEtot: Indication error on the measuring range (retractable and extendable plunger)
MPEr: Repeatability of the indication error
MPEh: Hysteresis of indication error
Article
number
MPEtot, retractable and
extendable plunger, µm
MPEe, retractable plunger
µm
MPEh
µm
MPEr
µm
01830004 4 3 2 1
Article
number
Serie s
Resolution
mm
Measuring range
mm
Ø Dial
mm
Degree of
protection
Probe length
mm
Measuring force
N
01830004 DIALTRONIC 0,001 0,8 45 IP54 12,5 0,15
01830004
G-10

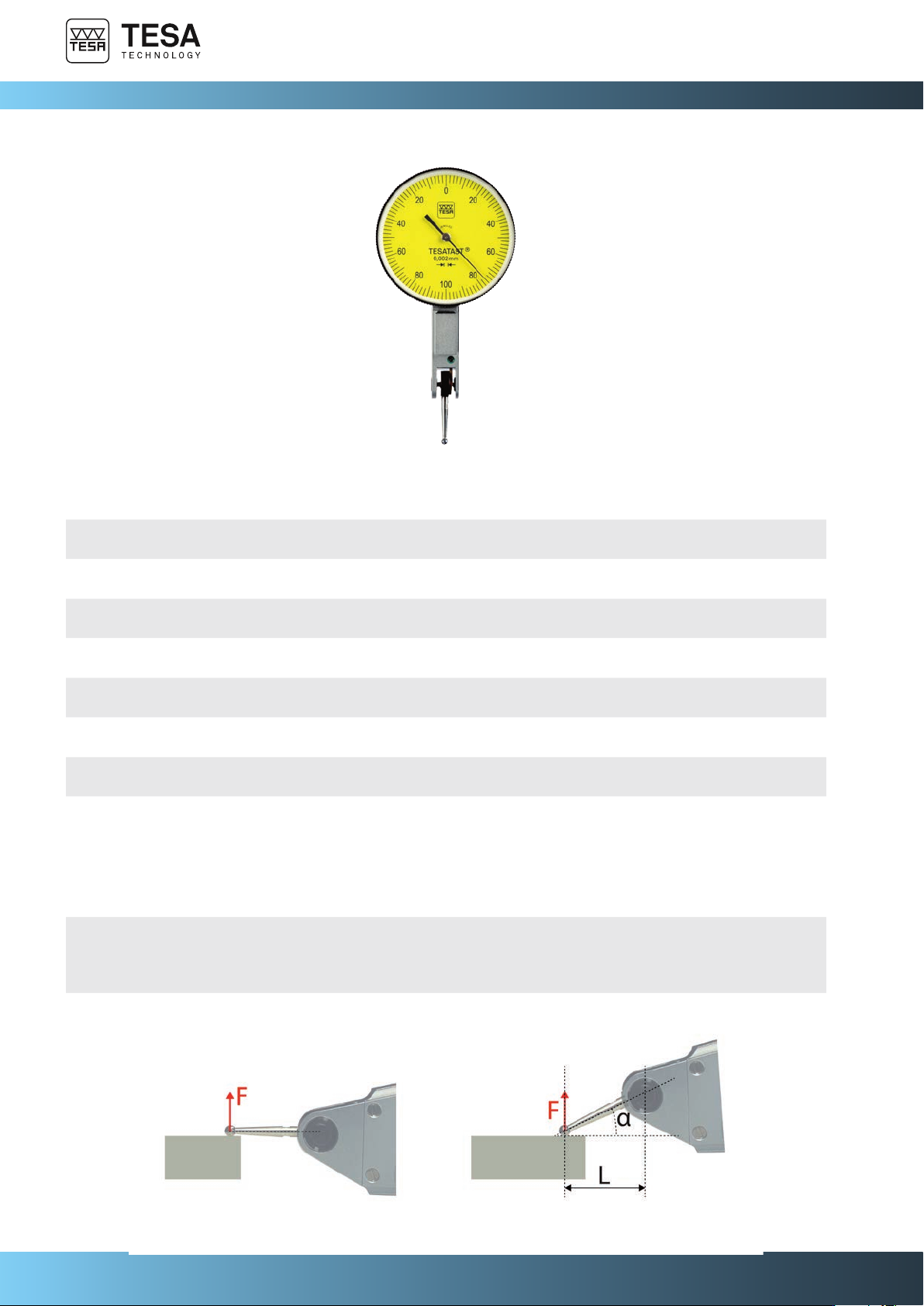

Standard
Dimensions : ISO 9493
Performances : DIN 2270
Units mm
Material
Housing: Metal
Ball inserts: Tungsten carbide
Dimensions Insert thread: M1,4
Reading direction Clockwise and anti-clockwise
Dial Rotating dial
Shockproof mechanism With
Remark(s)
If the position of the insert is parallel to the surface of the workpiece (left figure), the
1.1 ratio is accurate. Therefore, the reading does not require any correction. In the
opposite case (right figure), the effective length of the lever changes. The readings
must then be corrected. In this regard, please refer to the user manual.
The original inserts mounted on the instrument can be replaced with inserts that have
either the same or a different ball diameter, provided that the nominal length of the
insert is maintained.
Included in delivery
Lever-type dial test indicator with mounted ball insert Ø 2 mm
Wrench for insert mounting
Rigid stem Ø 8 mm
User manual
Declaration of conformity
01810010
Analogue lever-type dial test indicators, short travel
TESATAST series, standard, metric
