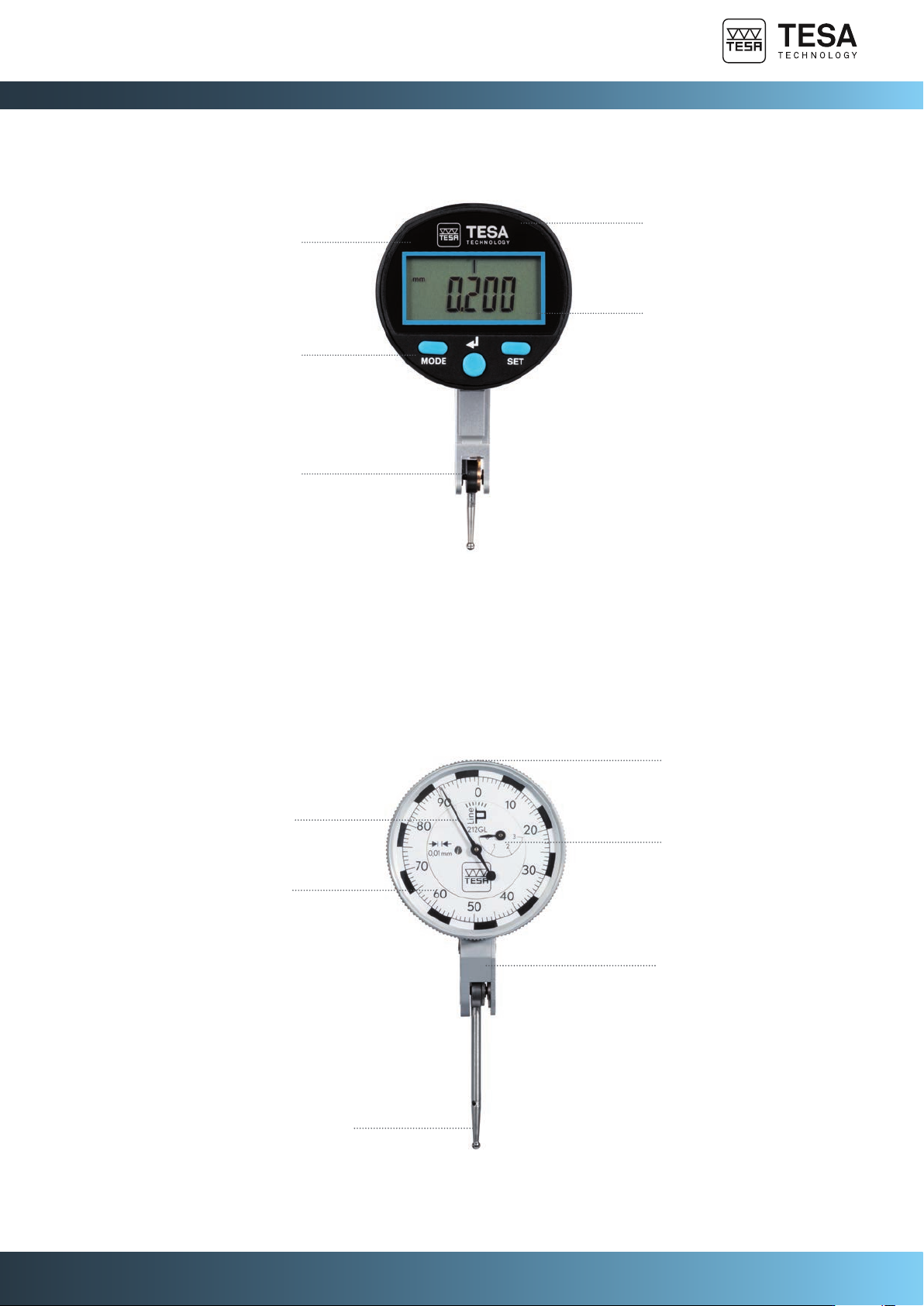

Lever-type dial test indicators
Analogue lever-type dial test indicator
Digital lever-type dial test indicator
Revolution counter
Wired connection for data transmission
Rotary dial
Large high-contrast LCD screen
Adjustable insert
Pivoting on an angled bearing
Circular scale
Action keys
Housing with dovetail mounting
Needle
Rotary dial
G-6
Metric analogue lever-type dial test indicators, short travel
Lever-type dial test indicators
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Circular scale
Probe length
mm
TESATAST 01810007 Standard 0,01 0,5 28 0 ÷ 0,25 ÷ 0 36,53
TESATAST 01810008 Standard 0,01 0,5 38 0 ÷ 0,25 ÷ 0 36,53
TESATAST 01810005 Standard 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810006 Standard 0,01 0,8 38 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810009 Standard 0,002 0,2 28 0 ÷ 100 ÷ 0 12,53
TESATAST 01810010 Standard 0,002 0,2 38 0 ÷ 100 ÷ 0 12,53
TESATAST S18001695 Standard 0,001 0,2 38 0 ÷ 100 ÷ 0 12,53
RUBYTAST 01811000 Standard 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
RUBYTAST 01811001 Standard 0,002 0,2 38 0 ÷ 100 ÷ 0 12,53
TESATAST 01810205 Perpendicular 0,01 0,5 28 0 ÷ 0,25 ÷ 0 36,53
TESATAST 01810204 Perpendicular 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810304 Perpendicular 0,002 0,2 38 0 ÷ 100 ÷ 0 12,53
TESATAST 01810011 Lateral 0,01 0,8 28 0 ÷ 0,4 ÷ 0 12,53
TESATAST 01810012 Lateral 0,02 2 38 0 ÷ 1 ÷ 0 36,53
TESATAST 01810013 Lateral 0,002 0,2 28 0 ÷ 100 ÷ 0 12,53
Imperial analogue lever-type dial test indicators, short travel
Model Article number Type
Resolution
in
Measuring
range, in
Dial, Ø
in
Circular scale
Probe length
in
TESATAST 01820010 Standard .001 .03 1.1 0 ÷ 15 ÷ 0 1/2
TESATAST 01820009 Standard .0005 .02 1.5 0 ÷ 10 ÷ 0 1-7/16
TESATAST 01820006 Standard .0005 .03 1.1 0 ÷ 15 ÷ 0 1/2
TESATAST 01820007 Standard .0005 .03 1.5 0 ÷ 15 ÷ 0 1/2
TESATAST 01820011 Standard .0001 .008 1.1 0 ÷ 4 ÷ 0 1/2
TESATAST 01820012 Standard .0001 .008 1.5 0 ÷ 4 ÷ 0 1/2
TESATAST 01820013 Standard .00005 .008 1.5 0 ÷ 4 ÷ 0 1/2
TESATAST 01820014 Lateral .0005 .03 1.1 0 ÷ 15 ÷ 0 1/2
Metric analogue lever-type dial test indicators, long travel
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Circular scale
Probe length
mm
P-LINE 01810400 Standard 0,01 1,5 27 0 ÷ 25 ÷ 50 18
P-LINE 01810401 Standard 0,01 1,5 40 0 ÷ 25 ÷ 50 18
P-LINE 01810402 Standard 0,01 3 27 0 ÷ 50 ÷ 100 36
P-LINE 01810403 Standard 0,01 3 40 0 ÷ 50 ÷ 100 36
P-LINE 01810404 Standard 0,002 0,6 27 0 ÷ 5 ÷ 10 18
P-LINE 01810405 Standard 0,002 0,6 40 0 ÷ 5 ÷ 10 18
P-LINE 01810406 Standard 0,002 1,2 40 0 ÷ 10 ÷ 20 36
P-LINE 01810407 Standard 0,001 0,6 40 0 ÷ 5 ÷ 10 18
P-LINE 01810408 Perpendicular 0,01 3 40 0 ÷ 50 ÷ 100 36
P-LINE 01810409 Lateral 0,01 3 40 0 ÷ 50 ÷ 100 36
G-7
Metric analogue lever-type dial test indicators, robust construction
Lever-type dial test indicators
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Circular scale
Probe length
mm
INTERAPID 312 074111366 Standard 0.01 1,6 37,5 0 ÷ 40 ÷ 0 16,5
INTERAPID 312 074111367 Standard 0.01 1,6 30 0 ÷ 40 ÷ 0 16,5
INTERAPID 312 074111368 Standard 0.002 0,4 37,5 0 ÷ 10 ÷ 0 15,2
INTERAPID 312 074111369 Standard 0.002 0,4 30 0 ÷ 10 ÷ 0 15,2
INTERAPID 312 074111375 Perpendicular 0.01 1,6 37,5 0 ÷ 40 ÷ 0 16,5
INTERAPID 312 074111376 Perpendicular 0.01 1,6 30 0 ÷ 40 ÷ 0 16,5
Imperial analogue lever-type dial test indicators, robust construction
Model Article number Type
Resolution
in
Measuring
range
Dial, Ø
in
Circular scale
Probe length
in
INTERAPID 312 074111374 Standard .001 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111370 Standard .0005 .06 1-1/2 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111371 Standard .0005 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111965 Standard .0005 .06 1-1/2 0 ÷ 15 ÷ 0 2.675
INTERAPID 312 074111372 Standard .0001 .016 1-1/2 0 ÷ 4 ÷ 0 .65
INTERAPID 312 074111373 Standard .0001 .016 1-1/5 0 ÷ 4 ÷ 0 .65
INTERAPID 312 074111379 Perpendicular .001 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111377 Perpendicular .0005 .06 1-1/2 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111378 Perpendicular .0005 .06 1-1/5 0 ÷ 15 ÷ 0 .65
INTERAPID 312 074111958 Perpendicular .0005 .06 1-1/2 0 ÷ 15 ÷ 0 2.77
INTERAPID 312 074111957 Perpendicular .0001 .016 1-1/2 0 ÷ 4 ÷ 0 .65
Digital lever-type dial test indicator
Model Article number Type
Resolution
mm
Measuring
range, mm
Dial, Ø
mm
Degree of
protection
Number of
buttons
DIALTRONIC BT 01830004 Standard 0,001 0,8 45 IP54 3
