G-36 Article number Designation 01860307 Key for lever-type indicator Accessories The original inserts mounted on TESA T AST and RUBYT AST indicators can be replaced without issue by inserts with either the same or diffe…

100%1 / 48
6.38
1.6
Ø 0.79
17
58.636
Ø 40
10.65
9.4
10.1
32.26
G-35
Analogue lever-type dial test indicators, long travel
MPEe: Indication error on the measuring range (retractable plunger)
MPEtot: Indication error on the measuring range (retractable and extendable plunger)
MPEp 1/10: Indication error on 1/10 rotation
MPEp 1/2: Indication error on 1/2 rotation
MPEp 1: Indication error on 1 rotation
MPEr: Repeatability of the indication error
MPEh: Hysteresis of indication error
Article
number
MPEtot, retractable and
extendable plunger, µm
MPEe, retractable
plunger, µm
MPEp 1
µm
MPEp 1/2
µm
MPEp 1/10
µm
MPEh
µm
MPEr
µm
01810409 26 20 12 10 3 7 3
Article
number
Serie s
Resolution
mm
Measuring
range, mm
Ø Dial
mm
Travel /
revolution, mm
Circular scale
Probe length
mm
Measuring
force, N
01810409 P-LINE 232GL 0,01 3 40 1 0 ÷ 50 ÷ 100 36 0,2
G-36
Article
number
Designation
01860307 Key for lever-type indicator
Accessories
The original inserts mounted on TESATAST and RUBYTAST indicators can be replaced without issue by inserts with either the same or different ball
diameter, provided that the nominal length is respected.
Article
number
Material
Fixing
mm
Diameter
mm
Probe length
mm
01860704 Tungsten carbide M1,4 0,5 12,53
01860201 Tungsten carbide M1,4 1 12,53
01860202 Tungsten carbide M1,4 2 12,53
01860203 Tungsten carbide M1,4 3 12,53
01860211 Tungsten carbide M1,4 1 36,53
01860212 Tungsten carbide M1,4 2 36,53
01860213 Tungsten carbide M1,4 3 36,53
01860301 Ruby M1,4 1 12,53
01860302 Ruby M1,4 2 12,53
01860303 Ruby M1,4 3 12,53
01860304 Ruby M1,4 1 36,53
01860305 Ruby M1,4 2 36,53
01860203

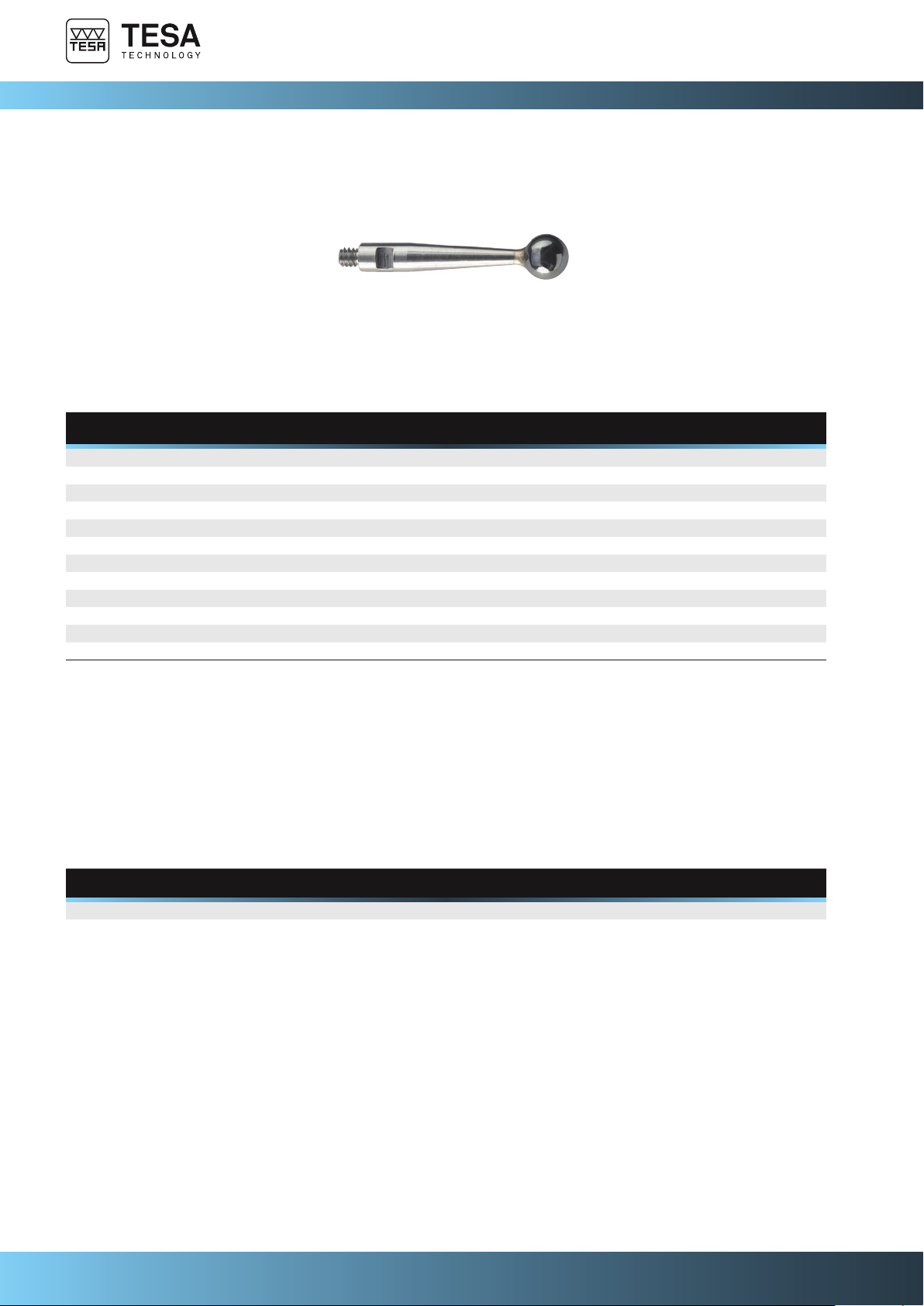

Inserts
Ball tip inserts for TESATAST and RUBYTAST indicators
G-37
Article
number
Designation
01860307 Key for lever-type indicator
Accessories
The original inserts mounted on INTERAPID 312 indicators can be replaced without issue by inserts with either the same or different ball diameter,
provided that the nominal length is respected.
The length of inserts 074106358, 074106360, 074110494 and 074110508 modifies the amplification factor of the lever system. Therefore, the read
values must be doubled.
Article
number
Material
Fixing
mm
Diameter
mm
Probe length
mm
Compatibility
074107897 Steel M1,7 0,8 16,5 INTERAPID 312, resolution 0,01 mm
074107895 Steel M1,7 1,5 16,5 INTERAPID 312, resolution 0,01 mm
074107893 Steel M1,7 2 16,5 INTERAPID 312, resolution 0,01 mm
074110493 Steel M1,7 0,8 15,2 INTERAPID 312, resolution 0,002 mm
074105995 Tungsten carbide M1,7 0,8 16,5 INTERAPID 312, resolution 0,01 mm
074105994 Tungsten carbide M1,7 1,5 16,5 INTERAPID 312, resolution 0,01 mm
074105993 Tungsten carbide M1,7 2 16,5 INTERAPID 312, resolution 0,01 mm
074106360 Tungsten carbide M1,7 0,8 36,6 INTERAPID 312, resolution 0,01 mm
074106358 Tungsten carbide M1,7 2 36,6 INTERAPID 312, resolution 0,01 mm
074110507 Tungsten carbide M1,7 0,8 15,2 INTERAPID 312, resolution 0,002 mm
074110491 Tungsten carbide M1,7 1,5 15,2 INTERAPID 312, resolution 0,002 mm
074110482 Tungsten carbide M1,7 2 15,2 INTERAPID 312, resolution 0,002 mm
074110508 Tungsten carbide M1,7 0,8 34 INTERAPID 312, resolution 0,002 mm
074110494 Tungsten carbide M1,7 2 34 INTERAPID 312, resolution 0,002 mm
074107893
Inserts
Ball tip inserts for metric INTERAPID 312 indicators
