G-39 ø L 2 M1,6 The original insert mounted on P-LINE indicators can be replaced without issue by inserts with either the same or different ball diameter, pro vided that the nominal length is respected. Article number Ma…
G-38
Article
number
Designation
01860307 Key for lever-type indicator
Accessories
The original inserts mounted on INTERAPID 312 can be replaced without issue by inserts with either the same or different ball diameter, provided
that the nominal length is respected.
The length of inserts 074106361 and 074106363 modifies the amplification factor of the lever system. Therefore, the read values must be doubled.
Article
number
Material
Fixing
mm
Compatibility
074116284 Tungsten carbide M1,7 All INTERAPID 312 indicators
074107903 Steel M1,7 All INTERAPID 312 indicators
074107901 Steel M1,7 All INTERAPID 312 indicators
074107899 Steel M1,7 All INTERAPID 312 indicators
074105998 Tungsten carbide M1,7 All INTERAPID 312 indicators
074105997 Tungsten carbide M1,7 All INTERAPID 312 indicators
074105996 Tungsten carbide M1,7 All INTERAPID 312 indicators
074106363 Tungsten carbide M1,7 All INTERAPID 312 indicators
074106361 Tungsten carbide M1,7 All INTERAPID 312 indicators
074111913 Tungsten carbide M1,7 Indicator 074111965
074111912 Tungsten carbide M1,7 Indicator 074111958
074107899

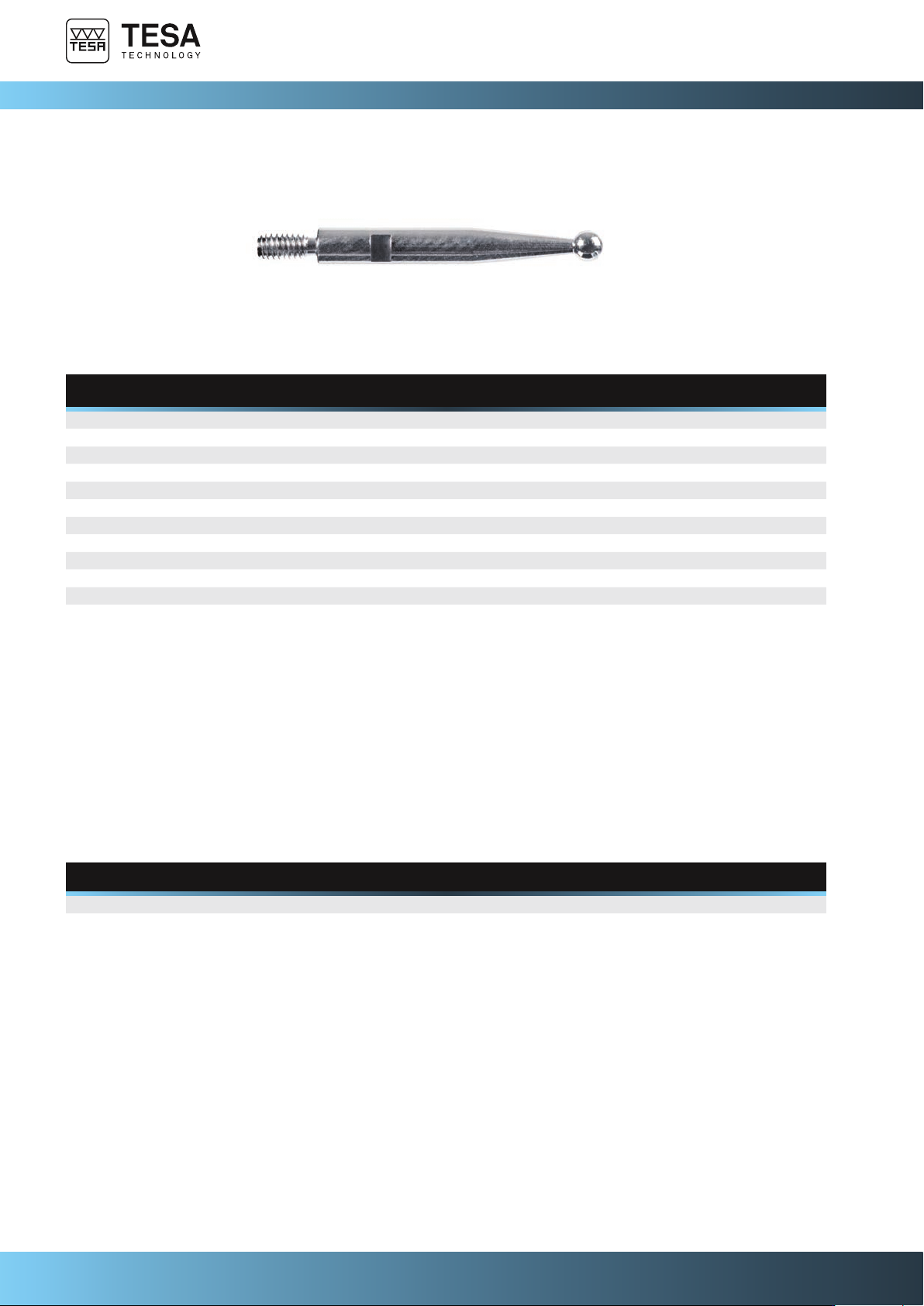

Inserts
Ball tip inserts for imperial INTERAPID 312 indicators
G-39
ø
L
2
M1,6
The original insert mounted on P-LINE indicators can be replaced without issue by inserts with either the same or different ball diameter, provided
that the nominal length is respected.
Article
number
Material
Fixing
mm
Diameter
mm
L1
mm
L2
mm
01866014 Tungsten carbide M1,6 0,8 18 14,26
01866003 Tungsten carbide M1,6 2 18 14,26
01866021 Tungsten carbide M1,6 3 18 14,26
01866016 Tungsten carbide M1,6 0,8 36 32,26
01866004 Tungsten carbide M1,6 2 36 32,26
01866023 Tungsten carbide M1,6 3 36 32,26
01866015 Tungsten carbide M1,6 0,8 45 41,26
01866006 Tungsten carbide M1,6 2 45 41,26
01866026 Tungsten carbide M1,6 2 18 14,26
01866027 Ruby M1,6 2 36 32,26
L1 = axial length from ball to pivot
01866014
Inserts
Ball tip inserts for metric P-LINE indicators
G-40
01639055
Article
number
Designation Composed of
01639055 Set with magnetic support + TESATAST
01810005 TESATAST analogue lever-type dial test indi-
cator, standard, 0,8 mm, 0,01 mm, Ø 28 mm
01639010 Support with magnetic base, articulated arm
Sets of lever-type test indicator + accessories
TESATAST indicator, standard, metric + magnetic support
01639056
Article
number
Designation Composed of
01639056 Set with magnetic support + RUBYTAST
01811001 RUBYTAST analogue lever-type dial test indicator, standard,
0,2 mm, 0,002 mm, Ø 38 mm
01639010 Support with magnetic base, articulated arm
RUBYTAST indicator, standard, metric + magnetic support
