G-41 Sets with INTERAPID 312 and accessories, imperial With standard indicator With perpendi- cular indicator Family Part number Description 074111508 074111509 074111510 074111511 074111513 074111514 Lev er-type dial te…
G-40
01639055
Article
number
Designation Composed of
01639055 Set with magnetic support + TESATAST
01810005 TESATAST analogue lever-type dial test indi-
cator, standard, 0,8 mm, 0,01 mm, Ø 28 mm
01639010 Support with magnetic base, articulated arm
Sets of lever-type test indicator + accessories
TESATAST indicator, standard, metric + magnetic support
01639056
Article
number
Designation Composed of
01639056 Set with magnetic support + RUBYTAST
01811001 RUBYTAST analogue lever-type dial test indicator, standard,
0,2 mm, 0,002 mm, Ø 38 mm
01639010 Support with magnetic base, articulated arm
RUBYTAST indicator, standard, metric + magnetic support
G-41

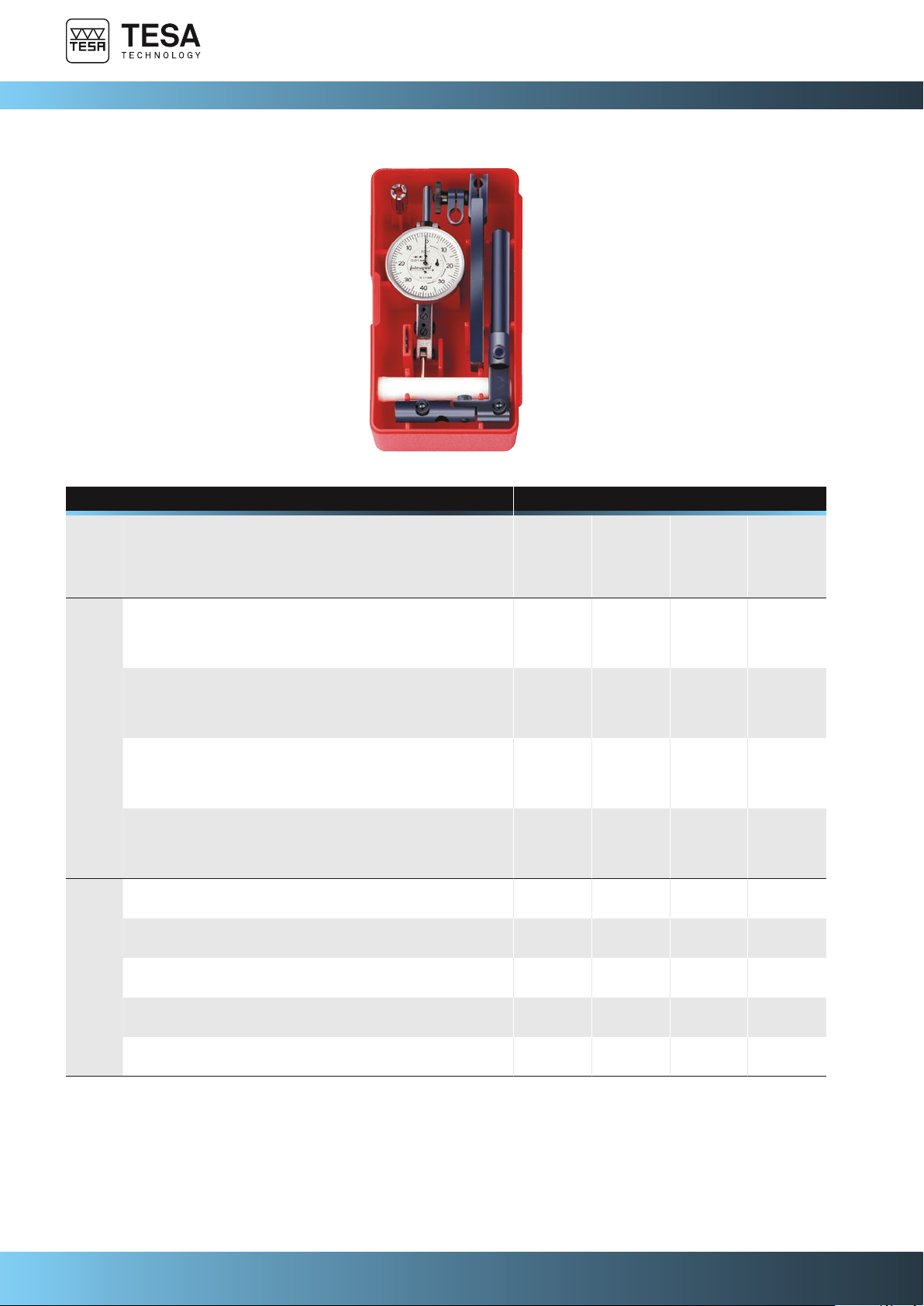

Sets with INTERAPID 312 and accessories, imperial
With standard indicator
With perpendi-
cular indicator
Family
Part
number
Description
074111508
074111509
074111510
074111511
074111513
074111514
Lever-type dial test indicator
074111370
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/2 in
Application range: .06 in
Resolution: .0005 in
●
074111371
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/5 in
Application range: .06 in
Resolution: .0005 in
●
074111372
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/2 in
Application range: .016 in
Resolution: .0001 in
●
074111373
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 1-1/5 in
Application range: .016 in
Resolution: .0001 in
●
074111377
INTERAPID 312, perpendicular, with ball insert Ø 2 mm
Dial, Ø: 1-1/2 in
Application range: .06 in
Resolution: .0005 in
●
074111378
INTERAPID 312, perpendicular, with ball insert Ø 2 mm
Dial, Ø: 1-1/5 in
Application range: .06 in
Resolution: .0005 in
●
Accessories
074106331
Swivel holder with dovetail grip, Ø 4 and Ø 5,5 mm,
bar = 6 x 12,6 x 76 mm
● ● ● ● ● ●
074106931
Swivel holder with dovetail grip, Ø 4 and Ø 7 mm,
shaft = Ø 3/8 x 5-1/4 in
● ● ● ● ● ●
074108943 Reducing sleeve, Ø 3/8 in - Ø 5/32 in
● ● ● ● ● ●
074111474 Case for measuring inserts
● ● ● ● ● ●
01860307 Key for inserts
● ● ● ● ● ●
Sets of lever-type test indicator + accessories
G-42
Sets with INTERAPID 312 and accessories, metric
Sets of lever-type test indicator + accessories
With standard indicator
Family
Part number Description
074111502
074111503
074111504
074111505
Lever-type dial test indicator
074111366
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 37,5 mm
Application range: 1,6 mm
Resolution: 0,01 mm
●
074111367
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 30 mm
Application range: 1,6 mm
Resolution: 0,01 mm
●
074111368
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 37,5 mm
Application range: 0,4 mm
Resolution: 0,002 mm
●
074111369
INTERAPID 312, standard, with ball insert Ø 2 mm
Dial, Ø: 30 mm
Application range: 0,4 mm
Resolution: 0,002 mm
●
Accessories
074106331
Swivel holder with dovetail grip, Ø 4 and Ø 5,5
mm, bar = 6 x 12,6 x 76 mm
● ● ● ●
074106026
Swivel holder with dovetail grip, Ø 4 and Ø 7 mm,
shaft = Ø 8 x 133 mm
● ● ● ●
074108942 Reducing sleeve, Ø 8 mm - Ø 4 mm
● ● ● ●
074111474 Case for measuring inserts
● ● ● ●
01860307 Key for inserts
● ● ● ●
