7OM-1603 3-16 Chapter 3 : 2. Menus for System Setting 1003-002 2.1.1 "Feeder B" Window [1] [2] [3] [5] [4] [6] F7C16 Feeder Offset B This offset data is used to correct variation in the feeder. · The X and Y pa…

7OM-1603

Chapter 3 : 2. Menus for System Setting

3-151003-002

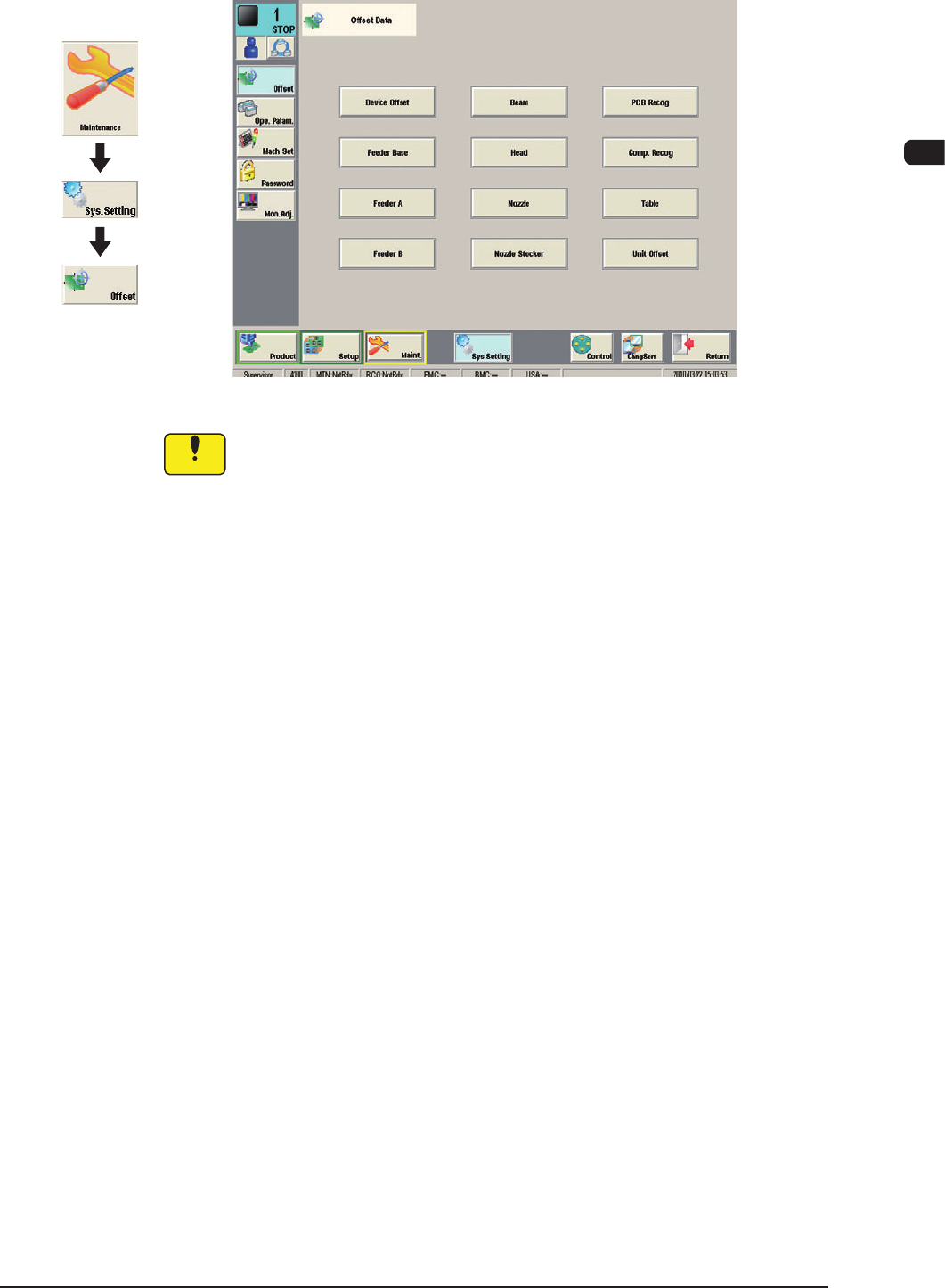

2.1 "Offset Data" Window

F7C15

Notice

Do not change the parameters unless necessary. These parameters are

factory-adjusted upon shipment of the machine.

Graphic

Development

7OM-1603

3-16

Chapter 3 : 2. Menus for System Setting

1003-002

2.1.1 "Feeder B" Window

[1]

[2] [3]

[5]

[4]

[6]

F7C16

Feeder Offset B

This offset data is used to correct variation in the feeder.

The X and

Y parameters are recognition-processed during the automatic

operation to track the positional relation between the nozzle and component

centers and updated automatically for better pickup posture (pickup on the

component center).

Note: In normal cases, it is not necessary to enter any parameters.

The "L [mm]" parameters are not updated automatically but the entered ones

are reected.

Feeder offset parameters are added to actual offset values.

Actual Offset Values = Feeder (A) Offset + Feeder (B) Offset

[1] Feeder Change Tab

Another tab sheet can be opened by pressing the corresponding "Feeder

Base" tab.

Graphic

Development

7OM-1603

Chapter 3 : 2. Menus for System Setting

3-171003-002

[2] X (Horizontal) and Y (Vertical) [mm]

These offset parameters are used to adjust the positional deviation based on

the design dimensions representing the component pickup position for each

individual feeder slot Nos. (Fdr Nos.).

F211

F111

Rear Feeder

Front Feeder

Front Side of Machine

Y(+)

X(+)

Pickup Position

Direction of Tape FeedDirection of Tape Feed

F7C17

[3] L (Height) [mm]

Pickup Reference Level

Nozzle

L(+)

F7C18

When a value is entered with a plus (+) sign, the pickup height is reected on

the direction in which the descending stroke of the nozzle will increase.

[4] [Blk Select] button

In this section, the installed multi-layer tray feeder block can be selected.
