7OM-1603
4-16
Chapter 4 : 3. Maintenance Spots

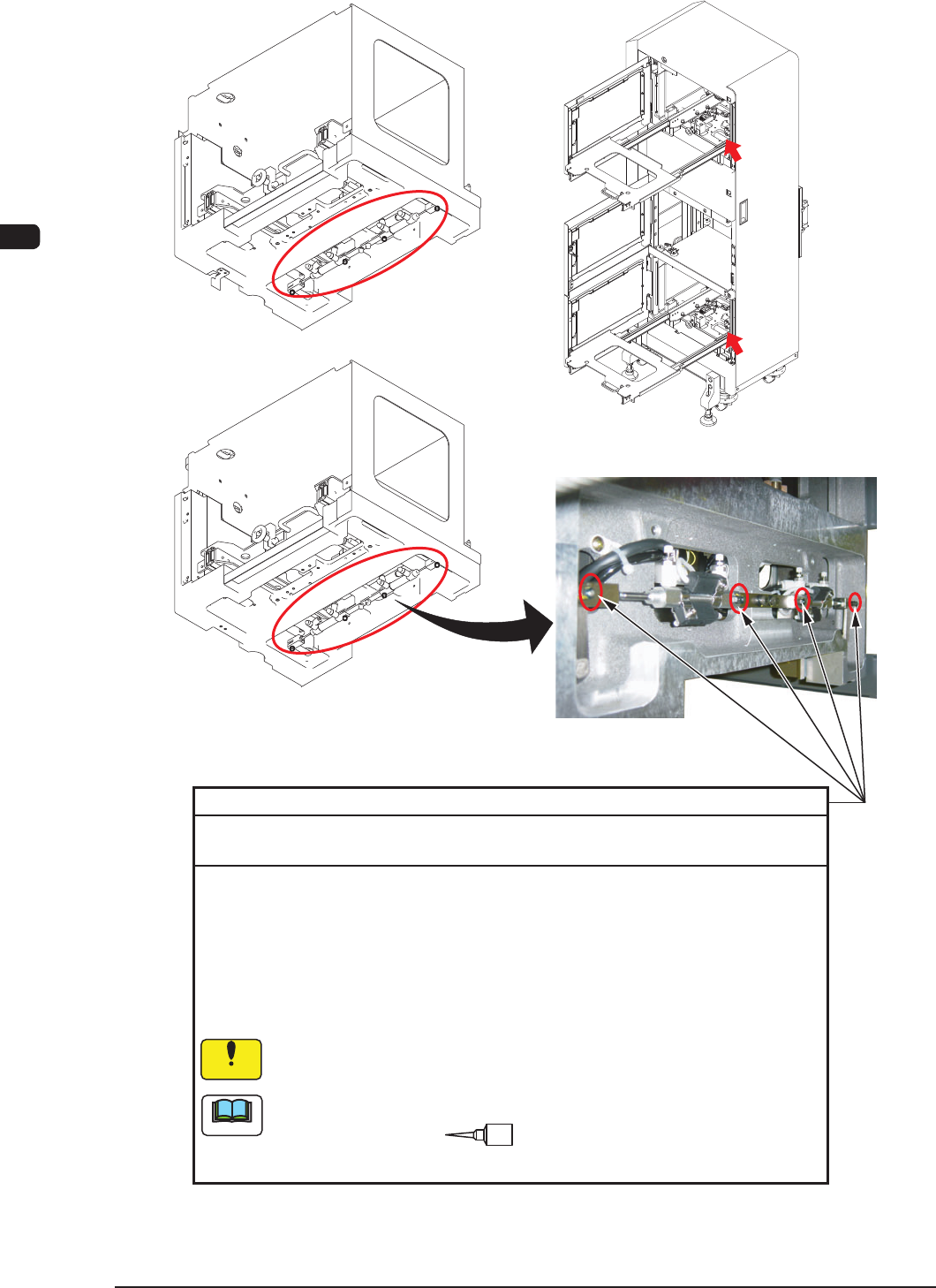

3.2.3 Magazine Base
Cylinder Connection Sections (4 locations for each)
Every 3 Months Lubrication (MOLYNOC GREASE AP1)
Required Time: 10 minutes
Zero Magazine Base #2 (Upper) and open the exchange position door.
Turn off the power.
Wipe off old grease from the cylinder connection sections located on the bottom
side of the magazine base with an oiled rag.
Apply new grease with a syringe.
Move Magazine Base #1 (Lower) to the middle magazine change position and
continue the maintenance for Magazine Base #1 from the magazine #1 door.
Take ample care not to leave any waste threads after cleaning.
Use No. 18 (green) nozzle.
No.18
A
B
VIEW A
VIEW B
Notice
Note
F7D9
1007-003
7OM-1603
Chapter 4 : 3. Maintenance Spots
4-17
Magazine Rail
Every Year Lubrication (DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Draw out the magazine base.
Apply new grease to the bearings (8 pcs. on each rail) on the right and left
magazine rails (the front upper and lower rails and the rear upper and
lower rails) with a syringe.
Use No. 18 (green) nozzle.
No.18
Upper Front Bearing Upper Rear Bearing
Lower Front Bearing Lower Rear Bearing
Note
F7D10
1003-002
7OM-1603
4-18
Chapter 4 : 3. Maintenance Spots
3.2.4 Magazine
Rack Shutter Fulcrum Section (6 locations)
Every 3 Months Lubrication (MOLYNOC GREASE AP1)
Required Time: 30 minutes
Wipe off old grease from the upper and lower fulcrum sections of the rack shutter
with an oiled rag and apply new one to them with a syringe.
Take ample care not to leave any waste threads after cleaning.
Use No. 18 (green) nozzle.
No.18
Magnified View of Rack Shutter
Magnified View of Magazine Door
Note
Notice
F7D11
1007-003
