试运转 2-21  确认是否感应 Shuttle Conveyor (Shuttle - Dual - Shuttle) Sensor  确认是否感应 Full Dual Conveyor (Dual - Dual - Dual) Sensor

SAMSUNG DECAN Series Service Manual

2-20

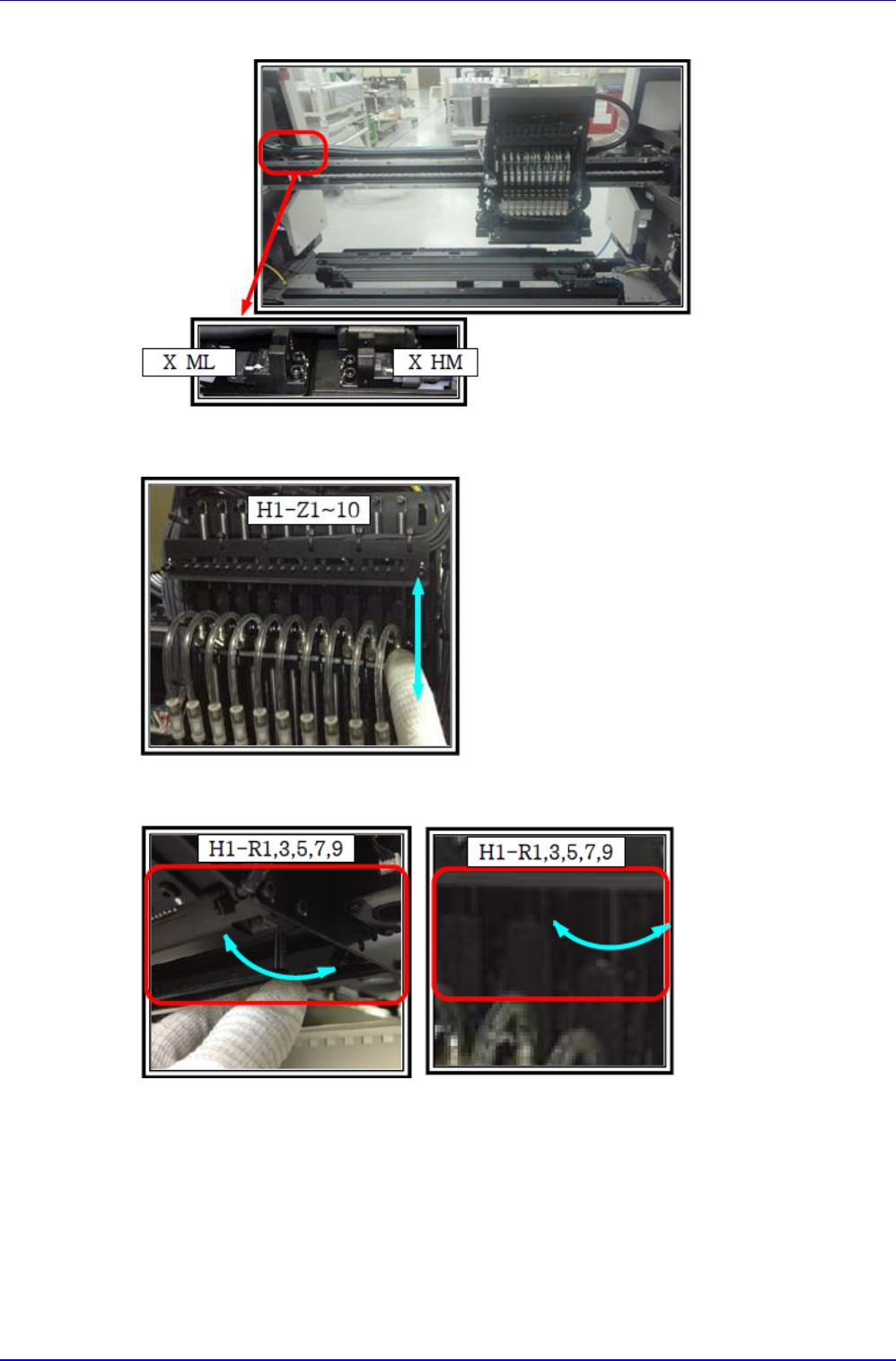

 移动 X 轴过程中，确认是否感应 G1F-X(Home, -)、G1R-X(Home, -)

 确认是否感应 H1F-Z1~10、H1R-Z1~10 Z 轴 Home Sensor

 确认是否感应 H1F-R1、3、5、7、9、H1R-R1、5、7、9 R 轴 Home Sensor

试运转

2-21

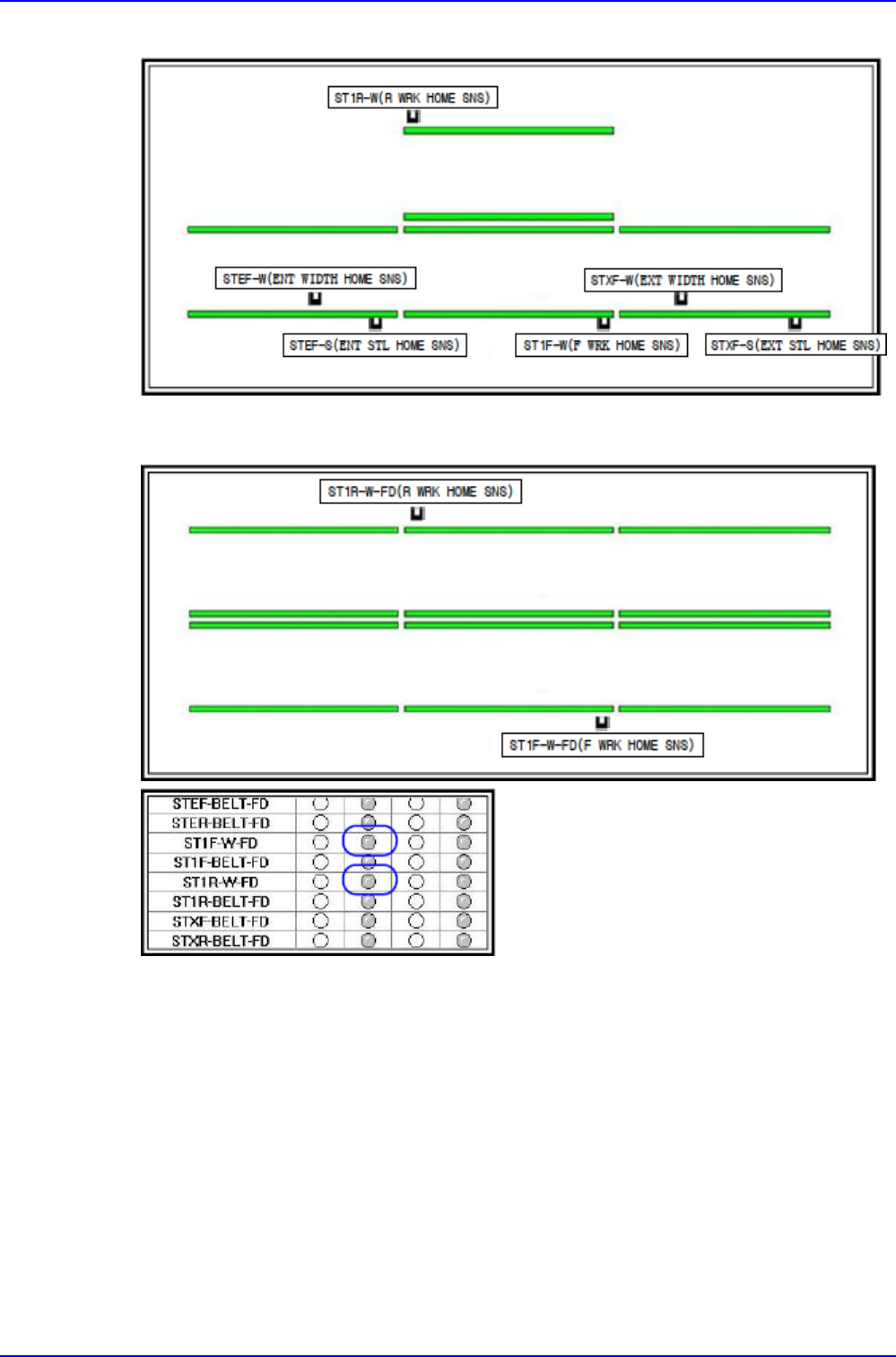

 确认是否感应 Shuttle Conveyor (Shuttle - Dual - Shuttle) Sensor

 确认是否感应 Full Dual Conveyor (Dual - Dual - Dual) Sensor

SAMSUNG DECAN Series Service Manual

2-22

 确认是否感应 Full Dual Conveyor (Dual - Dual - Dual) Sensor

 确认是否感应 Left Only Shuttle Conveyor (Shuttle - Dual – Dual )Sensor

 确认是否感应 Right Only Shuttle (Dual - Dual - Shuttle) Sensor
