The following dialog is displayed.
Figure 5-6: Selecting SQL Server
► Select the SQL server on which the SIPLACE LED Pairing Controller database shall be created
from the Sql Instance list.
► Enter the administration password for the SQL server under Sa Password.
► Click the Test button to test the connection.
The following dialog is displayed.
Figure 5-7: Testing connection
LED Pairing / Installation Manual 05/2014 Edition
13
The SIPLACE LED Pairing Controller service starts and tries to connect to OIB Core. If successful,
the SIPLACE LED Pairing Controller sends registration information to OIB Core.
The following dialog is displayed.
Figure 5-8: Connecting to OIB Core
► Click the OK button.
The following dialog is displayed.
Figure 5-9: Completing installation
► Click the Close button to finish the installation.
LED Pairing / Installation Manual 05/2014 Edition
14
In OIB:
► Start the OIB Operation Manager.
The SIPLACE LED Pairing Controller appears as an un-configured service in the OIB Operation
Manager.
► Assign the SIPLACE LED Pairing Controller service to a line or area node in the Factory Layout
by following the description in the OIB Installation Manual. A corresponding sample can also be
found in section 8.1.
After the SIPLACE LED Pairing Controller service has been successfully assigned to a line or area
node:
► Click on the SIPLACE LED Pairing icon in the Windows task bar.
► Select Start LED Pairing Controller to start the SIPLACE LED Pairing Controller Viewer.

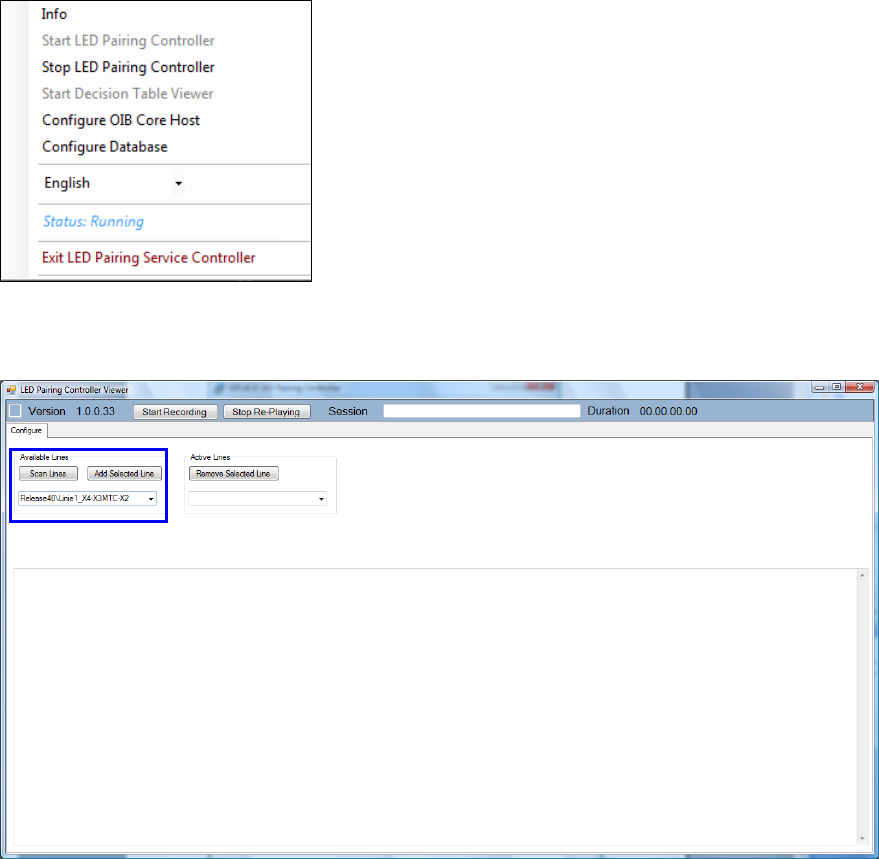

Figure 5-10: SIPLACE LED Pairing Controller menu
The SIPLACE LED Pairing Viewer starts.
Figure 5-11: SIPLACE LED Pairing Controller Viewer
► Scan for the available lines via the Scan Lines button.
► Select a line from the list and click the Add Selected Line button.
