AOI SYSTEMS
Inspection and Metrology Capabilities
Component Types Inspected
• Standard SMT (chips, J-lead, gull-wing, BGA, etc.), through-hole, odd-form,
clips, connectors, header pins, and more
Solder Joint Defects Categories
• Solder bridge, opens, lifted leads, wettability, excess and insucient solder,
debris, and more
3D Measurement Inspection (MX3000)
• Lifted Lead, package coplanarity, polarity dimple and chamfer identication
Other Items detected
• Gold nger contamination, pin-in-hole, bent pins, debris, OCR/OCV and many
others
Component Measurement Categories
• Component X, Y position and rotation
SIM (Strobe Inspection Module)
2D AOI Sensor Technology - High-speed,
On-the-Fly Inspection
At the core of every MX600 system are two SIMs (Strobed Inspection
Modules) enabling ‘on-the-y’ inspection. The SIM is designed with enhanced
illumination using LED lighting - delivering the best 01005 and solder joint
performance. With an 80 megapixel sensor and higher resolution (12µm), you
get crisp, perfect quality images for accurate defect review.
The system oers in-line multiple module grippers minimize handing tact time,
0402 inspection capability, and S2/S8 compliant.
Memory Module Post-Test Defect
Types, Pre-Shipping Inspection
Inspection capability (2D+3D) includes:
• Components edge
• Damage PCB corner
• Gold nger discolored / burnt / badly scratched
• Gold tab inspection - Lifted tie bar, burnt, contamination
• Physically damaged components
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Award-Winning AOI Software
Faster, Simpler and Smarter
• Solder Ball/ Blob Analysis, Solder Bridge, Insucient Solder, Tombstone
• No shadowing with small components next to tall components, Lifted Lead, Coplanarity, Text Detection
Intuitive, Easy-to-use Software
The multi-award winning SQ3000 AOI software is a more powerful yet
extremely simple software suite designed with an intuitive interface
and multi-touch control with 3D image visualization tools. Ultra-fast
programming capabilities bring the ease-of-use to a completely new
level and signicantly speeds setup, simplies the process, reduces
training eorts and minimizes operator interaction – all saving
time and cost.
AutoProgramming and AI
2
Superior in Programming & Performance - Enabling Smarter, Faster Inspection
Speed programming and tuning with new capabilities including AutoTeach, AutoDene, and AutoTune for faster set-up
and to simplify process.
CyberOptics AI
2
(Autonomous Image Interpretation) technology is all about keeping it simple - no parameters to adjust or
algorithms to tune. And, you do not need to anticipate defects or pre-dene variance either - AI
2
does it all for you. With
AI
2
, you have the power to inspect the most comprehensive list of features and identify the widest variety of defect types
- including those that you least expect. Perfect for those high-mix or low volume applications. With its unique ability to
‘ignore’ bad examples in a model, AI
2
oers precise discrimination even with excessive variance and minimizes eects of
outlier examples. The pixel marking feature highlights defective spots, so you can identify genuine defects instantly.
AOI SYSTEMS

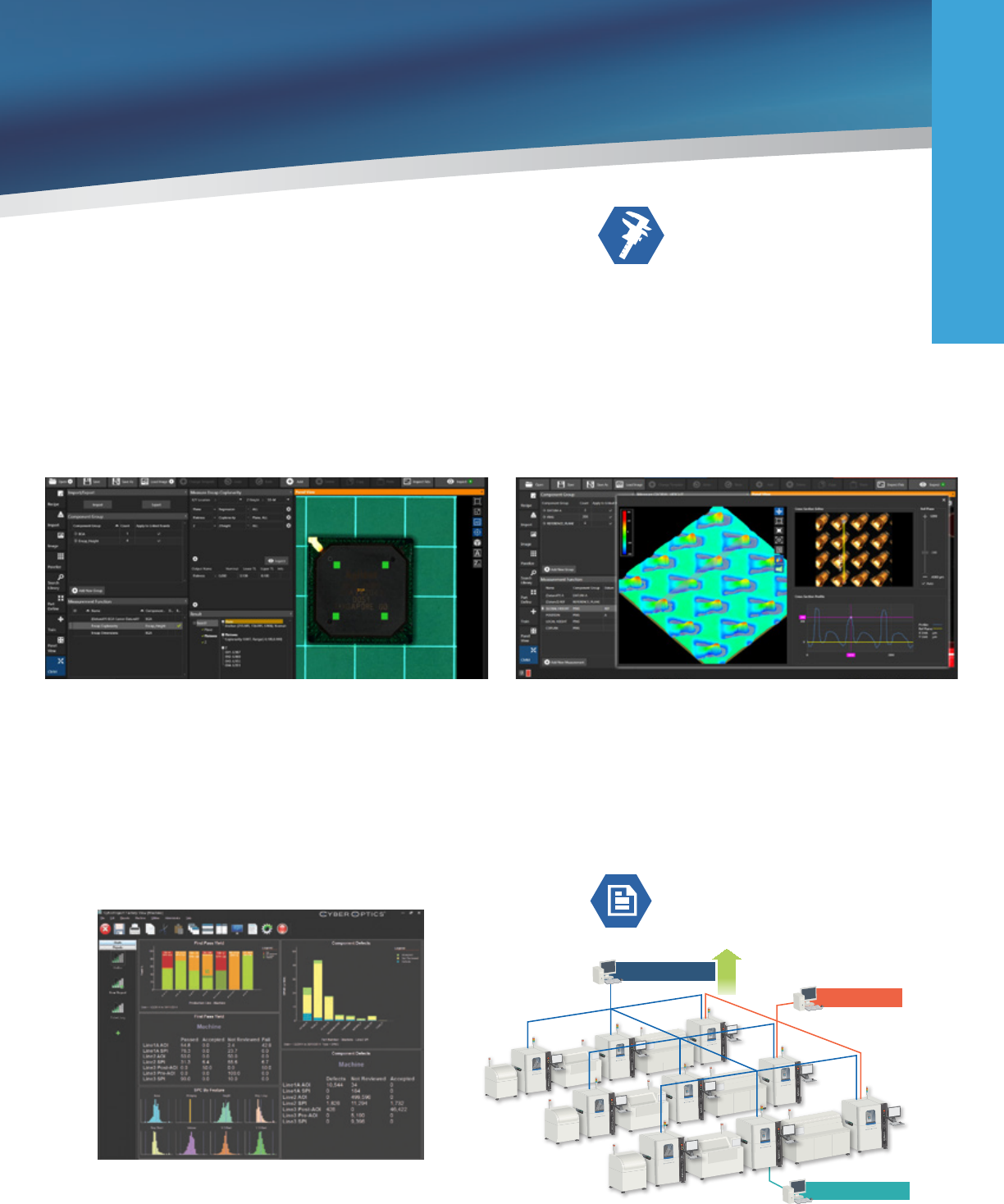

Faster, Highly Accurate Coordinate
Measurement (CMM) Suite
CyberCMM™, a comprehensive software suite of coordinate measurement tools provides highly accurate, 100%
metrology-grade measurement on all critical points much faster than a traditional CMM, including coplanarity,
distance, height and datum X, Y to name a few.
A fast and easy set-up can be performed with the world’s rst in-line CMM system for programming complex
applications as compared to slow, engineering resource-intensive set-up that typically requires multiple adjustments
with traditional coordinate measurement machines (CMMs).
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
CyberReport™ - Fast, Scaleable SPC Solution
CyberReport oers full-edged machine-level to factory-level SPC capability with powerful historical analysis and reporting
tools delivering complete traceability for process verication and yield improvement. CyberReport is easy to setup and
simple to use while providing fast charting with a compact database size.
Factory-level SPC
Line-level SPC
Machine-level SPC
Yield
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Sample Report
