Indust r y 4.0 Intellige nt Se lf- Le arnin g, S e lf-Adjusting Zero D e f e c t Line Smar t F ac tor y S o luti on C y berOptics oers a range of un ique val ue-add sof t ware soluti ons th at enable a uto mati on, redu…
Faster, Highly Accurate Coordinate
Measurement (CMM) Suite
CyberCMM™, a comprehensive software suite of coordinate
measurement tools provides highly accurate, 100% metrology-
grade measurement on all critical points much faster than a
traditional CMM, including coplanarity, distance, height and
datum X, Y to name a few.
A fast and easy set-up can be performed with the world’s rst
in-line CMM system for programming complex applications
as compared to slow, engineering resource-intensive set-up
that typically requires multiple adjustments with traditional
coordinate measurement machines (CMMs).

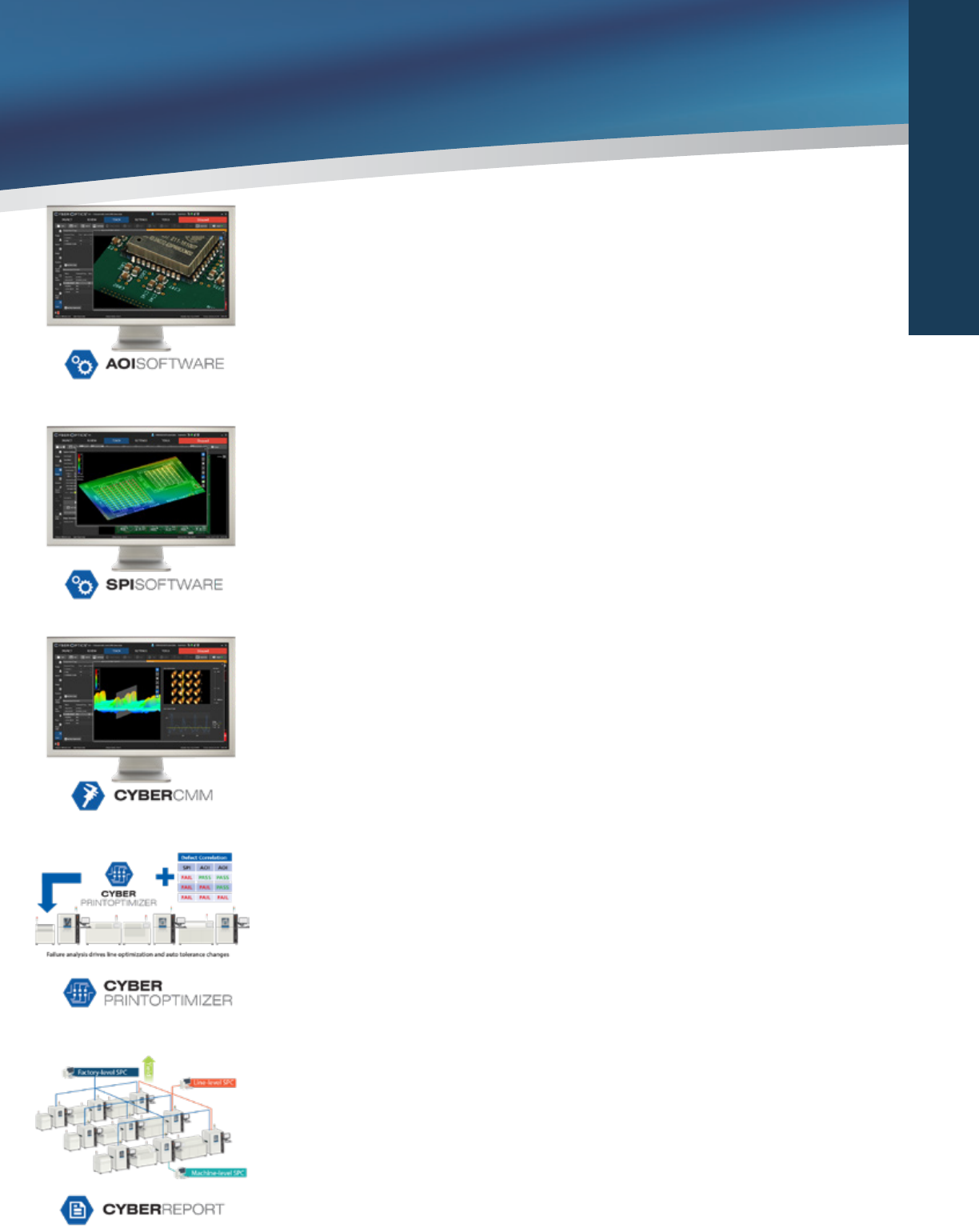

CMM SYSTEMS
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Coordinate Measurement Capability
CyberCMM provides fast and highly accurate with repeatable and reproducible coordinate measurements for SMT,
semiconductor, microelectronics and metrology applications.
• Line / Distance / X,Y / Mid Line
• Inter Point / Regression Shifted
• Datum X,Y / LSF X,Y Oset
• X,Y Oset / Value / Location / List of X,Y Values
• Height / Local Height / Regression / Radius
• Coplanarity / Distance to Plane / 2nd Order Fitting
• Dierence / Absolute / 2sqrt / VC
• Max / Min / Ave / Sigma / Plus / Minus / Multiply
Industry 4.0
Intelligent Self-Learning, Self-Adjusting Zero Defect Line
Smart Factory Solution
CyberOptics oers a range of unique value-add software
solutions that enable automation, reduce rework costs, minimize
scrap and optimize print process.
CyberOptics Software Solutions provides our customers and
partners the best added-value possible for inspection and
measurement in electronics manufacturing.
Save Time, Save Expense and Improve Yields with
CyberOptics’ Powerful Value-Add Solutions
SPI Pre Reow AOI Post Reow AOI
As members and participants in the IPC-Connected
Factory Initiative and The Hermes Standard, CyberOptics
is committed to advancing machine-to-machine
communication in SMT assembly and maximize line
throughput and traceability in an open protocol.
Enables smarter and faster inspection
• Reduce training eorts and minimize operator interaction saving time and cost
with the powerful yet simple software with intuitive multi-touch interface and 3D
visualization tools.
• Optimize printing process, establish stencil cleaning cycles and ne-tune printer set-up.
• Gain the power to do more with SPI results with closed loop feedback.
• Improve the solderability of smaller components by using the printing oset data for
compensating parts placement with forward capability.
Automatically optimizes the print process by proactively analyzing
current trend data.
• Improve yields and reduce downtime with its predictive process improvement
capability.
• Get started quickly with pre-dened templates
• Customize with customizable rules for specic product needs.
Enables smarter and faster inspection
• Ultra-fast programming capabilities, auto tuning and enhancements that
signicantly speed setup, simplify the process, reduce training eorts and
minimize operator interaction.
• Speed programming and performance with AI (Autonomous Image
Interpretation) technology for set-up in <13 minutes with a data-rich, pre-
loaded library and automated scripts that collect and update models all on their
own.
A complete Statistical Process Control (SPC), oers full-edged
machine-level to factory-level SPC capability to improves yields
• Attain eective process verication and control with traceability.
• Identify trends and enhance line yields with real-time monitoring tools for historical
analysis and reporting.
• Reduce training with easy-to-set-up intuitive interface that facilitates quick learning.
• Achieve fast parsing and charting speed with the robust and scalable software, while
enabling an extremely compact database size.
Enables smarter and faster coordinate measurement (Add-on)
• Extensive suite of CMM tools for precise measurement of critical features
• Signicantly speed measurements compared to traditional CMM systems, with high
accuracy and repeatability
• Multi-process capable – 3D AOI, 3D AOM, 3D CMM
INDUSTRY 4.0
