C yberP rin t OPTIMIZER™ Automa tically optimizes the print proces s by proactively analy zing accurate trend data – rst -ever in the industr y! Pre - dened templates help y ou get star ted quick ly while customizable …
CyberOptics’ software delivers world-class user experience
with its intuitive interface that is extremely stable and simple to
use, enabling the shortest learning curve. With full multi-touch
experience, SPI software oers a range of features that enable
smarter and faster inspection:
• Seamless integration of all applications - Teach, Inspection,
Defect Review and Real-time SPC
• Unlimited undo-redo and global search options in Teach
• Loads of smart, informative and relevant charts that provide
yield summary, FPY information, hotspot display, top 10 pad
failures, historical panel and more.
• Easy, hassle-free operation using multi-touch, multi-selection,
pinch-zoom and pan-move options.
Closed Loop/ Feed-forward Ready
Reduce rework costs, increase production throughput and improve quality
CyberOptics’ SPI systems fully support feedback and feed forward capability with leading Solder Paste Printer and SMT
Mounter vendors. Closed loop feedback gives you the power to do more with SPI results – optimize printing process,
establish stencil cleaning cycles and ne-tune printer setup. While feed-forward capability improves the solderability of
smaller components by using the printing oset data for compensating parts placement. All this means reduced rework
costs, increased production throughput and improved quality.
Closed Loop Feedback Feed Forward Ready
Shifted solder
Corrected data of
shifted solder
Gives you the power to do more with SPI results - optimize
printing process, establish stencil cleaning cycles and ne-tune
printer set-up
Improves solderability of smaller components for
reduced rework cost, improved production throughput
and improved quality
All Major Screen
Printers
CyberOptics
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Award-Winning SPI Software
Intuitive Design, Exceptional Usability
CyberPrint OPTIMIZER™
Automatically optimizes the print process by proactively analyzing accurate trend data – rst-ever in the industry! Pre-dened
templates help you get started quickly while customizable rules support perfect customization for specic product needs.
With its predictive process improvement capability, you can get better yields and reduce downtime.
SPI SYSTEMS
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Failure analysis drives line optimization and auto tolerance changes
Defect Correlation
SPI AOI AOI
FAIL
FAIL
FAIL
FAIL
FAIL FAIL
PASS PASS
PASS
CyberReport™ - Fast, Scaleable SPC Solution
CyberReport oers full-edged machine-level to factory-level SPC capability with powerful historical analysis and reporting
tools delivering complete traceability for process verication and yield improvement. CyberReport is easy to setup and
simple to use while providing fast charting with a compact database size.
Factory-level SPC
Line-level SPC
Machine-level SPC
Yield
CYBERREPORT
SPISOFTWARE
AOISOFTWARE
CYBERREPORT
CYBERCMM
SPISOFTWARE
AOISOFTWARE
CYBERCMM
CYBER
PRINTOPTIMIZER
CYBER
PRINTOPTIMIZER
Sample Report
SQ3000 oers unmatched accuracy with the revolutionary MRS technology by meticulously identifying and rejecting reections
caused by shiny components. Eective suppression of multiple reections is critical for true height measurement making MRS an
ideal technology solution for a wide range of applications including those with very high quality requirements.
CyberOptics has advanced the proprietary Multi-Reection Suppression (MRS) sensor to an even ner resolution. The Ultra-High
Resolution MRS sensor enhances the SQ3000 3D CMM platform, delivering superior inspection performance, ideally suited for
socket metrology, machined parts inspection, microelectronics and SMT applications where an even greater degree of accuracy
and inspection reliability is critical.
Fastest - Seconds, not Hours
• Signicantly speeds attaining coordinate
measurements vs. traditional CMMs
• Reduces engineering resource time
Easy-to-use Interface
• Simplies process with award-winning, intuitive, touch
screen experience
• Quick programming for complex applications
• Multi-process capable - AOI, SPI, AOM, CMM
Metrology Grade Accuracy
• Achieve metrology-grade accuracy with MRS-enabled
technology
• Repeatable and reproducible measurements for SMT,
semiconductor, microelectronics and metrology
applications
Coordinate Measurement (CMM)
The World’s First In-Line CMM - Ultimate in Speed and Accuracy for
SMT, Semiconductor, Microelectronics and Metrology Applications

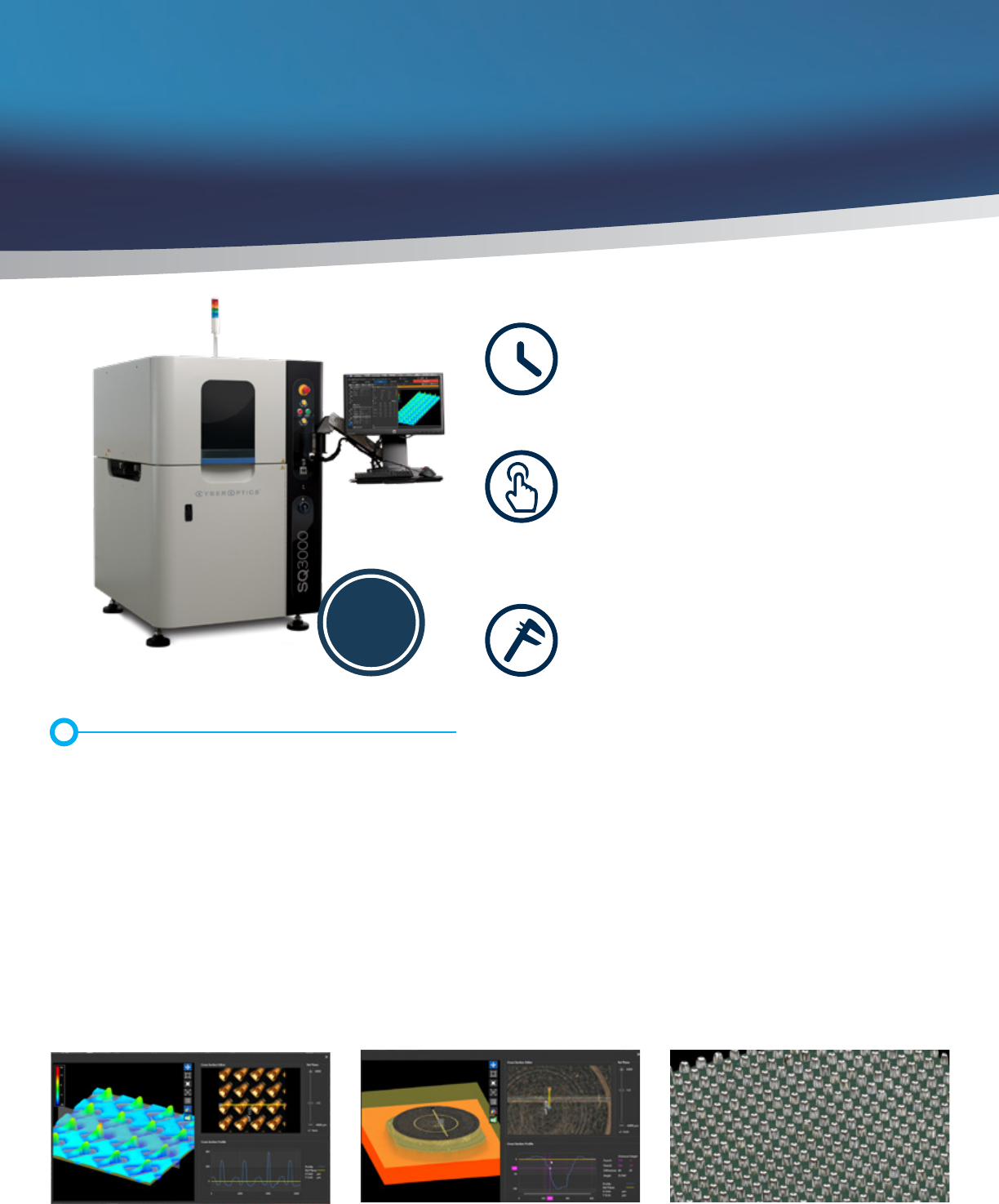

SQ3000™
|
3D CMM
• World’s rst in-line CMM system
• Delivering metrology grade accuracy at
production speed, powered by MRS Technology
Solder Ball and Bump
Industrial/ Machined PartsSocket Metrology
Multiple
MRS Sensor
Options
