Automated Optical Inspection (AOI)
Best-in-Class 3D AOI Technology
Powered by
MRS™ Technology
NEW
SQ3000™+
|
Multi-Function
Ultimate in Speed, Resolution and Accuracy for Advanced Applications
• Multi-process capability for 3D AOI, SPI and CMM
• Delivering metrology grade accuracy at production speed, powered by the new
Ultra-High Resolution 5-Micron MRS Sensor Technology
• Ideal for high-end applications for advanced SMT, advanced packaging, and high-end
coordinate measurement
AOI SYSTEMS
NEW
5 Micron
Ultra-High Res
MRS Sensor
Ultimate Combination of High Speed, High
Accuracy, at an even Higher Resolution
The SQ3000+ is powered by CyberOptics’ proprietary 3D sensing technology
with sophisticated fusing algorithms that enables metrology grade accuracy
at production speed. The result is ultra-high quality 3D images, high-speed
inspection and metrology, and improved yields and processes.
SQ3000+ oers unmatched accuracy with the advanced MRS sensor technology
by meticulously identifying and rejecting reection-based distortions caused
by shiny components and surfaces. Eective suppression of multiple reections
is critical for accurate measurements. The new, Ultra-High Resolution 5-Micron
MRS Sensor incorporated into the SQ3000+ is specically designed for
advanced applications with the most demanding requirements.
Inspection and Metrology Solution for Assembly and Process
Improvement
The SQ3000+ with MRS technology is ideal for high-end inspection and metrology applications including advanced
packaging, mini/micro LED, advanced SMT applications for automotive, medical, military, aerospace and advanced
electronics, 008004/0201 solder paste inspection (SPI), socket metrology and other high-end coordinate measurement
(CMM) applications where quality and reliability are critical.
Automated Optical Inspection (AOI)
Best-in-Class 3D AOI Technology

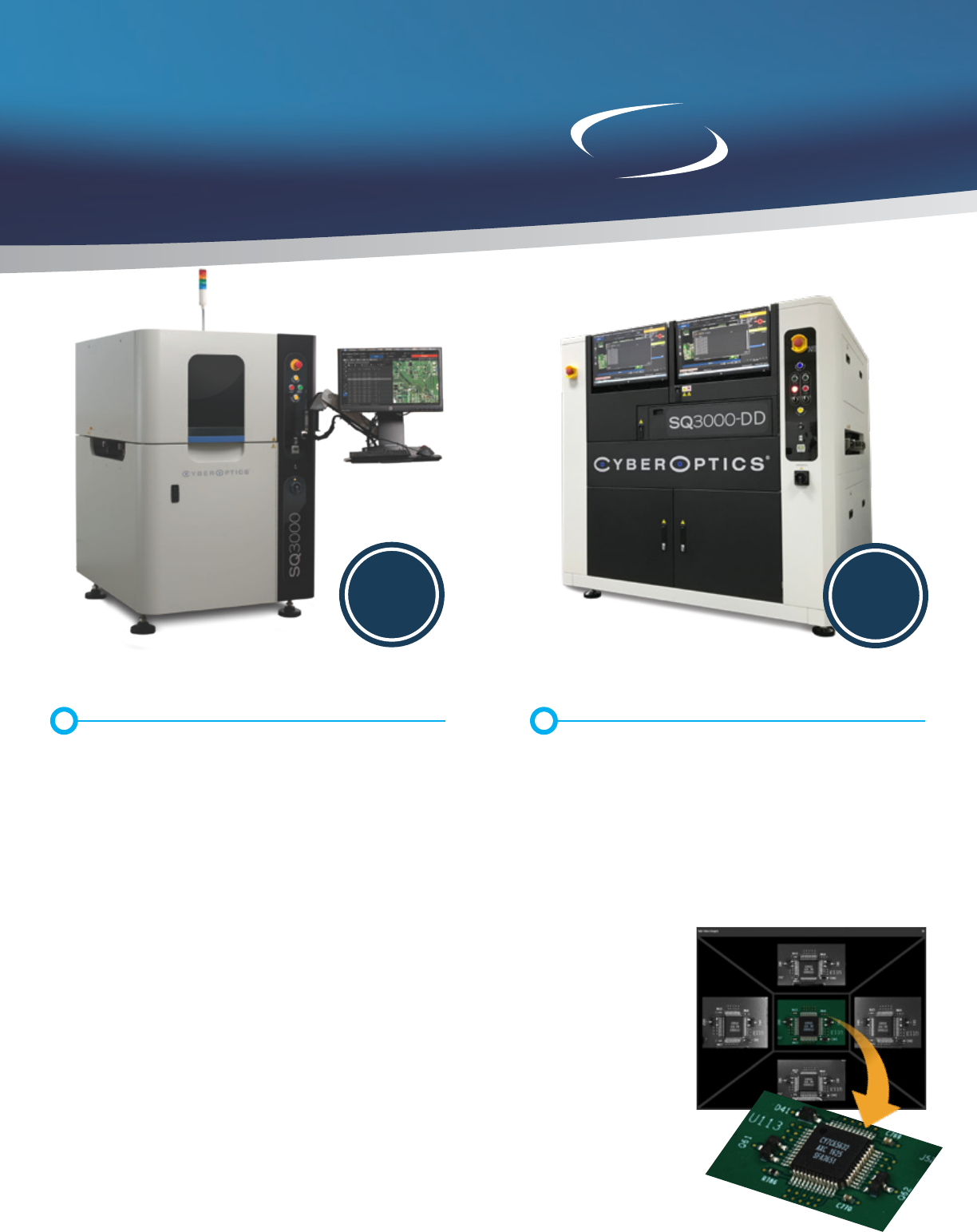

SQ3000™
|
Multi-Function
Ultimate in Speed and Accuracy
• Multi-process capability for 3D AOI, SPI and CMM
• Delivering metrology grade accuracy at
production speed, powered by MRS Technology
• SQ3000™ X available for Large Board capability
• SQ3000 for 3D AOI, SQ3000 for 3D SPI,
SQ3000 for 2D AOI also available
Proprietary 3D Multi-Reection Suppression (MRS)
Sensor Technology
The revolutionary MRS technology delivers unmatched accuracy by meticulously
identifying and rejecting reections caused by shiny components and reective solder
joints. Eective suppression of multiple reections is critical for highly accurate inspection
and measurement, making MRS an ideal technology solution for a wide range of
applications including those with very high quality requirements.
CyberOptics’ unique sensor architecture with four multi-view 3D sensors and a parallel
projector, simultaneously captures and transmits multiple images in parallel while
proprietary 3D fusing algorithms merge the images together, delivers metrology grade
accuracy at production speed. The SQ3000 platform has a number of MRS sensor options
for inspection and metrology with various speeds and resolutions.
Powered by
MRS™ Technology
SQ3000™ DD
|
3D AOI
Dual Lane - Dual Sensor
• Dual MRS Sensors
• Delivering metrology grade accuracy at
production speed, powered by MRS Technology
• Switch from dual to single lane to inspect large
boards
• SQ3000™ D Dual Lane option available
Multiple
MRS Sensor
Options
Multiple
MRS Sensor
Options
