CP45NEO配件手册.pdf - 第117页
Power Block Schematic NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J9061167B I/F BOARD POWER CABLE ASS'Y MK-CV01 2 J9061172B CONVEYOR MPTOR PACK CABLE ASS'Y MK-CV06 3 J9061174B READY RELAY CABLE ASS'Y MK…

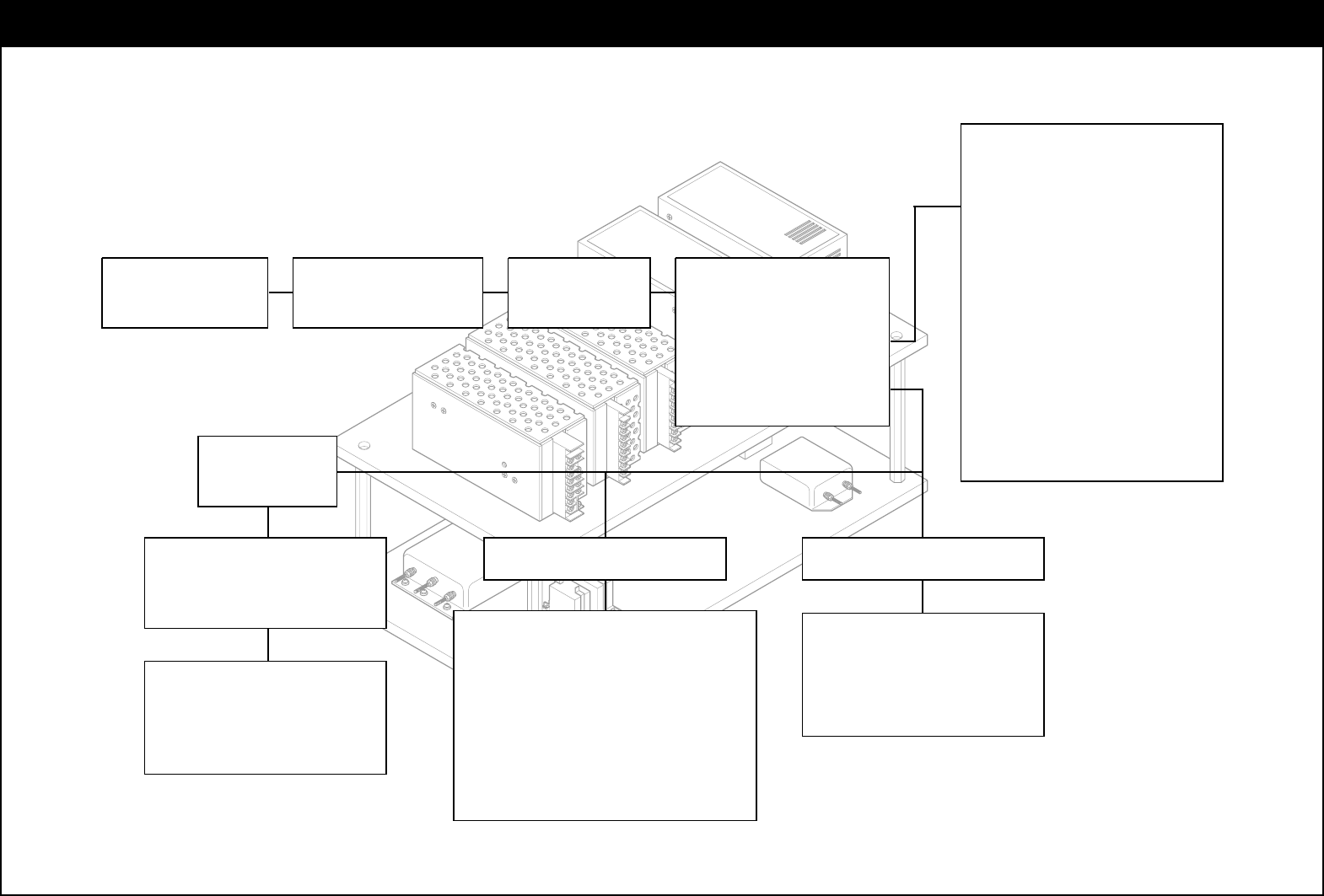

Power Block Diagram
- 139 -
ISOLATION
SWITCH
CIRCUIT
BREAKER
NOISE
FILTER #1
TRANSFORMER
AC220
AC110
SERVO DRIVER
Y AXIS
X AXIS
Z1 AXIS
Z2 AXIS
Z3 AXIS
Z4 AXIS
Z5 AXIS
Z6 AXIS
S AXIS
W AXIS
NOISE
FILTER #2
POWER SUPPLY #1
POWER SUPPLY #2
PC POWER SUPPLY
POWER SUPPLY #4POWER SUPPLY #3
CONV. I/F B/D
HEAD I/F B/D
FRONT/REAR FEEDER I/F B/D
HEAD/STAGE ILL. I/F B/D
CONV. PACK B/D
R STEP I/F B/D
Y SUB I/F B/D
FRONT/REAR STICK FEEDER
R1/2 STEP DRIVER
R3/4 STEP DRIVER
R5/6 STEP DRIVER
CONV. STEP DRIVER
VME BACKPLANE
PC MOTHERBOARD
HDD
FDD
Power Block Schematic
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9061167B I/F BOARD POWER CABLE ASS'Y
MK-CV01
2
J9061172B CONVEYOR MPTOR PACK CABLE ASS'Y
MK-CV06
3
J9061174B READY RELAY CABLE ASS'Y
MK-CV08
4
J9061190B CONVEYOR UPS POWER DROP CABLE
MK-CV24
5
J9061199B FEEDER I/F BOARD POWER CABLE ASS'Y
MK-FD01
6
J9061200B FEEDER I/F BOARD POWER CABLE ASS'Y
MK-FD02
7
J9061207B I/F BOARD POWER CABLE ASS'Y
MK-HD01
8
J9080101A X MOTOR POWER CABLE ASS'Y MK-MD01P
9
J9080102A X MOTOR ENCODER CABLE ASS'Y MK-MD02P
10
J9080103A X MOTOR CABLE ASS'Y MK-MD03P
11
J9080104A Y MOTOR POWER CABLE ASS'Y MK-MD04P
12
J9080105A Y MOTOR ENC CABLE ASS'Y MK-MD05P
13
J9080106A Y MOTOR CABLE ASS'Y MK-MD06P
14
J9080107A R_RESISTER CABLE ASS'Y MK-MD07P
15
J9080108A Z1/2/3 MOTOR POWER CABLE ASS'Y MK-MD08P
16
J9080109A Z1/Z2/Z3 MOTOR ENCODER CABLE ASS'Y MK-MD09P
17
J9080113A Z4/Z5/Z6 MOTOR POWER CABLE ASS'Y
MK-MD11P
18
J9080114A Z4/5/6 MOTOR ENCODER CABLE ASS'Y MK-MD12P
19
J9061235B Z4/Z5/Z6 MOTOR CABLE ASS'Y
MK-MD13
20
J9080118A SWING MOTOR POWER CABLE ASS'Y MK-MD14P
21
J9080119A SWING MOTOR ENCODER CABLE ASS'Y MK-MD15P
22
J9080120A SWING MOTOR CABLE ASS'Y MK-MD16P
23
J9080121A WIDTH MOTOR POWER CABLE ASS'Y MK-MD17P
24
J9080122A WIDTH MOTOR ENCODER CABLE ASS'Y MK-MD18P
25
J9080123A WIDTH MOTOR CABLE ASS'Y MK-MD19P
26
J9061244B R DRIVER POWER CABLE ASS'Y
MK-MD22
27
J9061245B R DRIVER POWER CABLE ASS'Y
MK-MD23
- 144 -
Power Block Schematic
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
J9061246B R DRIVER POWER CABLE ASS'Y
MK-MD24
29
J9061248B CONVEYOR DRIVER POWER CABLE ASS'Y
MK-MD26
30
J9061250A CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD28
31
J9061251A CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD29
32
J9061252A CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD30
33
J9061253A CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD31
34
J9061254A CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD32
35
J9061255A CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD33
36
J9061256B CONVEYOR CONTROL PACK CABLE ASS'Y
MK-MD34
37
J9061257A CONVEYOR AC MOTOR CABLE ASS'Y
MK-MD35
38
J9061260A
MAIN POWER INPUT CABLE ASS'Y MK-PW01
39
J9061925A
MAIN POWER INPUT CABLE ASS'Y MK-PW02-NCE
40
J9061926A
MAIN POWER INPUT CABLE ASS'Y MK-PW03-NCE
41
J9061263B
MAIN POWER INPUT CABLE ASS'Y MK-PW04
42
J9061927A
MAIN POWER INPUT CABLE ASS'Y MK-PW05-NCE
43
J9061928A
MAIN POWER INPUT CABLE ASS'Y MK-PW06-NCE
44
J9061929A
MAIN POWER INPUT CABLE ASS'Y MK-PW07-NCE
45
J9061267B
TRANSFORMER POWER CABLE ASS'Y MK-PW08
46
J9061268B
TRANSFORMER POWER CABLE ASS'Y MK-PW09
47
J9061269B
POWER CABLE ASS'Y MK-PW10
48
J9061270B
POWER CABLE ASS'Y MK-PW11
49
J9061271B
POWER CABLE ASS'Y MK-PW12
50
J9061272B
POWER CABLE ASS'Y MK-PW13
51
J9061273B
START/STOP SWITCH CABLE ASS'Y MK-PW14
52
J9061274B
SAFETY RELAY POWER CABLE ASS'Y MK-PW15
53
J9061275A
FAN CABLE ASS'Y MK-PW16
54
J9061276A
FAN CABLE ASS'Y MK-PW17
- 145 -
