CP45NEO配件手册.pdf - 第55页
Flying Illumination Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7259018A ILLUM 1 A5052 2 J7259020A COMPART 7 ACRYL 3 J7259021A DIFFU-UP 1 DIFFU-UP 4 J7259022A DIFFU-M 7 DIFFU-M 5 J7259023A DIFFU-BOTTOM 1 D…

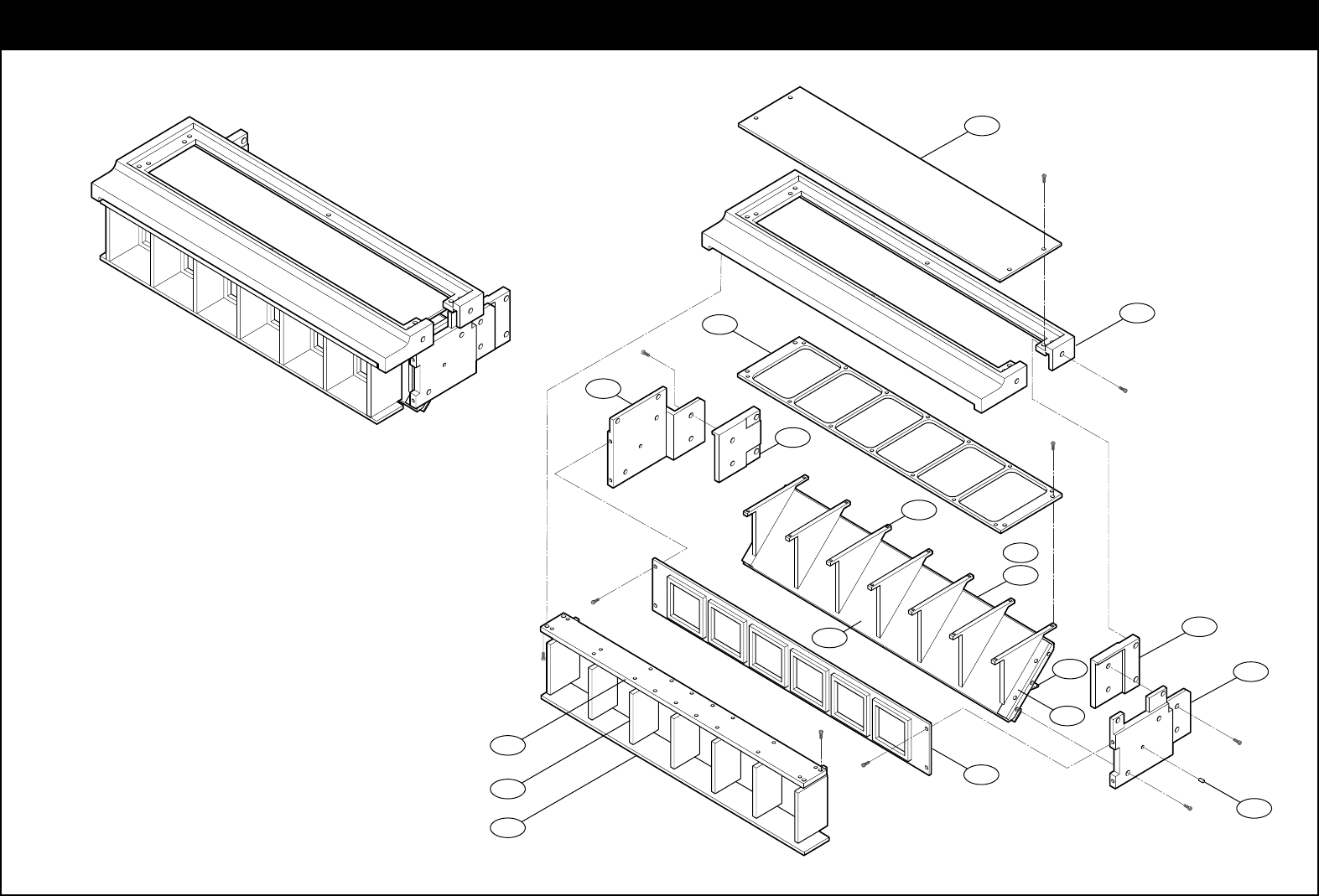

Flying Illumination Ass'y
- 52 -
17
12
14
15
1
2
7
11
8
10
16
18
3
13
4
5
6
9
Flying Illumination Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7259018A ILLUM 1 A5052
2
J7259020A COMPART 7 ACRYL
3
J7259021A DIFFU-UP 1 DIFFU-UP
4
J7259022A DIFFU-M 7 DIFFU-M
5
J7259023A DIFFU-BOTTOM 1 DIFFU-BOTTOM
6
J7159132A COMPART_BASE 1 A5052
7
J7159161A STAND-C 1 STAND-C
8
J7159162A STAND-RC 1 STAND-RC
9
J7159128B STAND 1 A5052
10
J7159129B STAND-R 1 A5052
11
J7159130A BOTTOM 1 BOTTOM
12
J7159131A PIN 2 PIN
13
J6755003A HALF MIRROR 1 HALF MIRROR
14
J9059011A LIGHT ASS'Y [J9059011A] 1 LIGHT ASS'Y [J9059011A]
15
J7159163A COVER BOTTOM 1 PCB_AXIS
16
J7159125A HOLDER 1 HOLDER
17
J7159127A PRESS 1 PRESS
18
J7159126A BLIND 1 BLIND
19
20
21
22
23
24
25
26
27
- 53 -
Flying Vision Ass'y
- 54 -
7
5
6
1
8
2
3
4
