PC Mother Board Interface NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J9061173B INLINE IN/OUT CABLE ASS'Y MK-CV07 2 J9080071A PRINT PORT CABLE ASS'Y MK-PC01 3 J9080072A TRAY FEEDER CABLE ASS'Y MK-VM01 4…

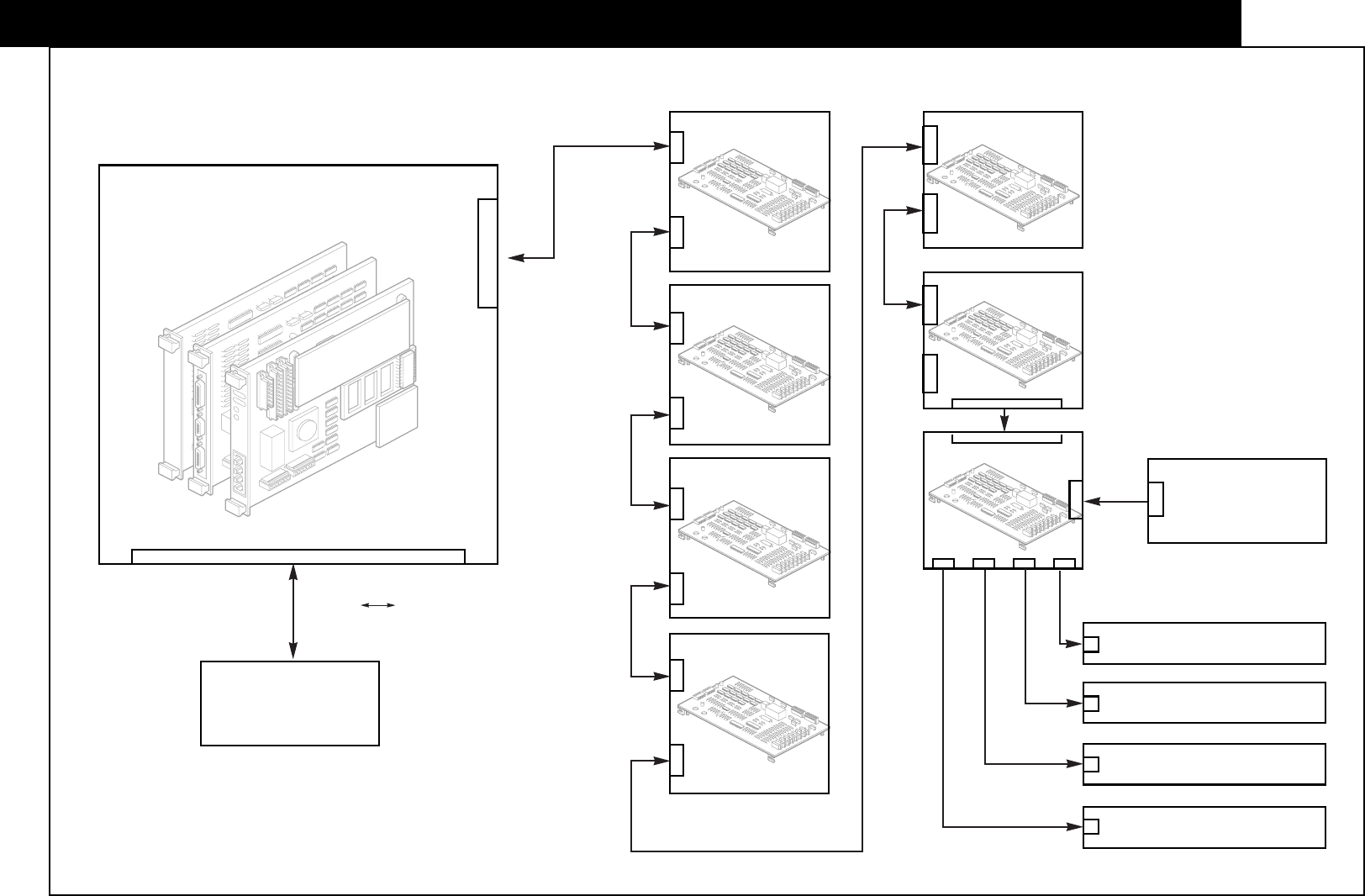

The Connection Between CAN Master Board and I/F Boards
- 94 -
CAN MASTER BOARD
CN1
FRONT FEEDER
I/F BOARD
HEAD ILL.
I/F BOARD
HEAD
I/F BOARD
X SUB I/F
BOARD
Y SUB I/F
BOARD
REAR FEEDER
I/F BOARD
STAGE ILL
I/F BOARD
CONVEYOR I/F
BOARD
AXIS Z1/2 Board
AXIS Z3/4 Board
AXIS Z5/6 Board
CN3
CN3
CN2
CN3
CN2
CN14
CN14
CN8 CN7 CN6 CN5
CN3
CN4
CN2
CAN
CAN
CAN
CAN
ISA
CAN
CAN
HOME SENSOR SIGNAL
HOME SENSOR SIGNAL
CN3
CN4
CN3
CN2
CN3
CN2
CN3
AXIS XY Board
CN3
CN3
CN3
VME PC
COMMUNICATION
PC ISA
I/F BOARD
PC Mother Board Interface
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9061173B INLINE IN/OUT CABLE ASS'Y MK-CV07
2
J9080071A PRINT PORT CABLE ASS'Y MK-PC01
3
J9080072A TRAY FEEDER CABLE ASS'Y MK-VM01
4
J9080073A TRAY FEEDER CABLE ASS'Y MK-VM02
5
J9080074A TRAY FEEDER CABLE ASS'Y MK-VM03
6
J9080065A USB EXTENSION MK-PC06
7
J9080064A PC ISA IF BOARD CABLE ASSY MK-CA01
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 96 -
VME Console Interface
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9080072A TRAY FEEDER CABLE ASS'Y MK-VM01
2
J9080073A TRAY FEEDER CABLE ASS'Y MK-VM02
3
J9080074A TRAY FEEDER CABLE ASS'Y MK-VM03
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 98 -
