Rear Middle P anel Ass'y - 87 - 9 13 3 1 2 11 5 5 6 6 6 6 6 6 7 8 10 4 15 17 16
Control Rack Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J4401017A POWER SUPPLY 1 SA100-DOW(+/-12V)
2
3
J4401018A POWER SUPPLY 1 VSF(LN)200-05
4
J4401029A SWITCHING POWER SUPPLY[POWER ST30 1 ST-300WHF
5
J1202093 NOISE FILTER [SN-E20H-CM] 1 SN-E20H-CM
6
7
8
9
10
J5101017A HARD DISK DRIVER 1 IBM 40G (7200RPM)
11
J7152029A FDD/HDD BRACKET 1 J7152029A
12
J5109003A ANTI-VIBRATION GUIDE(2.5")[DRIVER 2.5"] 1 DRIVER 2.5"
13
14
J3409026A bimetal[OTHER, N-35] 1 OTHER, N-35
15
16
17
J9080148A CP45NEO RACK ASSY (REV4.0)[J9080148A] 1 J9080148A
18
19
20
21
22
23
24
25
26
27
- 86 -

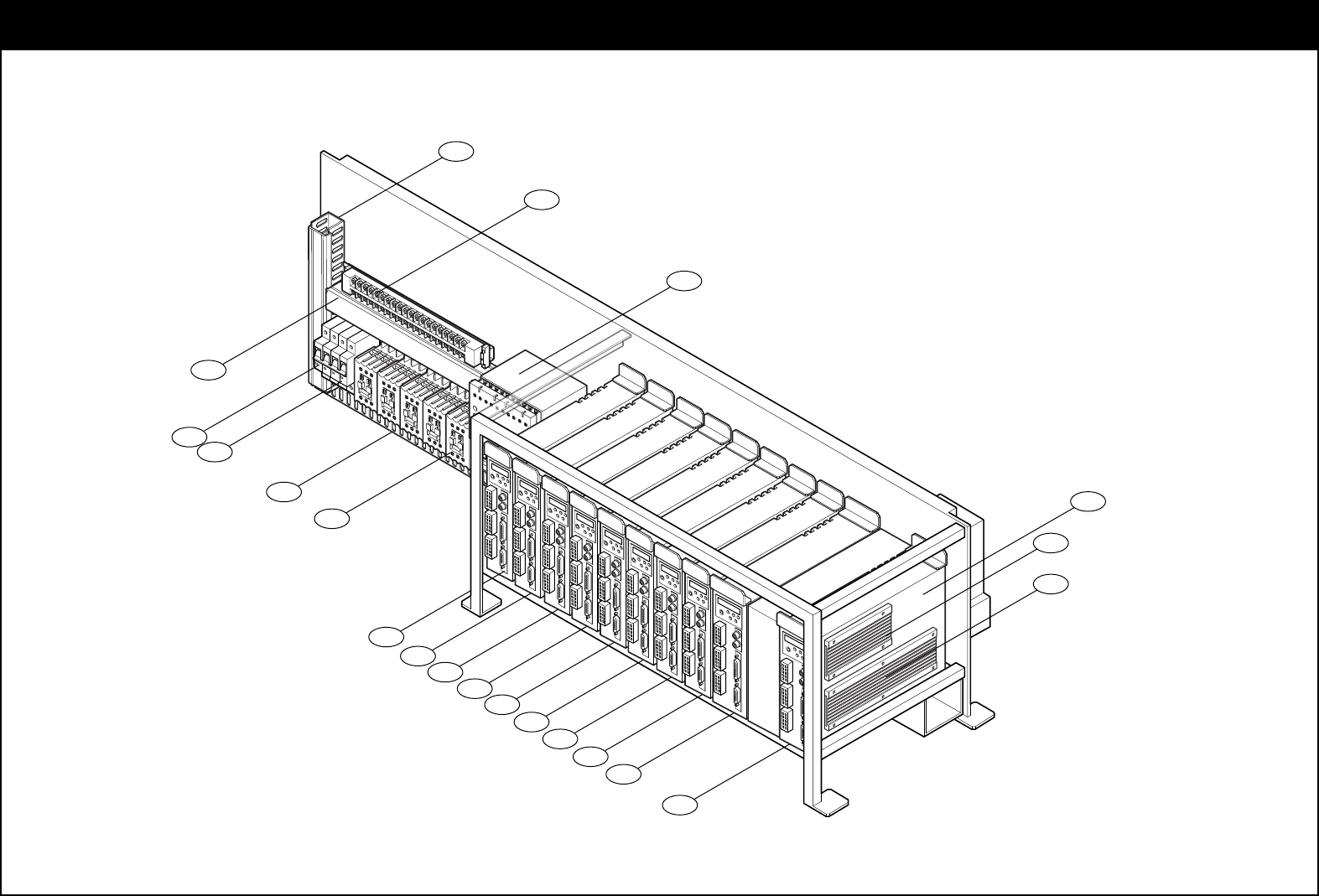

Rear Middle Panel Ass'y
- 87 -
9
13
3
1
2
11
5
5
6
6
6
6
6
6
7
8
10
4
15
17
16
Rear Middle Panel Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J3603006A CIRCUIT PROTECTOR
1
FAZ-2-B20
CE
J1202402 CIRCUIT PROTECTOR [DCP52DF 20A-L-S]
1
DCP52DF 20A-L-S
NON-CE
2 J3603007A
CIRCUIT PROTECTOR
1
FAZ-2-C16
CE
J1202151
CIRCUIT PROTECTOR [DCP52DF 15A-L-S]
1
DCP52DF 15A-L-S
NON-CE
3
J1202401
MAGNETIC CONTACTOR
5
GMC-12
4
J3501024A
SAFETY RELAY
1
G9D-301(AC/DC24V)
CE
5
J3153033A AC SERVO DRIVER
2
MSDC015A3A06
6
J3153032A AC SERVO DRIVER
6
MSDC5A5A3A06
7
J3153034A AC SERVO DRIVER
1
MSDC045A1A06
8
J3153035A AC SERVO DRIVER
1
MSDC153A4A06
9
PVC DUCT
1
35W*60H*1450L,GRAY
10
PVC DUCT
1
60W*80H*400L,GRAY
11
MOUNTING RALL(CE)
1
NS35/7, 5 PERFORATED (250 mm)
TERMINAL BLOCK RALL(NON-CE)
1
DTR1 (300 mm)
12
13
J1201040 TERMINAL BLOCK SHORT BAR [BNJ26FW
2
1
BNJ26FW 20A
J1201041 TERMINAL BLOCK NAME PLATE [DTNN1] DTNN1
J1201042 TERMINAL BLOCK RAIL [DTR1] DTR1
J1201043 TERMINAL BLOCK SAFETY COVER [DTCN1] DTCN1
J1201044 TERMINAL BLOCK STOPPER [DTSN 1] DTSN 1
J1201045 TERMINAL BLOCK (MODULE TYPE) DATB-400-15A
J1202015 TERMINAL BLOCK [DTAN 35] DTAN 35
14
15 J7052848A
BKT-RE/RESISTOR 1
J7052848A
16 J2029008A
REGENERATIVE RESISTOR 1
IRN100S
17 J2029009A
REGENERATIVE RESISTOR 1
IRF300S
18
