CP45NEO配件手册.pdf - 第85页
17 10 11 12 Electric De vice Ass'y - 83 - 13 14 20 21 19 18 8 7 22 5 4 2 15
Board Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
29
30
J9060060B CAN FEEDER BOARD ASS'Y 2 REV 1.0
31
J9801541 CONVEYOR PACK BOARD ASS'Y 1 30-CONV3-IO BOARD(2)
32
J9060073A LED98-9 BOARD ASSY 1 STAGE INNER light
33
J9060074A STAGE OUTER light BOARD ASSY 1 STAGE OUTER light
34
J9060075A STAGE SIDE light BOARD ASSY 1 STAGE SIDE light
35
J9060097A SSA-VIS-FIX-IF ASS'Y 1 SSA-VISION-FIX-IF
36
J9060139C CAN STAGE light BOARD ASS'Y 1 CAN STAGE ILLUM (REV1.1)
37
J9060063B CAN CONVEYOR BOARD ASS'Y 1 REV 1.0
38
J9800398 X-AXIS I/F BOARD ASS'Y 1 C30-Z2-206-00-20 P/S
39
J9060055A Y SUB BOARD ASS'Y 1 REV 1.0
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
- 82 -
17
10
11
12

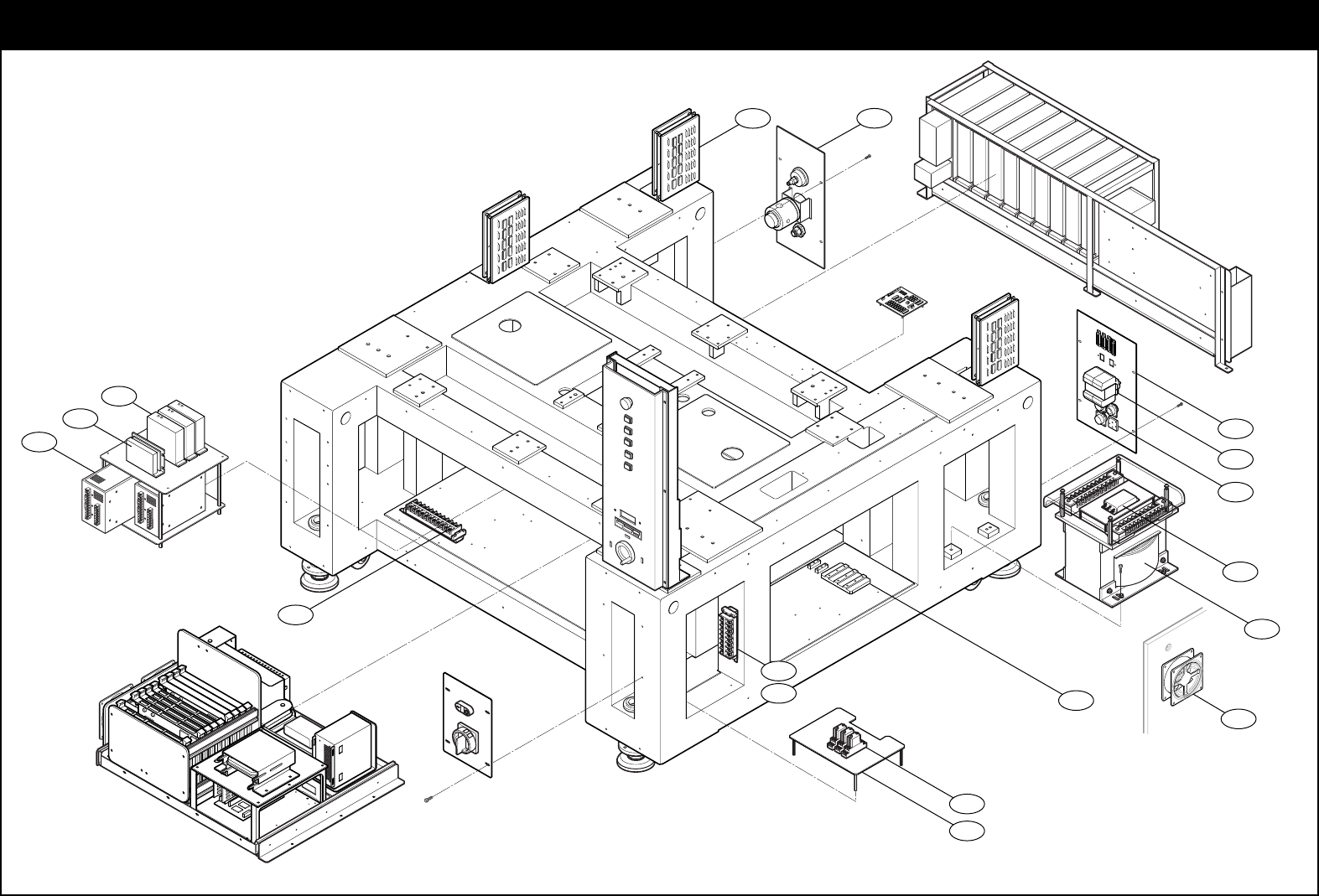

Electric Device Ass'y
- 83 -
13
14
20
21
19
18
8
7
22
5
4
2
15
Electric Device Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
2
J1202286 POWER SUPPLY[J1202286] 2 J1202286
3
4
J3152009A C/V STEP MOTOR DRIVE 1 CSMD2-LU340CON
5
J3152007A STEP MOTOR DRIVER 3 PMD03C
6
7
J7052349B I/F BOARD BRACKET 1 J7052349B
8
J7052019C PANNEL-AIR SERVICE 1 J7052019C
9
10
J7052366I PANEL(POWER INPUT-CE) 1 J7052366I
11 J3603008A
CIRCUIT BREAKER 1
FAZN B32-2-FIM0.03
12
J7152027A GROUND TERMINAL 1
13 J2609004A
TRANSFORMER 1 1PH, 6.3KVA CE
14
J7152028B GROUND BASE 1 J7152028B
15
J1202399
COOLING FAN 4 SJ1238HA1 (BALL BEARING)
16
J7252028A N/F COVER(POWER) 1 0145-614000-101-C
17 J1202404
Noise Filter(#1)[J1202404] 1 SUP-E30H-CM
18
J7052355B RELAY BASE 1 J7052355B
19
J1200261
RELAY SOCKET 2 PYF08A
20
J9061707A CE TERMINAL BLOCK 3
1
MK-TB03CE
21 J3602005A FUSE TERMINAL BLOCK
5
SRSI 10-T35-K
22
J9061706A CE TERMINAL BLOCK 2
1
MK-TB02CE
23
24
25
26
27
- 84 -
