CP45NEO配件手册.pdf - 第93页
Stage Camera Ass'y - 91 - 19 20 2 17 3 16 8 13 7 18 4 6 11 5 1 15 9 14 12 10
Front Function Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7070003A PANEL-MAIN S/W 1 J7070003A
2
J7070004A USB PORT COVER 1 J7070004A
3
J7070005A CONNECTOR BKT 1 J7070005A
4
J7070006A OP PANEL-FRONT 1 J7070006A
5
J7070007A SUPPORT-F/PANEL 1 J7070007A
6
J7070070A FDD BRACKET 1 J7070070A
7
J7070069A CONNECTOR BKT SPACER 1 J7070069A
8
J7269041A FDD ISOLATION SPACER 4 J7269041A
9
J2100058 SPRING 1 0131-614007
10
J1201001 EMERGENCY SWITCH 2 AH165-VR02
11
J1201021 BUZZER 1 AH30-XBE(DC/AC12-24V)
12
J7052320C PANEL-MAIN S/W 1 J7052320C
13
J4713014A I/O SWITCH LED LAMP 1
M22-LED
14 J3403041A I/O SWITCH
1
RMQ TITAN M22
15
J3406005A LOAD SWITCH
1
PI-25
16
J7052320C PANEL-MAIN S/W
1
J7052320C
17
J7052225B FDD PANEL
1
J7052225B
18
19
20
21
22
23
24
25
26
27
- 90 -

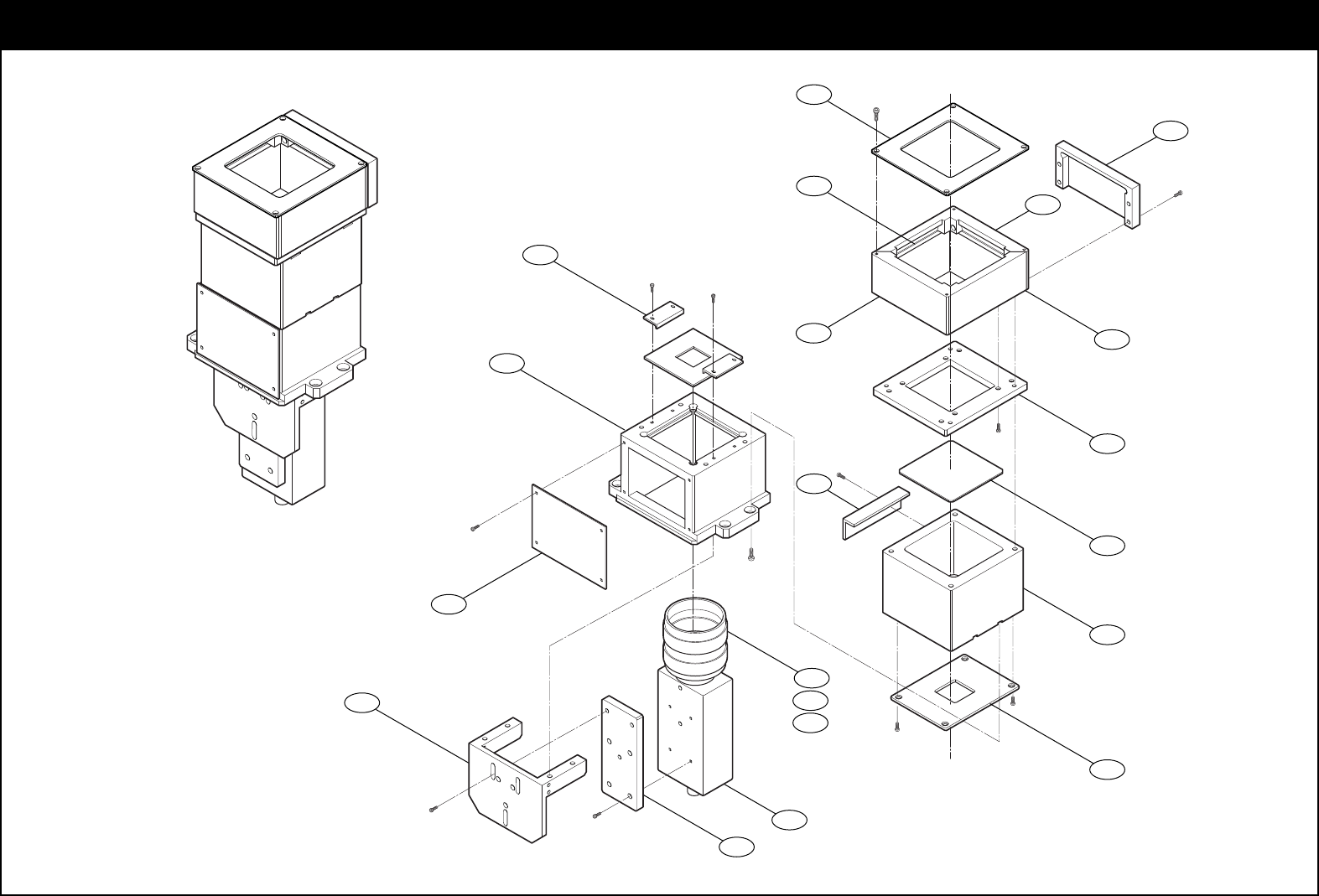

Stage Camera Ass'y
- 91 -
19
20
2
17
3
16
8
13
7
18
4
6
11
5
1
15
9
14
12
10
Stage Camera Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7159171C CAMERA STAND 20mm 1 J7159171C
2
J7159119A CAMERA HOLDER 1 J7159119A
3
J7159113A LIGHT GUIDE#2 2 J7159113A
4
J7159112A LIGHT GUIDE#1-1 1 J7159112A
5
J7159111A LIGHT GUIDE#1 1 J7159111A
6
J7159114B WIRE COVER 1 J7159114B
7
J7159115A LIGHT GUIDE BLOCK 1 J7159115A
8
J7159166D TUBE 20mm 1 J7159166D
9
J7159168C LED BLOCK 20mm 1 J7159168C
10
J7159121A LIGHT COVER 1 J7159121A
11
J7159123A SUPPORT COVER 1 J7159123A
12
J7159160C GLASS PRESS 1 J7159160C
13
J7259016A DIFFUSER 1 J7259016A
14
J7259017B REFLECTOR 4 J7259017B
15
J7259026A LED-PRESS 2 J7259026A
16
J6754004B COVER GLASS 1 J6754004B
17
J1300491 CCD CAMERA 1 SFA-410ED
18
J6739005A COSMICAR LENS 1 B2518
19
J1300965 CLOSE UP RING 1 T5
20
J1300983 CLOSE UP RING 1 T1 (PENTAX)
21
22
23
24
25
26
27
- 92 -
