Con ve y or 3-6 Ass'y - 71 - 58 62 63 61 60 59 54

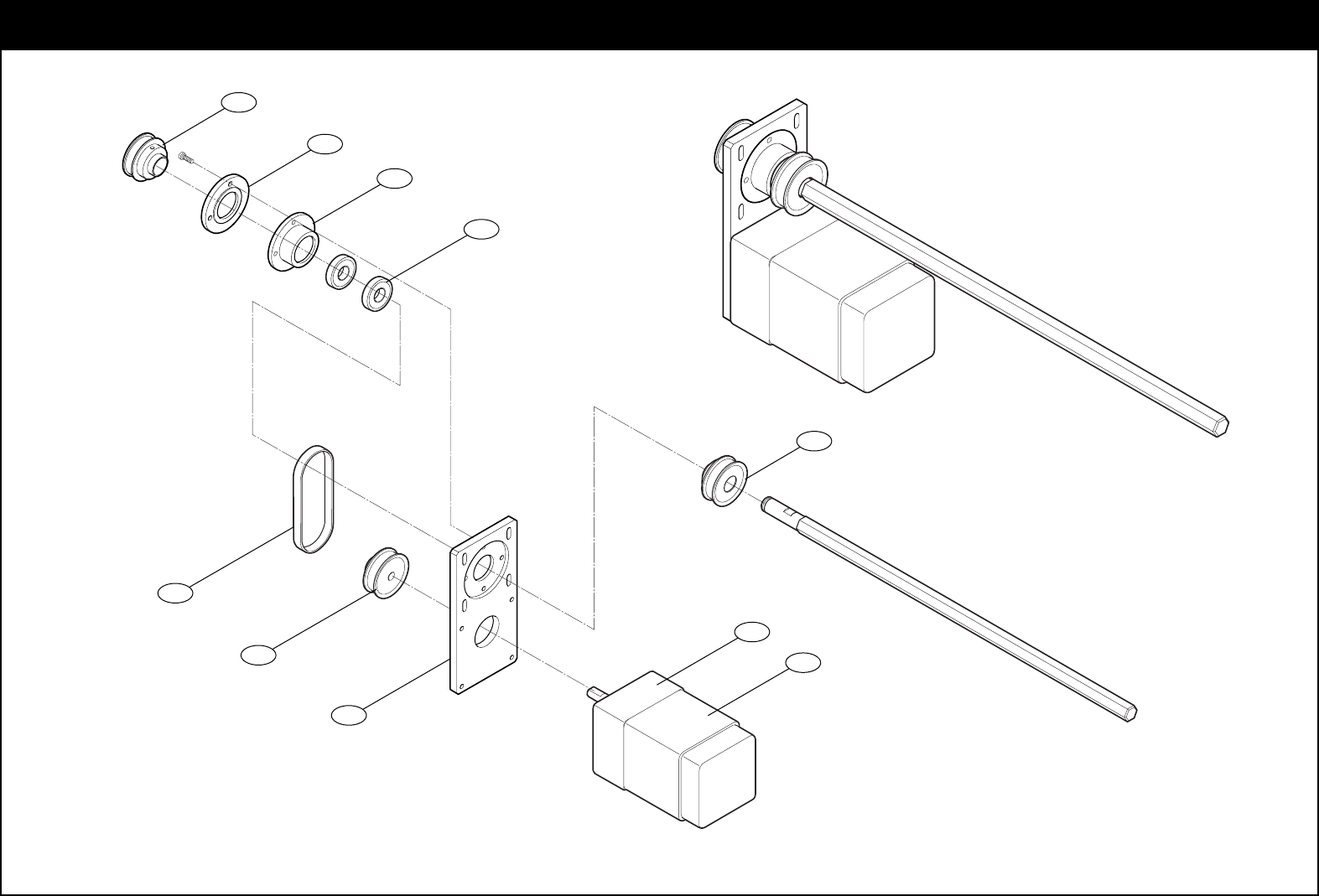

Conveyor 3-5 Ass'y
- 70 -
67
65
52
53
66
67
57
54
55
56

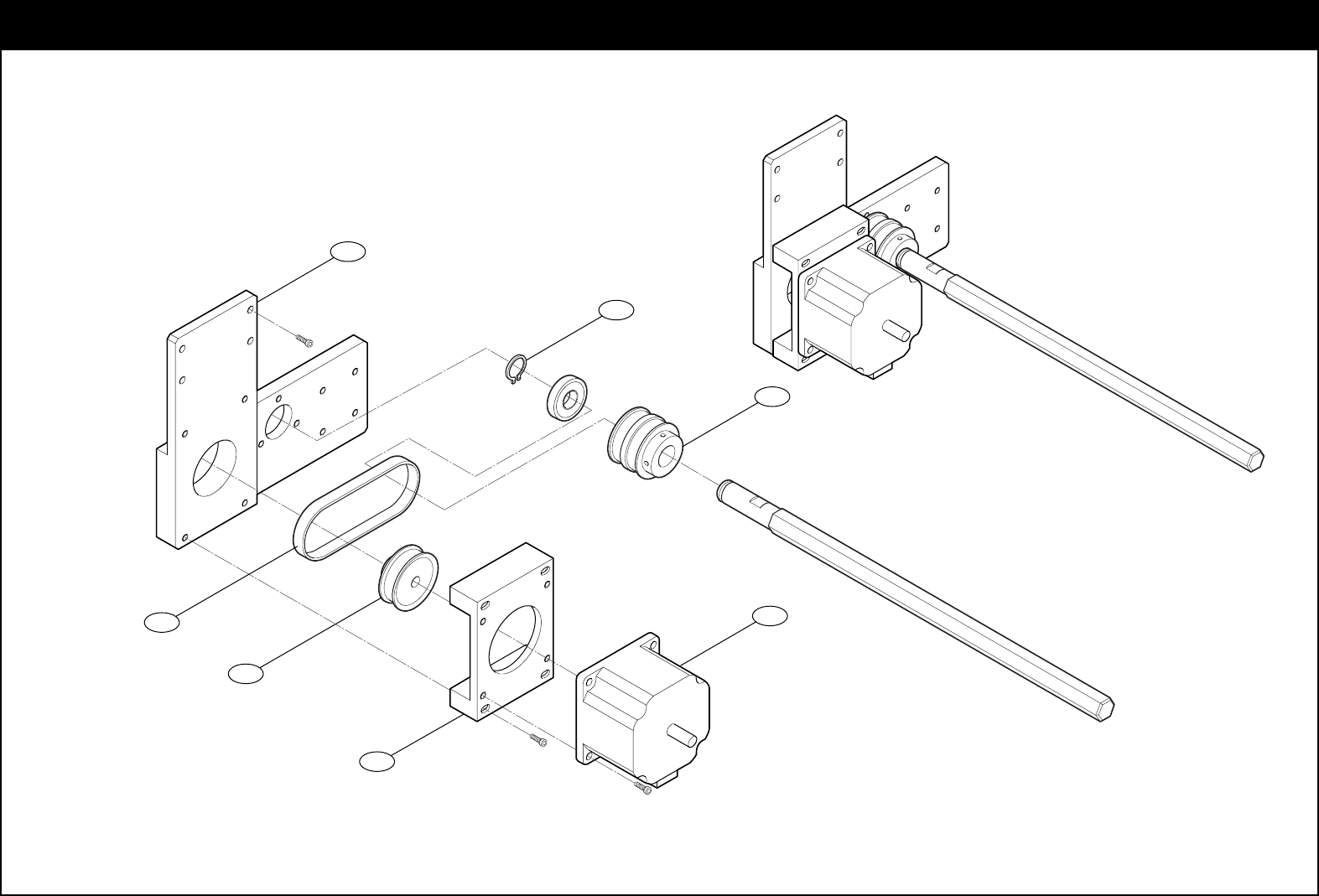

Conveyor 3-6 Ass'y
- 71 -
58
62
63
61
60
59
54
Conveyor 3 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J2102043 SENSOR BRACKET 2 0135-641124
2 J1300094 PHOTO SENSOR 3 EE-SX672A
3 J6602027A FLAT BELT(EXT) 2 HNB-5E, 1196L, 7W
4 J7053009A IDLER SHAFT-S 18 J7053009A
5 J2101814 IDLER 1 8 0135-641101
6 J2101816 IDLER SPACER-S 18 0135-641103
7 J2101815 IDLER 2 16 0135-641102
8 J2101819 IDLER SHAFT-M 6 0135-641106
9 J6602026A FLAT BELT(MID) 2 HNB-5E, 1536L, 7W
10 J2101817 IDLER SPACER-M 6 0135-641104
11 J6602028A FLAT BELT(ENT) 2 HNB-5E, 1056L, 7W
12 J7153003D PCB GUIDE F.R, R.L 2 0135-641005
13 J7153004D PCB GUIDE F.L, R.R 2 0135-641006
14 J7053212A DUMP BOX 1 0145-641134
15 J7053206A SPLINE-S 2 0145-641085
16 J7053207A SPLINE-M 1 0145-641086
17 J7253009B STOPPER 2 4 0135-641130
18 J7053195B PCB GUIDE F.C 1 J7053195B
19 J7153108A CLAMP FRONT FRAME 1 0145-641003
20 J7153106C CONVERYOR FRONT FRAME 1 J7153106C
21 J2102044 SLIDE GUIDE 2 0135-641125
22 J1301567 LM SLIDE 2 BSP 1025
23 J1301675 BALL BUSH 8 LM 5(M)
24 J2101821 CLAMP SHAFT 4 0135-641111
25 J7153010B ADJUST SHAFT 4 0135-641128
26 J2102048 STOPPER 4 0135-641129
27 J1300463 C-RING [10mm (HOLE)] 8 10MM (HOLE)
