Fl ying Vision Ass'y - 54 - 7 5 6 1 8 2 3 4
Flying Illumination Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7259018A ILLUM 1 A5052
2
J7259020A COMPART 7 ACRYL
3
J7259021A DIFFU-UP 1 DIFFU-UP
4
J7259022A DIFFU-M 7 DIFFU-M
5
J7259023A DIFFU-BOTTOM 1 DIFFU-BOTTOM
6
J7159132A COMPART_BASE 1 A5052
7
J7159161A STAND-C 1 STAND-C
8
J7159162A STAND-RC 1 STAND-RC
9
J7159128B STAND 1 A5052
10
J7159129B STAND-R 1 A5052
11
J7159130A BOTTOM 1 BOTTOM
12
J7159131A PIN 2 PIN
13
J6755003A HALF MIRROR 1 HALF MIRROR
14
J9059011A LIGHT ASS'Y [J9059011A] 1 LIGHT ASS'Y [J9059011A]
15
J7159163A COVER BOTTOM 1 PCB_AXIS
16
J7159125A HOLDER 1 HOLDER
17
J7159127A PRESS 1 PRESS
18
J7159126A BLIND 1 BLIND
19
20
21
22
23
24
25
26
27
- 53 -

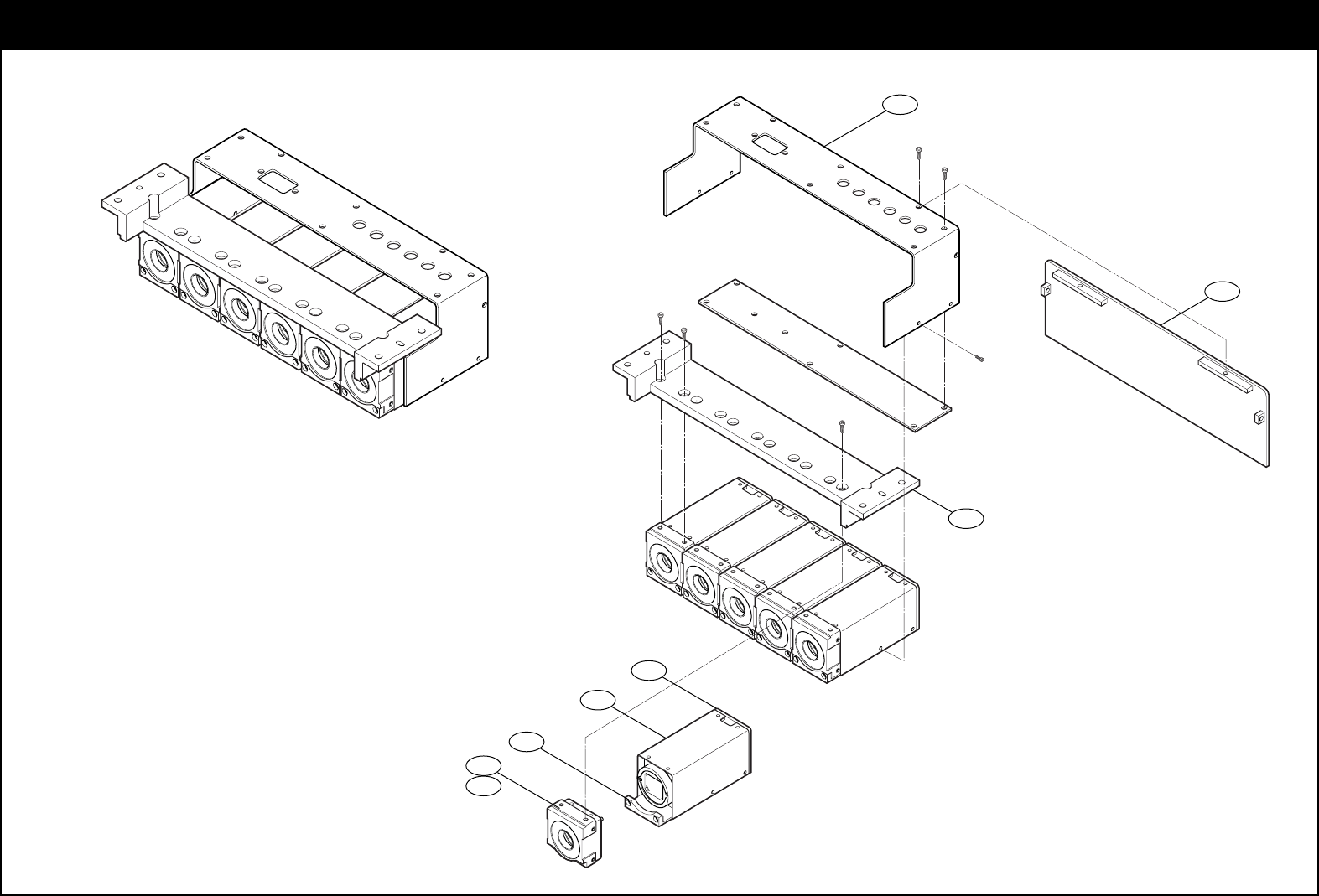

Flying Vision Ass'y
- 54 -
7
5
6
1
8
2
3
4
Flying Vision Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7159151A FRONT PANEL 1 A6063
2
J7159152A VSP_Panel Bottom 1 A6063
3
J7159153A VSP_Panel Up 1 A6063
4
J7159154A VSP_Panel Back 1 A6063
5
J7159155B IO PANEL(CP45FV60) 1 A6063
6
J7159156A BACK PANEL 1 A6063
7
J7159157A GUIDE 1 A6063
8
J7159158A CCD_Holder 1 A6063
9
10
11 J9059010B LENS ASS'Y [J9059010B] 6 J9059010B
J7159133A BARREL_1 1 J7159133A
J7159134A BARREL_2 1 J7159134A
J7159135A BARREL_3 1 J7159135A
J7159136A BARREL_4 1 J7159136A
J7159137A RETAINER_1 1 J7159137A
J7159138A RETAINER_2 1 J7159138A
J7159139A SPACER_1 1 J7159139A
J7159141A MOUNT 1 J7159141A
J7159142A STOP-RING 1 J7159142A
J7159143A GUIDE PIN 2 J7159143A
J7159145A COVER-1 1 J7159145A
J7159146A COVER-2 1 J7159146A
J6739015A F1 LENS 1 J6739015A
J6739016A F2 LENS 1 J6739016A
J6739017A F3 LENS 1 J6739017A
J6739018A F4 LENS 1 J6739018A
