CP45NEO配件手册.pdf - 第44页
Head 2 Ass'y - 42 - 65 79 66 63 60 62 61 4 85 57 78 82 89 84 70 56 88 71 80 69 72 58 59 81 83

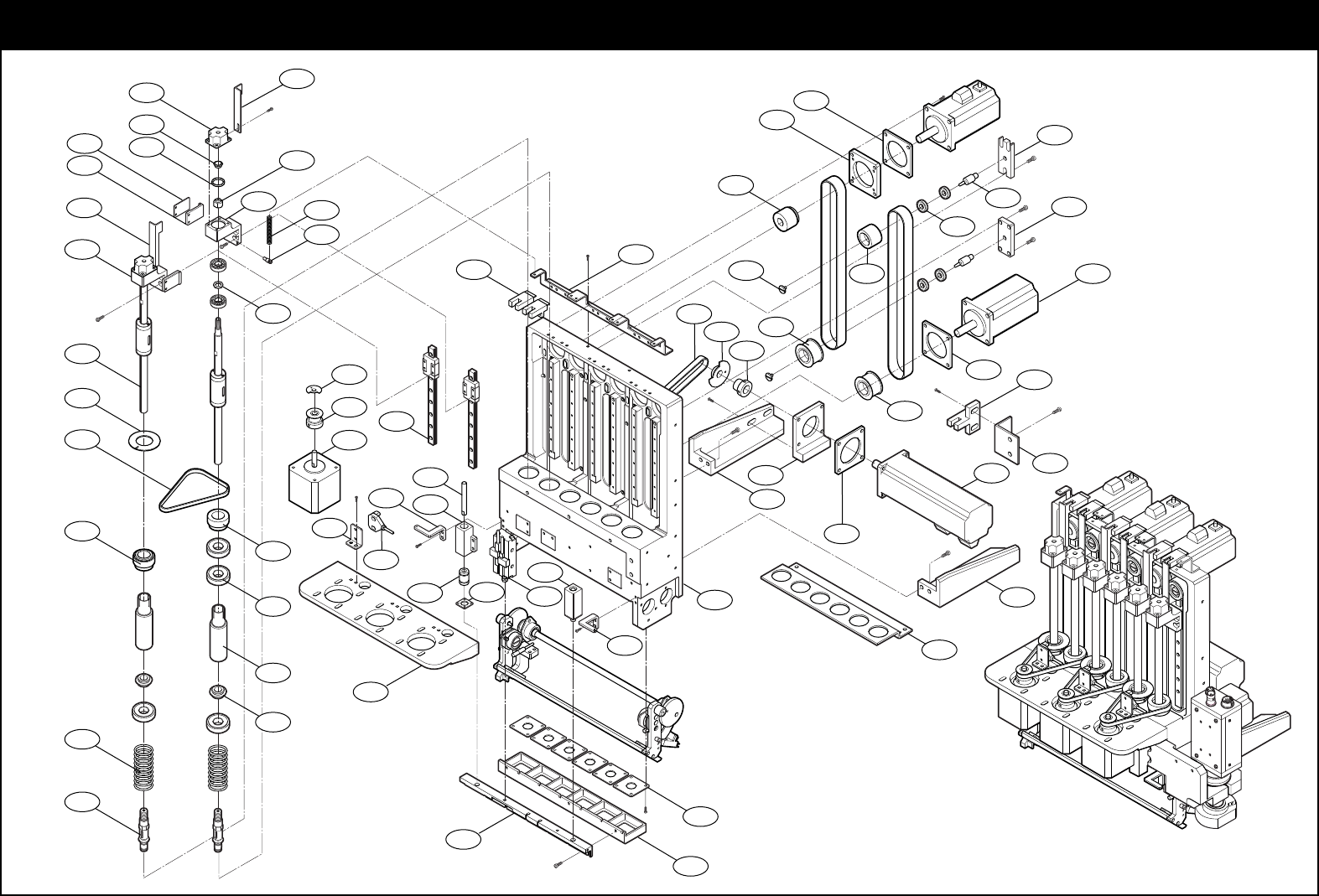

Head 1 Ass'y
- 41 -
39
11
101
28
9
7
46
10
22
30
41
49
76
75
18
98
21
73
100
40
45
6
51
52
35
34
8
5
13
26
25
90
68
29
31
33
17
74
24
87
42
23
48
16
20
12
38
54
99
1
77
14
64
44
19
43
47
93
15
53
3
2
55
27
32
86
99
37
Head 2 Ass'y
- 42 -
65
79
66
63
60
62
61
4
85
57
78
82
89
84
70
56
88
71
80
69
72
58
59
81
83
Head Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7155165F MAIN BODY 1 J7155165F
2
J7055141A SPLINE SHAFT 6 J7055141A
3
J7055142A SPLINE CAP 6 J7055142A
4
J7055143A CAM 2 J7055143A
5
J7155166C SLIDE ARM (LEFT) 3 J7155166C
6
J7155167D JOINT 6 J7155167D
7
J7155168A JOINT 6 J7155168A
8
J7055144C SENSOR DOG 1(Z AXIS) 3 J7055144C
9
J7055145C SENSOR DOG 2(Z AXIS) 3 J7055145C
10
J7155191C SLIDE ARM (RIGHT) 3 J7155191C
11
J7055169B Z SENSOR BRK. 1 J7055169B
12
J6607051A LM GUIDE Z-AXIS 6 1MN7-120-7.5*7.5G3V1
13
J6611008A BALL SPLINE UNIT Z-AXIS 6 LSAGLT8C1R200T1P
14
J7155193A CAMERA BRACKET (RIGHT) 1 J7155193A
15
J7155192A CAMERA BRACKET (LEFT) 1 J7155192A
16
J7155187C ILLUMINATOR GUIDE-LEFT 1 J7155187C
17
J7155189C ILLUMINATOR GUIDE-RIGHT 1 J7155189C
18
J7155198C SIDE LLUMINATOR BRACKET 1 J7155198C
19
J7155199C SIDE LIGHT 1 J7155199C
20
J7055156C ILLUMINATOR SHAFT 2 J7055156C
21
J6601068A BALL BUSH Side LLUMINATOR 2 LM5
22
J7155188A BUSH CAP 2 J7155188A
23
J7055150C SENSOR BKT-THETA 6 J7055150C
24
J3212027A MICRO PHOTO SENSOR THETA-AXIS 6 PM-L24
25
J7155179C PULLEY-THETA-2 3 J7155179C
26
J7155180B SENSOR DOG-THETA 3 J7155180B
27
J7155178A PULLEY-THETA-1 3 J7155178A
- 43 -
