CP45NEO配件手册.pdf - 第32页
X-Frame Ass' y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7154087B LM PLATE1 1 J7154087B 2 J7154094A END BRACKET-X 1 0133-631044-M3 3 J7054091B BRACKET CABLE CHAIN-Y 1 J7054091B 4 J7154109B CABLE TIE-DOWN 3 J71…

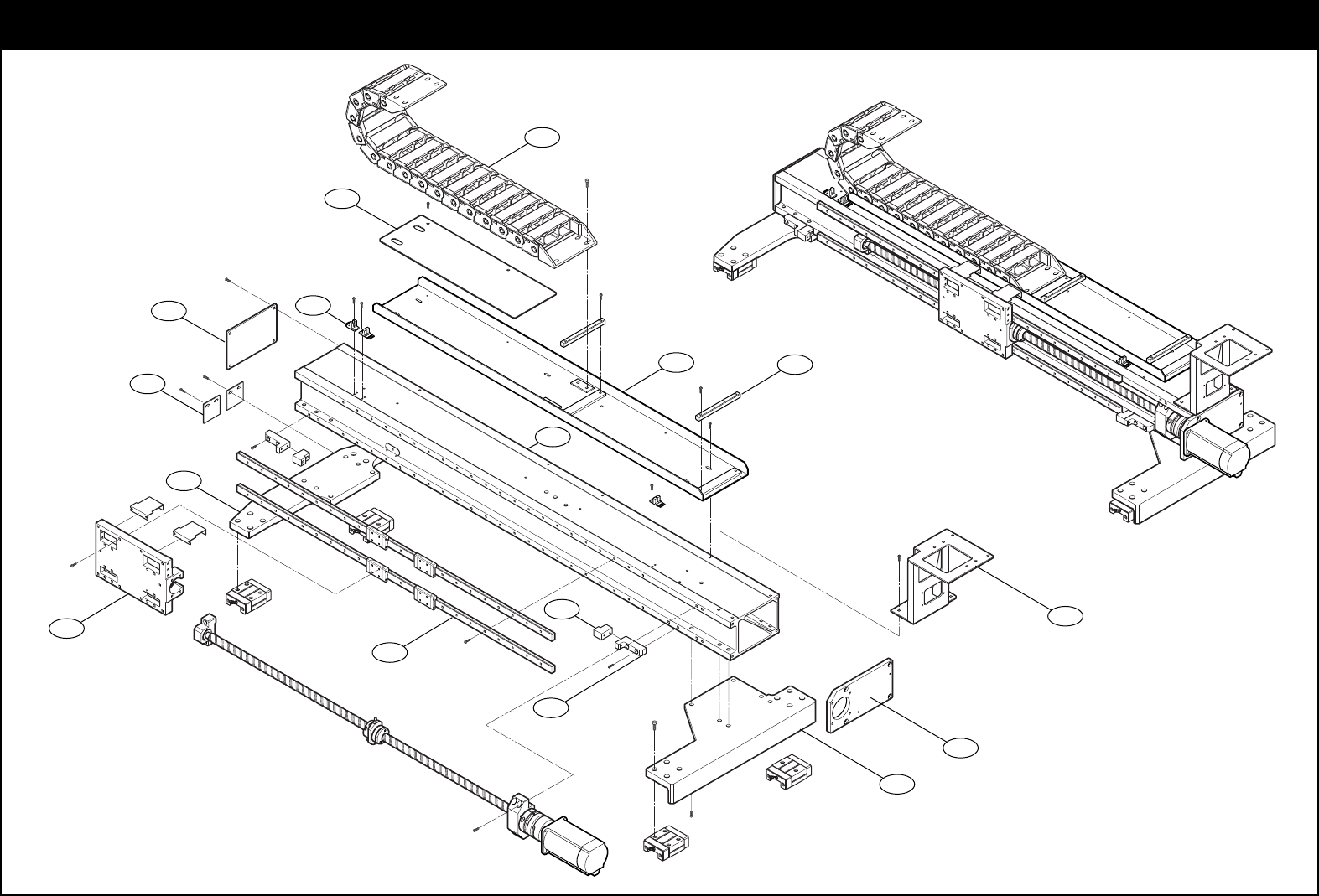

X-Frame Ass'y
- 29 -
3
2
1
6
5
9
4
15
16
17
7
10
11
12
13
8
X-Frame Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J7154087B LM PLATE1
1
J7154087B
2 J7154094A END BRACKET-X
1
0133-631044-M3
3 J7054091B BRACKET CABLE CHAIN-Y
1
J7054091B
4 J7154109B CABLE TIE-DOWN
3
J7154109B
5 J7154091B GUIDE CABLE CHAIN-X
1
J7154091B
6 J6102004A CABLE CHAIN
1
MP3005-R70-15LINK+8SHELF
7 J7254009B CUSHION CABLE CHAIN-X
1
J7254009B
8 J3212022A LIMIT SENSOR
3
EE-SX674
9 J7154092C X FRAME
1
J7154092C
10 J7154095A END PLATE-X
1
0133-631044-1M3
11 J7054088B SENSOR DOG-Y
2
J7054088B
12 J7254008A CUSHION-X
1
0133-631273-1M3
13 J7154088B LM PLATE2
1
J7154088B
14 J7054090B SENSOR DOG-X
2
J7054090B
15 J7154096C HEAD BASE
1
J7154096C
16 J6607028A LM GUIDE 2 LWL15C2R0880BT1P
17 J7154097A BRACKET CUSHION-X 1 0133-631273-2M3
18
19
20
21
22
23
24
25
26
27
- 30 -
X-Ball Screw Ass'y
- 31 -
5
3
4
7
8
6
1
2
