T est Ass'y - 78 - 5 4 2 3 1
Conveyor 4 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
2
3
4
5 J7053196C PCB GUIDE R.C 1 J7053196C
6 J6073000536S C-RING(SHAFT) 3 DIA20
7 J2101799 BEARING NUT-SR 2 0135-641081
8 J1301672 BEARING 3 6804
9 J2101798 BEARING HOUSING-SR 2 0135-641080
10
11 J7053223B BRACKET - SENSOR 1 J7053223B
12 J3211033A PHOTOELECTRIC SENSOR 1 BYD50-DDT
13 J2101793 SPLINE PULLEY 3 0135-641075-P1
14 J7153115A RAIL - SENSOR 1 0145-641151
15 J7053224A BRACKET - RAIL 2 0145-641153
16 J7153109B CLAMP REAR FRAME 1 J7153109B
17 J7153107E CONVEYOR REAR FRAME 1 J7153107E
18 J6701037B EDGE CYLINDER 1 CQ2B12-KRC0137-2D
19
20
21
22
23
24
25
26
27 J7053204A SPLINE BRACKET 1 0145-641072
28 J7053046C SENSOR BRACKET-S 2 J7053046C
- 77 -
Test Ass'y
- 78 -
5
4
2
3
1

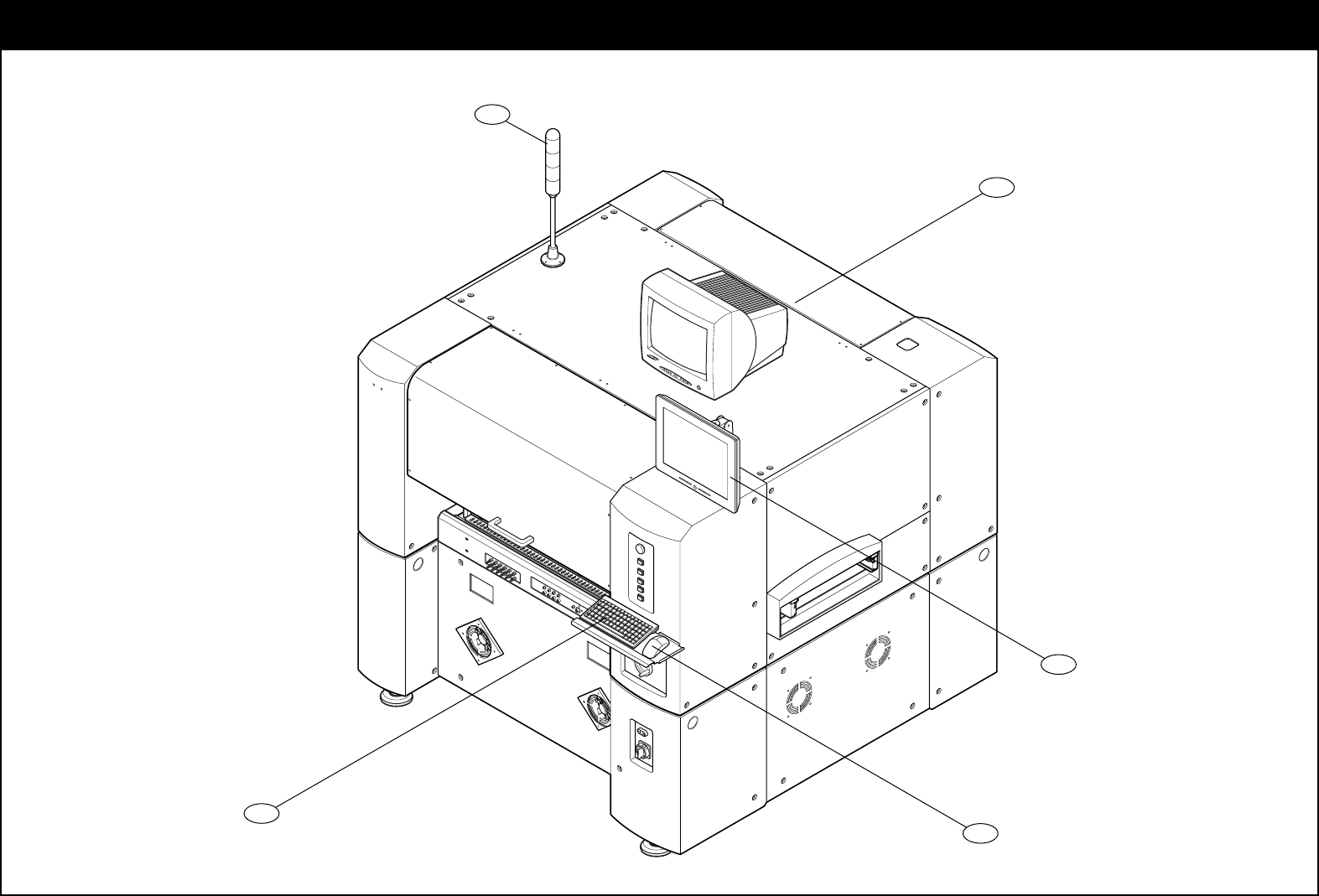

Test Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9080063A TOWER LAMP 1
(RED,BLUE,GREEN-CE)/(RED,YELLOW,GREEN-
2
J5301013A MONITOR 2 SAMTRON 57E
3
J5201003A KEYBOARD 1 SPR-8695
4
J5202013A MOUSE 1 SAMSUNG OPTICAL WHEEL MOUSE OMS3
5
J5301015A MONITOR[15.1",TFT LCD,SAMTRON 51S] 1 15.1",TFT LCD,SAMTRON 51S OPTION
6
J7452033A OPTICAL MOUSE PAD 1 J7452033A
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
