CP45NEO配件手册.pdf - 第35页
Y1-Frame Ass'y - 33 - 1 10 9 8 2 12 11 3 4 5 7
X-Ball Screw Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J3108039A SERVO MOTOR[MSMA042A1A]
1
MSMA042A1A
2 J6612020A COUPLING
1
SFC-040DA(A TYPE)
3 J6601086A SUPPORT UNIT [FK12]
1
FK12
4 J7154089B BEARING BRACKET-X
1
J7154089B
5 J6606018A BALL SCREW
1
16EF 1Q32-931C5F
6 J7154090B BEARING SUPPORT-X 1 J7154090B
7 J7154123B BRACKET CUSHION-X 1 J7154123B
8 J7254023A CUSHION-Y(TSUBAKI) 1 ALX50-12(MISUMI)
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 32 -

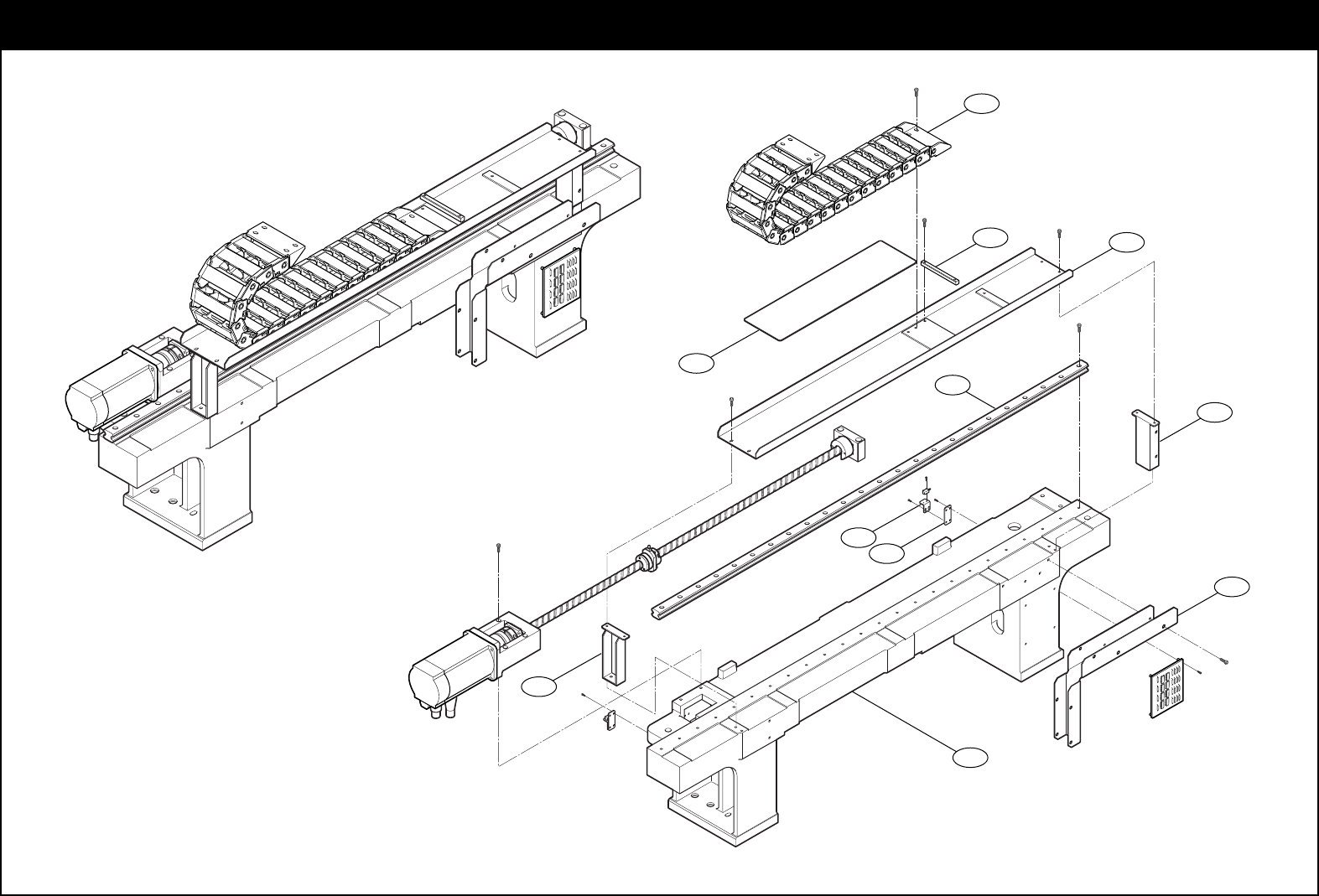

Y1-Frame Ass'y
- 33 -
1
10
9
8
2
12
11
3
4
5
7
Y1-Frame Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J7054097G Y1-FRAME 1 J7054097G
2 J7054094A BRACKET GUIDE REAR-Y 1 0133-631161-2M3
3 J7054093A BRACKET GUIDE FRONT-Y 1 0133-631161-1M3
4 J7154231A BRACKET-FEEDER SENSOR-R 2 J7154231A
5 J7054233A BRACKET2-FEEDER SENSOR 4 J7054233A
6
7 J6607029A LM GUIDE
2
HSR25 R2 UU C1+1420L P
8 J7054092B GUIDE CABLE CHAIN-Y 1 J7054092B
9 J7154109B CABLE TIE-DOWN 3 J7154109B
10 J6102005A CABLE CHAIN
1
MP3005-R70-17LINK+9SHELF
11 J7254010A CUSHOIN CABLE CHAIN-Y 1 0131-631163-M3
12 J7054095C BRACKET CABLE 1 J7054095C
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 34 -
