CP45NEO配件手册.pdf - 第9页
9 7 1 17 10 Co ver 3 Ass'y - 7 - 22 24 26 28 29 27 13 14 5 4 6 8 12 11 18 19 20 23 15 2 16 21 25 3
Cover 2 Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7070020A DOOR-LOWER(FRONT) 1 J7070020A
2
J7070021A DOOR-LOWER(REAR) 1 J7070021A
3
J7070022A COVER L/M LOWER 1 J7070022A
4
J7070023A COVER R/M LOWER 1 J7070023A
5
J7070032A COVER-L.F.L 1 J7070032A
6
J7070033A COVER-R.F.L 1 J7070033A
7
J7070034A COVER-L.R.L 1 J7070034A
8
J7070035A COVER-R.R.L 1 J7070035A
9 J7070084A
COVER LOWER BKT 4
J7070084A
10 J7052310A
COVER-B/L/L 1
0133-612106-M3
11 J7052311A COVER-B/L/R
1
0133-612116-M3
12 FAN
13 FAN FILTER
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 6 -
9
7 1
17
10

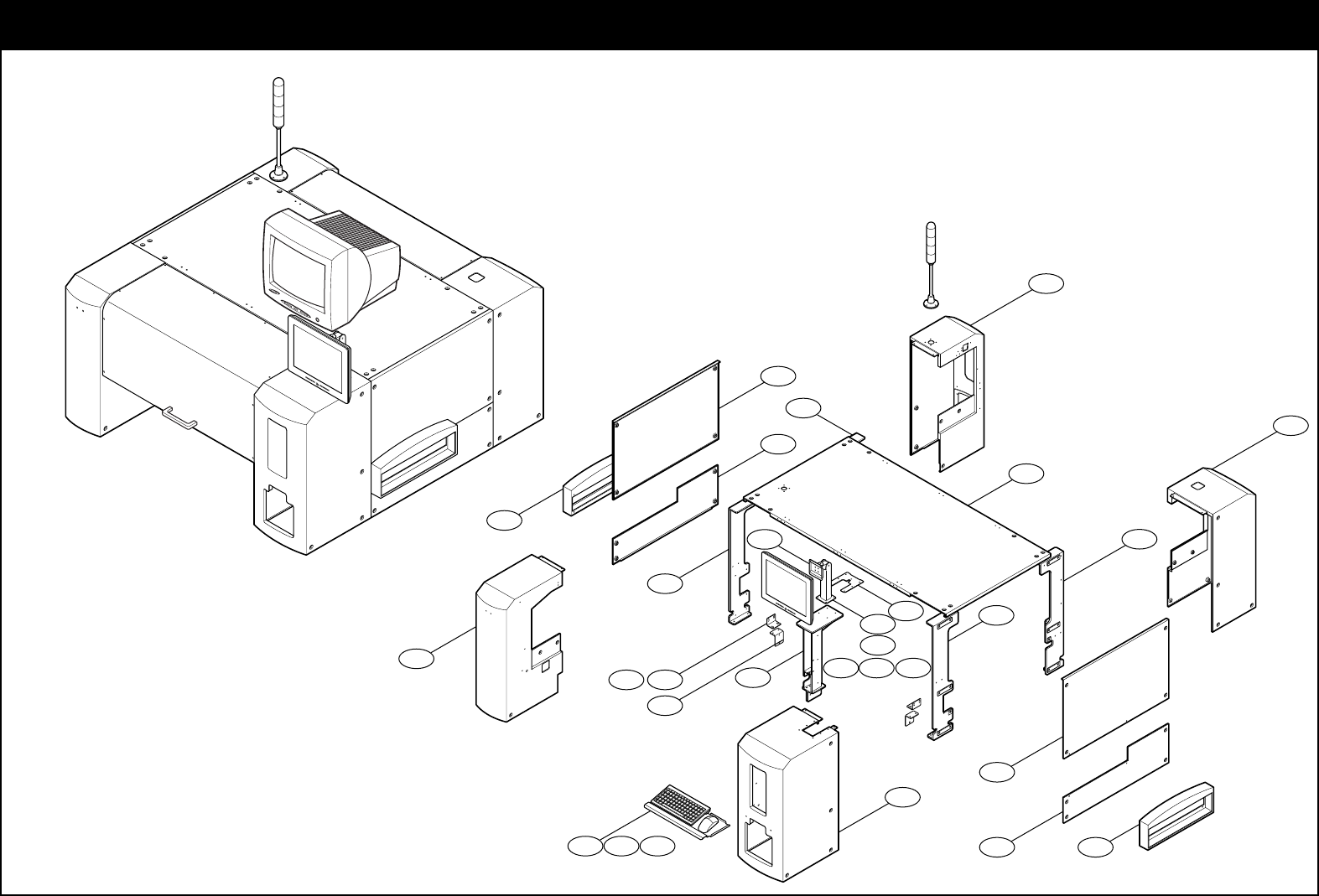

Cover 3 Ass'y
- 7 -
22
24
26
28 2927
13
14
5
4
6
8
12
11
18
1920
23
15
2
16 21
25
3
Cover 3 Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7070011A CONVEYOR COVER 1 J7070011A
2
J7070012A COVER FRAME L.F 1 J7070012A
3
J7070013A COVER FRAME L.R 1 J7070013A
4
J7070014A COVER FRAME R.F 1 J7070014A
5
J7070015A COVER FRAME R.R 1 J7070015A
6
J7070024A COVER L.M.M 1 J7070024A
7
J7070025A COVER R.M.M 1 J7070025A
8
J7070026A COVER-SIDE M.U.L 1 J7070026A
9
J7070027A COVER-SIDE M.U.R 1 J7070027A
10
J7070028A COVER-L.F.U 1 J7070028A
11
J7070029A COVER-R.F.U 1 J7070029A
12
J7070030A COVER-L.R.U 1 J7070030A
13
J7070031A COVER-R.R.U 1 J7070031A
14
J7070036A COVER-M.M.U 1 J7070036A
15
J7070037A KEYBOARD BASE 1 J7070037A
16
J7070038A KEYBOARD BASE BKT 1 J7070038A
17
J7070054A CONVEYOR COVER LEFT 1 J7070054A
18
J7070066A COVER FRAME BKT 1 3 J7070066A
19
J7070067A COVER FRAME BKT 2 4 J7070067A
20
J7070068A COVER FRAME BKT 3 1 J7070068A
21
J7070075A KEYBOARD CABLE BOX 1 J7070075A
22
J7070008A LCD MONITOR COVER 1 J7070008A
23
J7070010A LCD MONITOR FRAME 1 J7070010A
24
J7070071A LCD MONITOR SUPPORT 1 J7070071A
25
J7052764A MONITOR CAP BRACKET 1 J7052764A
26
J7052765A MONITOR R-GUIDE 1 J7052765A
27
J7052766A MONITOR CLAMP PLATE 1 J7052766A
- 8 -
