Head Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7155165F MAIN BODY 1 J7155165F 2 J7055141A SPLINE SHAFT 6 J7055141A 3 J7055142A SPLINE CAP 6 J7055142A 4 J7055143A CAM 2 J7055143A 5 J7155166C SLIDE ARM (LE…

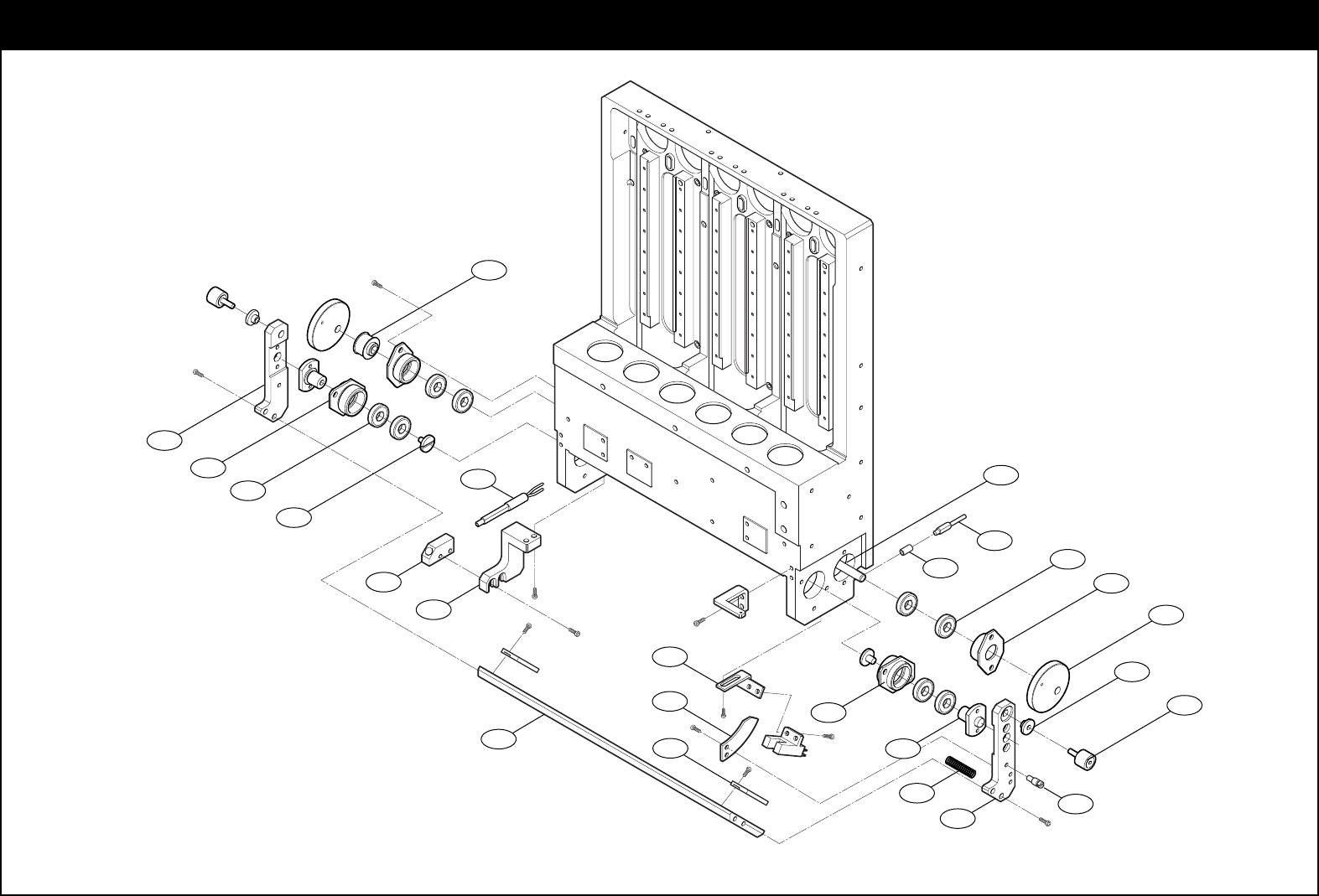

Head 2 Ass'y
- 42 -
65
79
66
63
60
62
61
4
85
57
78
82
89
84
70
56
88
71
80
69
72
58
59
81
83
Head Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7155165F MAIN BODY 1 J7155165F
2
J7055141A SPLINE SHAFT 6 J7055141A
3
J7055142A SPLINE CAP 6 J7055142A
4
J7055143A CAM 2 J7055143A
5
J7155166C SLIDE ARM (LEFT) 3 J7155166C
6
J7155167D JOINT 6 J7155167D
7
J7155168A JOINT 6 J7155168A
8
J7055144C SENSOR DOG 1(Z AXIS) 3 J7055144C
9
J7055145C SENSOR DOG 2(Z AXIS) 3 J7055145C
10
J7155191C SLIDE ARM (RIGHT) 3 J7155191C
11
J7055169B Z SENSOR BRK. 1 J7055169B
12
J6607051A LM GUIDE Z-AXIS 6 1MN7-120-7.5*7.5G3V1
13
J6611008A BALL SPLINE UNIT Z-AXIS 6 LSAGLT8C1R200T1P
14
J7155193A CAMERA BRACKET (RIGHT) 1 J7155193A
15
J7155192A CAMERA BRACKET (LEFT) 1 J7155192A
16
J7155187C ILLUMINATOR GUIDE-LEFT 1 J7155187C
17
J7155189C ILLUMINATOR GUIDE-RIGHT 1 J7155189C
18
J7155198C SIDE LLUMINATOR BRACKET 1 J7155198C
19
J7155199C SIDE LIGHT 1 J7155199C
20
J7055156C ILLUMINATOR SHAFT 2 J7055156C
21
J6601068A BALL BUSH Side LLUMINATOR 2 LM5
22
J7155188A BUSH CAP 2 J7155188A
23
J7055150C SENSOR BKT-THETA 6 J7055150C
24
J3212027A MICRO PHOTO SENSOR THETA-AXIS 6 PM-L24
25
J7155179C PULLEY-THETA-2 3 J7155179C
26
J7155180B SENSOR DOG-THETA 3 J7155180B
27
J7155178A PULLEY-THETA-1 3 J7155178A
- 43 -
Head Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
J7155247B MOTOR PULLEY-THETA 3 J7155247B
29
J6602024A TMING BELT THETA-AXIS 3 208-2GT-4
30
J3104012A STEP MOTOR [KH42JM2-851] 3 KH42JM2-851
31
J7155176B PULLEY-Z AXIS-UPPER1 3 J7155176B
32
J7155177B PULLEY-Z AXIS-UPPER2 3 J7155177B
33
J7055149B PULLEY PIN SCREW 6 J7055149B
34
J7055158A BELT CLAMP-UNDER 6 J7055158A
35
J7055159A BELT CLAMP-OVER 6 J7055159A
36
J6602023A TIMING BELT Z-AXIS 6 440-2GT-12
37
J7055147A PIN 6 J7055147A
38
J7055148A PULLEY PIN 6 J7055148A
39
J7155172B TENSION PLATE-UPPER 3 J7155172B
40
J7155171B MOTOR BRACKET Z-1 3 J7155171B
41
J7155173A TENSION PLATE-LOWER 3 J7155173A
42
J7155174B PULLEY-Z AXIS-LOWER1 3 J7155174B
43 J7155175B PULLEY-Z AXIS-LOWER2 3 J7155175B
44
J7155169B SPRING CAP 6 J7155169B
45
J1300883 SENSOR Z-AXIS 7 EE-SX673 (OMRON)
46
J7055167C Z SPRING 6 J7055167C
47
J7055269A ARM SPRING BRK(R) 1 J7055269A
48
J7055268A ARM SPRING BRK(L) 1 J7055268A
49
J1301273 SERVO MOTOR Z-AXIS 6 P30B04005DXS00
50
J7155194A STOPPER 12 J7155194A
51
J6304001A SEAL, V-RONG 0.20ID 6 V-6A NIT 562
52
J6049000550 WAVY WASHER THETA-AXIS 6 SSR-0062 S17
53
J7055146A BEARING SPACER 6 J7055146A
54
J6601047A BALL BEARING THETA-AXIS 12 696ZZ
- 44 -
