Conveyor 1 Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7053198A SUPPORT-WIDE ADJUST 2 J7053198A 2 J2102045 COVER SUPPORT 1 1 0135-641126 3 J6607025A LM GUIDE (WIDTH) 2 SBG20-SL-1-460-N 4 J7053197A FIX STAN…

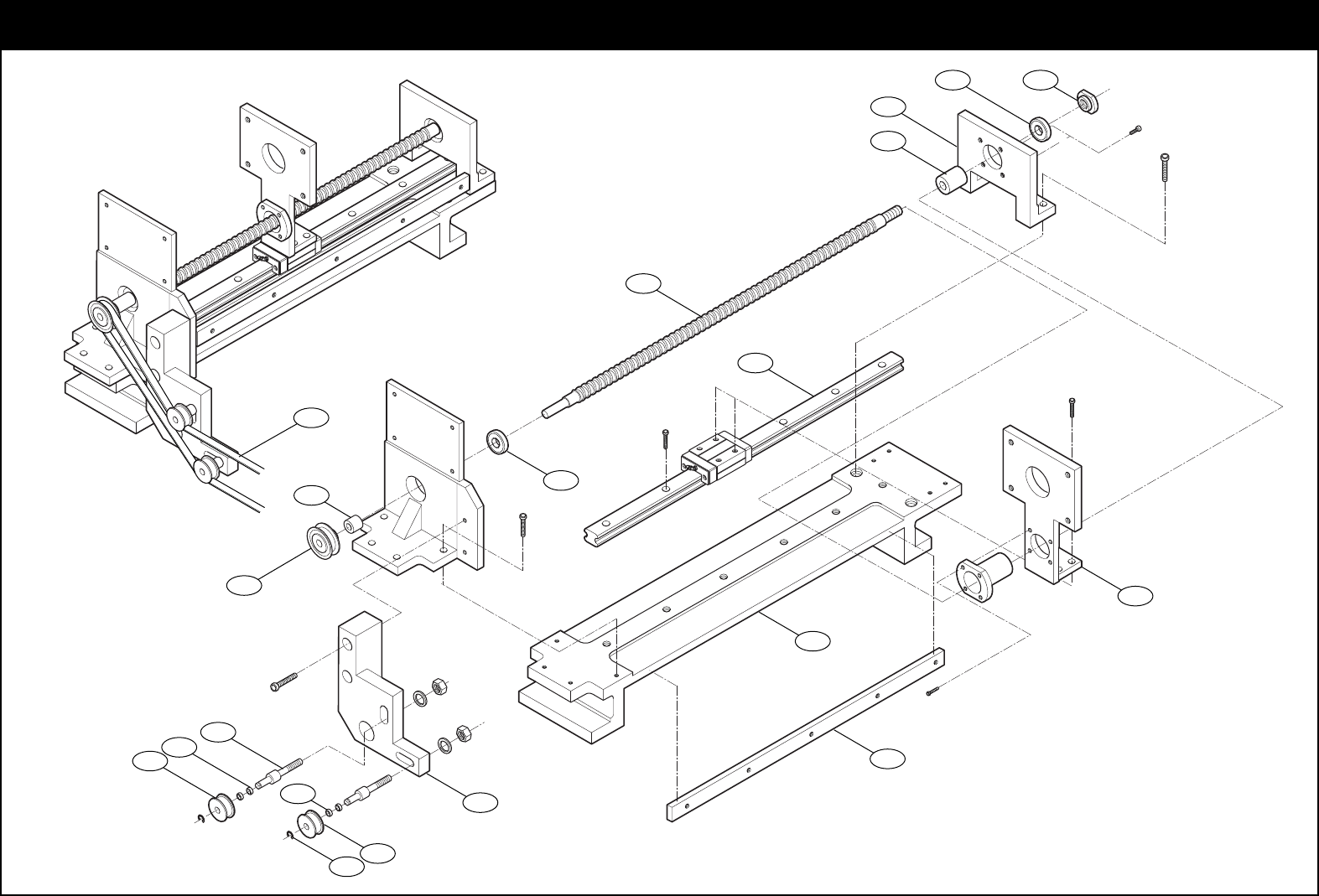

Conveyor 1 Ass'y
- 58 -
16
15
12
7
9
2
1
19
11
17
14
13
10
6
3
18
5
7 8
14
Conveyor 1 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7053198A SUPPORT-WIDE ADJUST 2 J7053198A
2
J2102045 COVER SUPPORT 1 1 0135-641126
3
J6607025A LM GUIDE (WIDTH) 2 SBG20-SL-1-460-N
4
J7053197A FIX STAND (LEFT) 1 0145-641010
5
J7053201A SCREW STAND 2 0145-641014
6
J6614002A LEAD SCREW (WIDTH) 2 0145-641022
7
J1300509 BALL BEARING 4 6000ZZ
8
J7053194A BEARING NUT 2 0131-641016
9
J7053200A MOVE STAND 2 J7053200A
10
J2101751 STOPPER WIDTH 1 0135-641025
11
J6609012A PULLEY - WIDTH 2 0145-641135
12
J2101748 SPROCKET PLATE(L) 1 0135-641021
13
J7053203A IDLER SHAFT 4 0145-641019
14
J6601091A DU BUSH 4 MB0606DU
15
J7053222A IDLER 2 0145-641149
16
J1300052 E-RING 4 DIA6
17
J6609013A PULLEY - IDLER 2 0145-641136
18
J2101750 STOPPER WIDTH 2 0135-641024
19
J6602029A TIMING BELT 1 976XL025
20
21
22
23
24
25
26
27
- 59 -
R_Conveyor 1 Ass'y
- 60 -
4
14
15
5
9
2
1
21
19
11
12
13
17
16
14
10
7
3
18
20
7
6
